Spring Eye Spacers for All Pro, Deaver springs Tacoma 2005-2023

Spring Eye Spacers for All Pro, Deaver springs Tacoma 2005-2023

Regular price $12.00 USD
Regular price Sale price $12.00 USD
Sale Sold out
Shipping calculated at checkout.
Amount

25 in stock

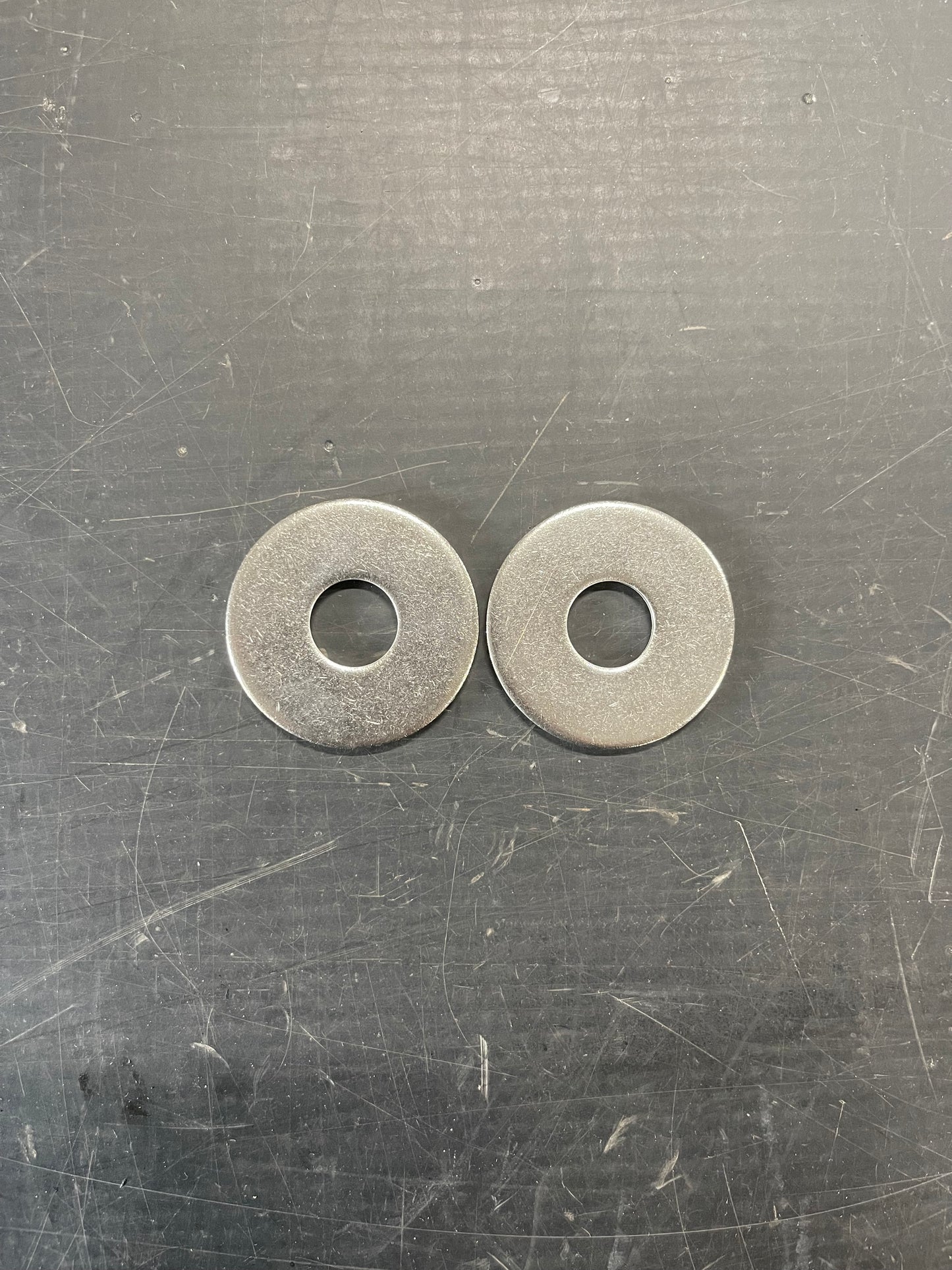

These spacers are recommended to fix the issue with certain brand springs such as All Pro or Deaver, since currently do supply or have supplied in the past narrow bushings, usually measuring 2.75" wide.

Stock hanger and spring bushing dimension: 2.875"

Spacers are 0.125" thick stainless steel (0.125" + 2.75" = 2.875")

Use 1 spacer per spring eye, placed on the outboard side of your springs.

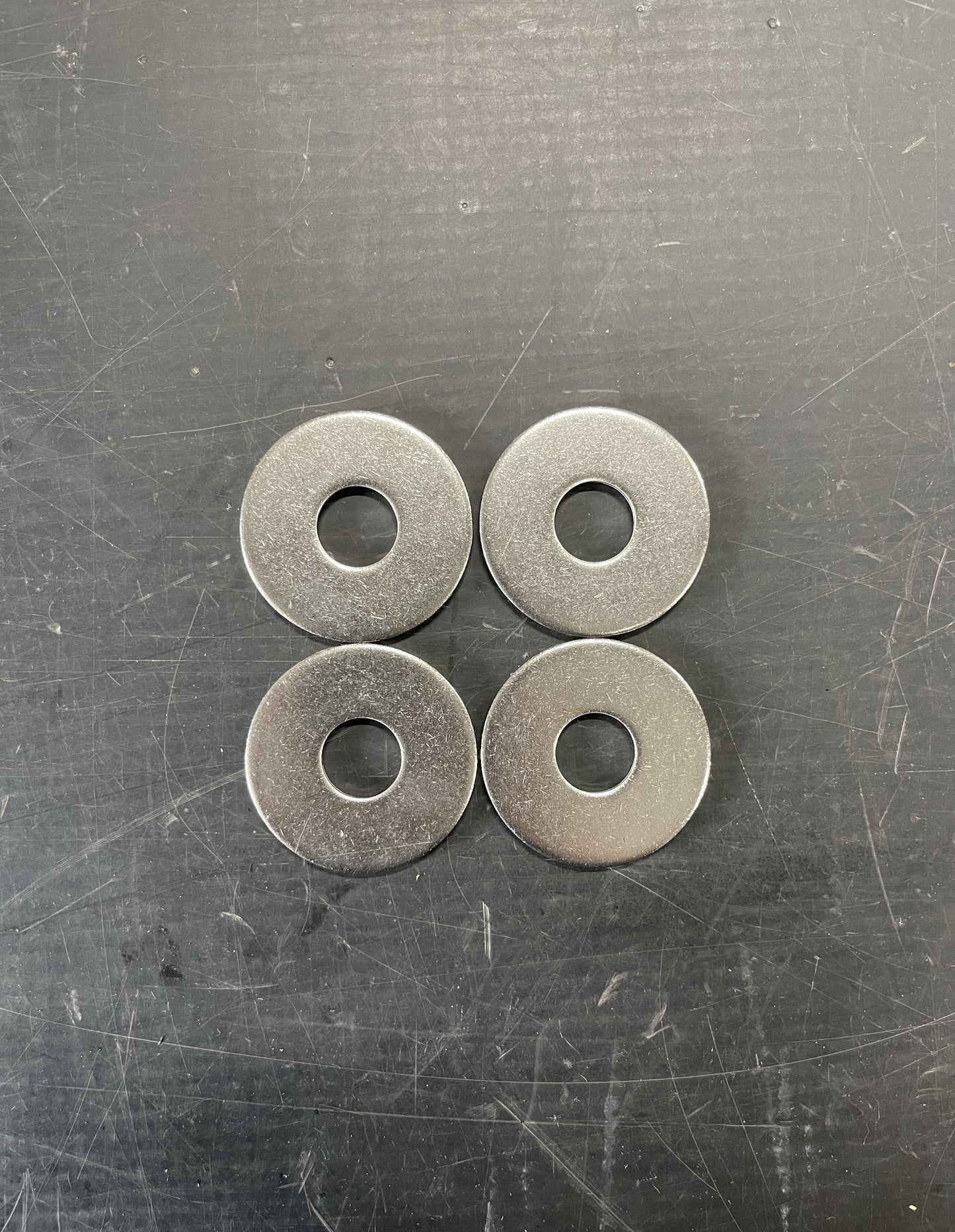

1 pair for just your rear spring eyes OR 2 pair for front & rear spring eyes.

Product Overview

Product Fitment Notes

2005-2023 Tacoma DC/SB
Leaf Pack Estimated Lift Amount AG Leafs Axle-Tube-to-Frame-Bottom
Stock 3/1-stock weight 0in 8.25in
Archive MD - 0lbs 3.25in 11.5in
Archive MD - 300lbs 2.5in 10.75in
Archive MD - 600lbs 2in 10.25in
Archive HD - 600lbs 3in 11.25in
Archive HD - 1250lbs 2in 10.25in
Archive XD - 1250lbs 3in 11.25in
Archive XD - 1750lbs 2.5in 10.75in
*Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR.  The vehicle owner assumes all risk when exceeding Toyota's GVWR or GAWR.

Recommended Shocks (Confirmed Fit & Performance)

Shock Brand Part Number
Accutune Fox Factory RR 2.5x12 Fox 980-02-102
Accutune Fox Factory RR 2.5x14 Fox 980-02-103
AccuTune Fox Factory RR DSC 2.5x12 Fox 980-06-102-SRT
AccuTune Fox Factory RR DSC 2.5x14 Fox 980-06-103-SRT
AccuTune King RR 2.5x12 King King PR2512-SS
AccuTune King RR 2.5x14 King King PR2514-SS
AccuTune King RR 2.5x12 w/ adjuster   King King PR2512-SS-A
AccuTune King RR 2.5x14 w/ adjuster King  King PR2514-SS-A
ADS Smooth Body 2.5x12 ADS 250-SBR12-W00
ADS Smooth Body 2.5x12 w/adjuster ADS 250-SBR12-WA0
*If using HD Springs or XD 12in is best
*For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel Fittings/Spacers
12-14in Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer or Equivlent Out Board
Offset Visualizer App
