Ultimate Off Road Package First Gen Tundra 2000-2006 - 12" Travel
Ultimate Off Road Package First Gen Tundra 2000-2006 - 12" Travel
Couldn't load pickup availability
Share

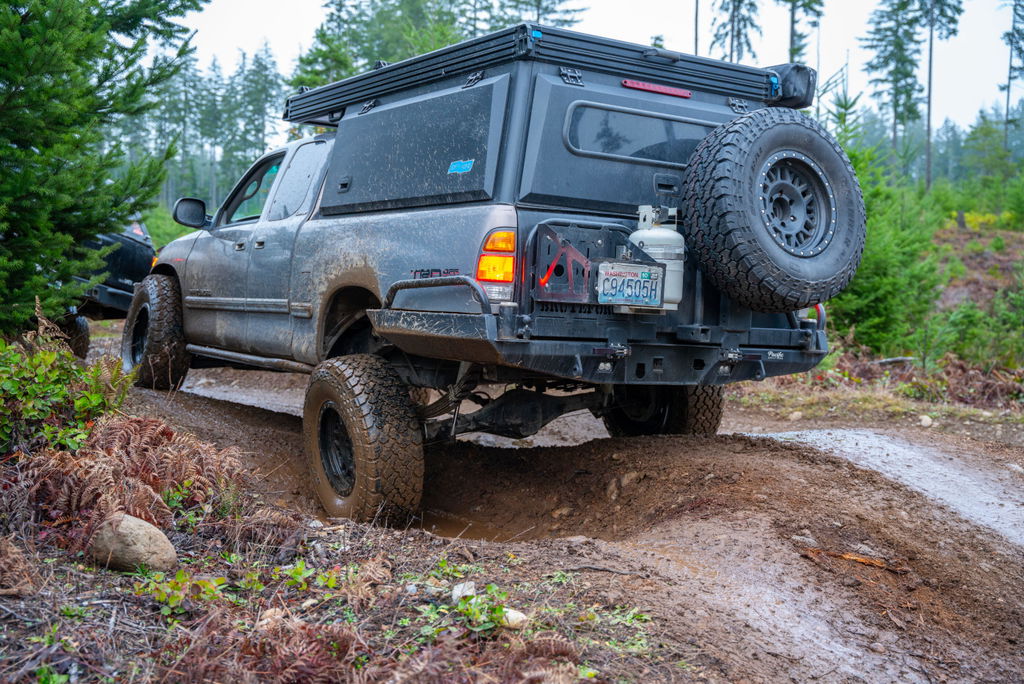

The Ultimate OR Package is designed as a system that transforms your Tundra into a capable and composed rig, with better ride quality every mile, and up to 50% more suspension travel. It increases your ability to haul loads confidently. Additional lift allows for more up travel to soak up rough terrain, and increase ground clearance. Choose this system to guarantee superior fit, function and capability of your vehicle. Made in USA

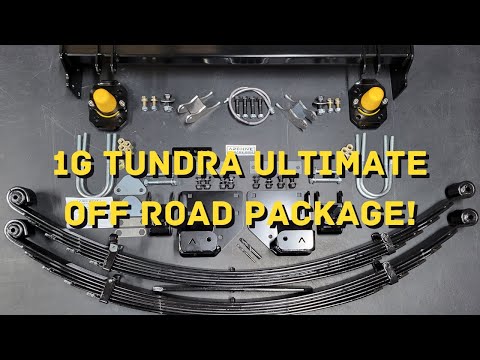

See video of package: https://youtu.be/l4XbvfjxgN8

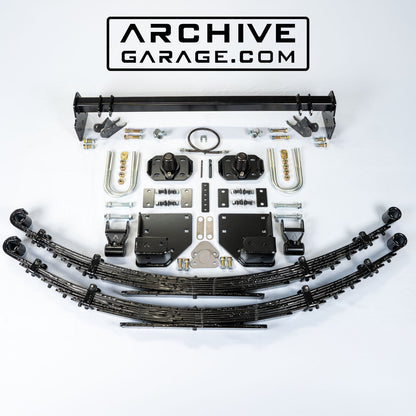

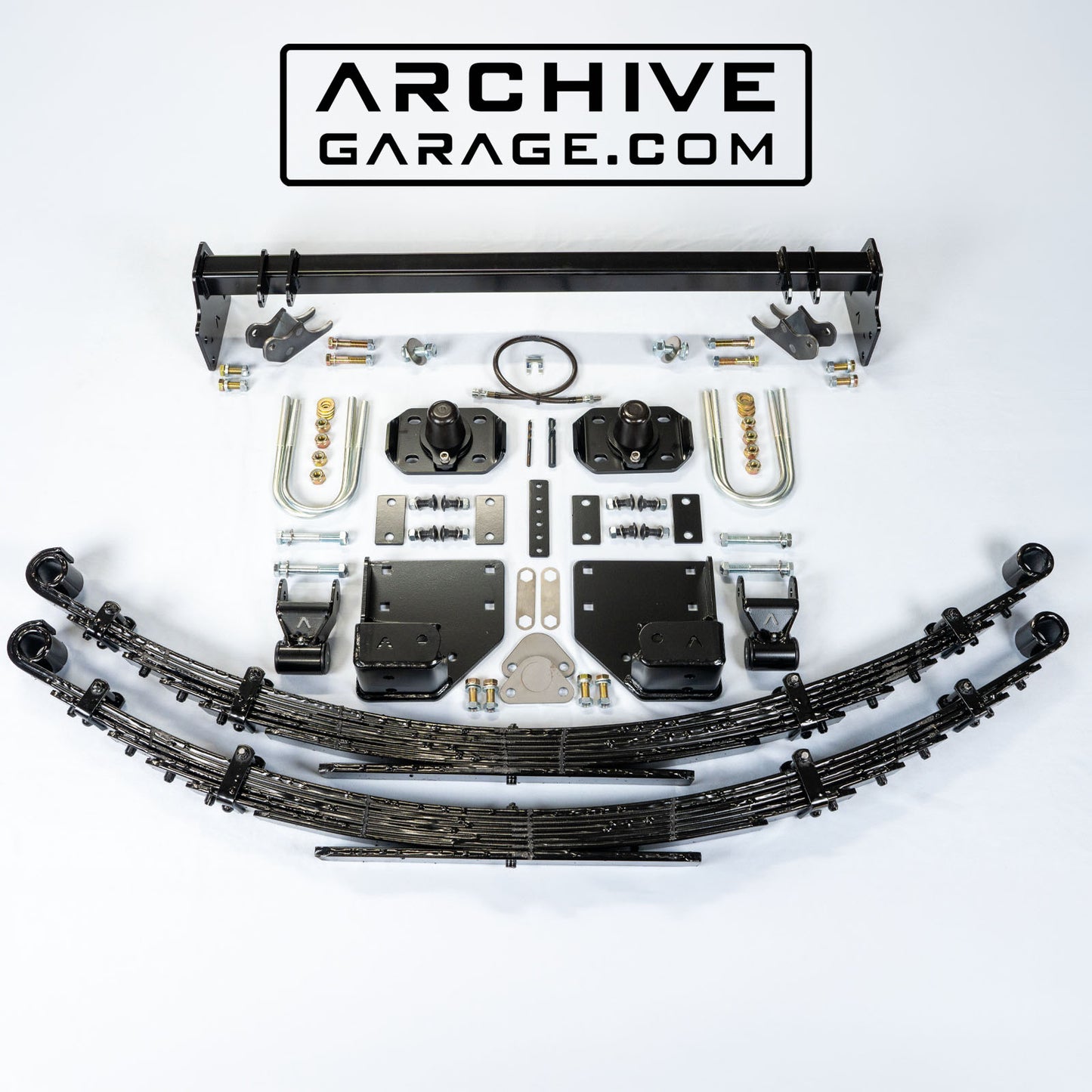

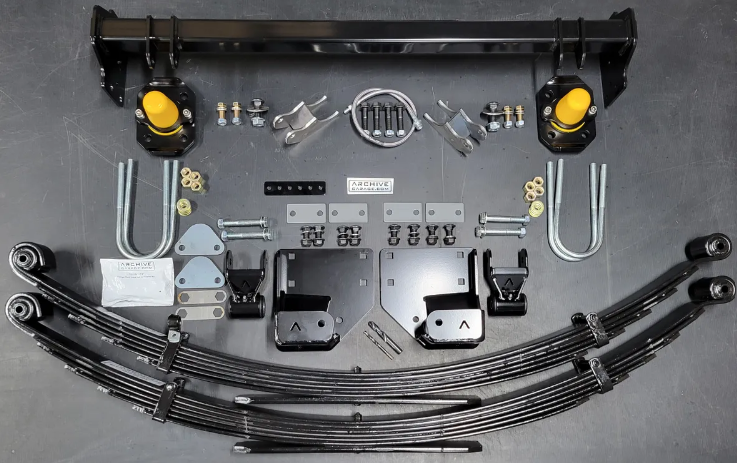

This package includes the following items:
Tundra Hammer Hangers + 4.0" shackles + DIY Cross Tube Plates
Tundra 1st Gen shock relocation kit with brake hose included
U-bolt flip kit w/ Archive bumps (Std density for MD springs/ Hi density for HD)

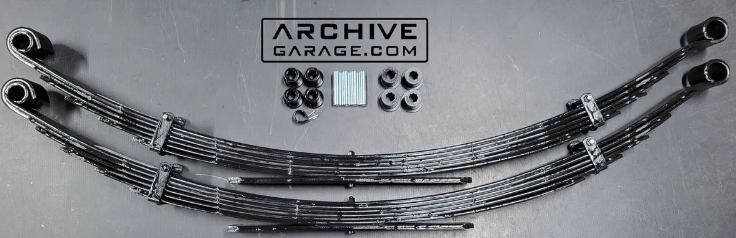

AES-Shackleton MD or HD springs *See Product Fitment Tab for lift heights.
Brake adjuster extension plate
Product Fitment Notes
Product Fitment Notes
*Disclaimer: Archive Garage does not recommend exceeding Toyota's GVWR. The vehicle owner assumes all risk when exceeding Toyota's GVWR or GAWR.
| 2000-2006 Tundra AC/DC 4x4 | Archive Shackleton Packs | |
| Pack w/ Added Rear Weight | Estimated Lift Amount | Axle-Tube-to-Frame-Bot |
| Stock 3/1 - 0lbs | 0 | 9.5 |
| Archive MD - 0lbs | 2.0 | 11.5 |
| Archive MD - 750lbs | 1.0 | 10.5 |
| Archive HD - 0lbs | 2.5 | 12.0 |
| Archive HD - 500lbs | 2.0 | 11.5 |
| Archive HD - 1250lbs | 1.5 | 11.0 |
| Archive XD - 1250lbs | 2.5 | 12.5 |
| Archive XD - 1750lbs | 1.5 | 11.0 |
Shipping
Shipping
Free shipping to 48 states ONLY.
AK & HI extra $300 (leaf springs & Shock Relo.)
Canada must contact us before buying.

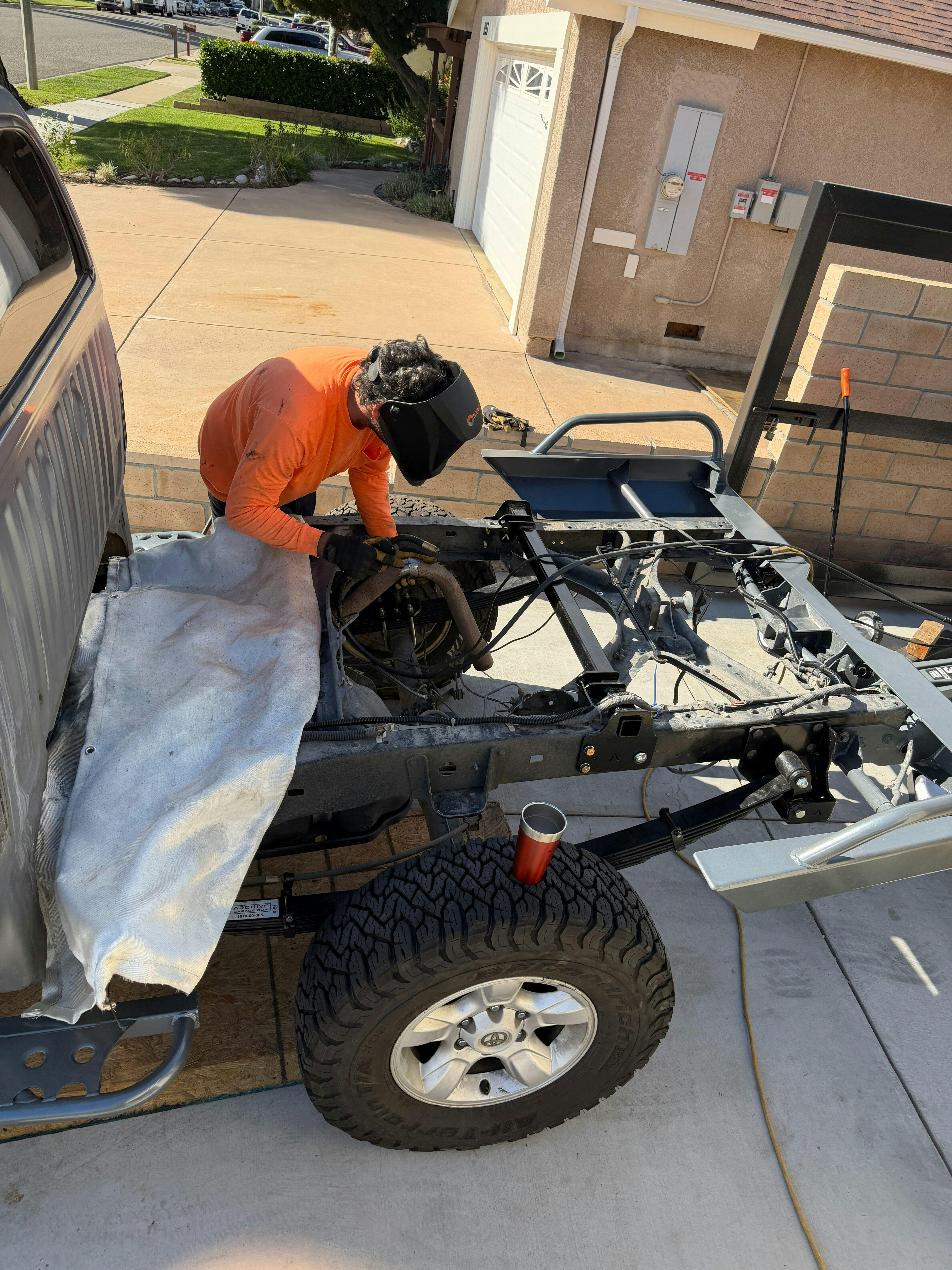

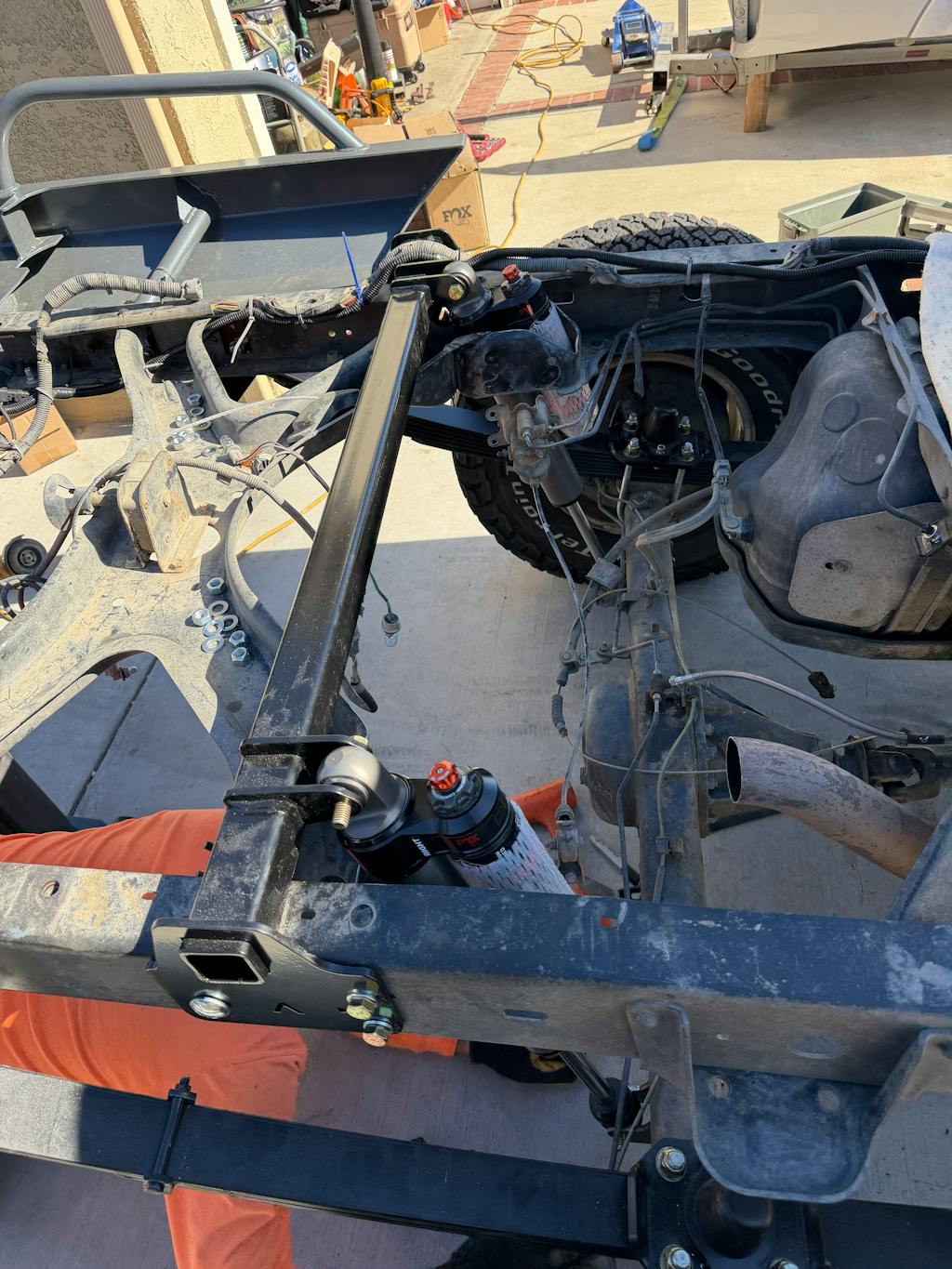

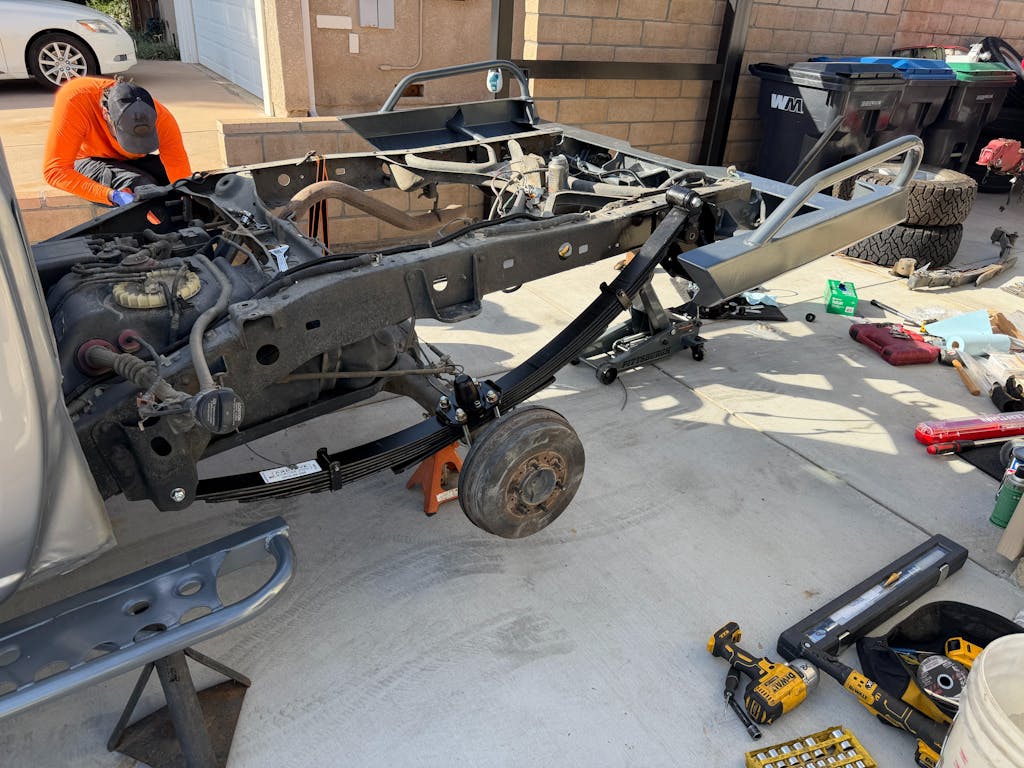

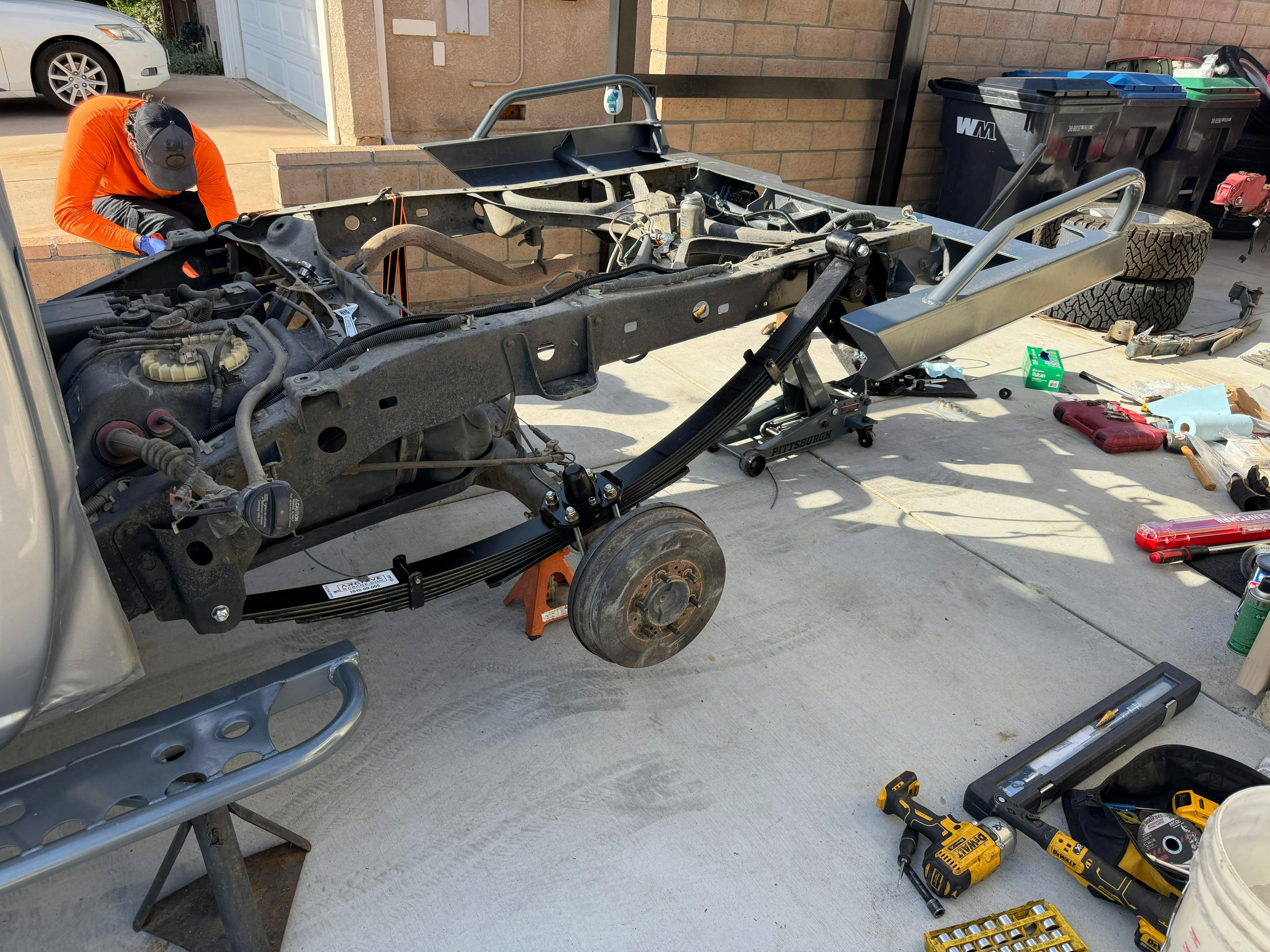

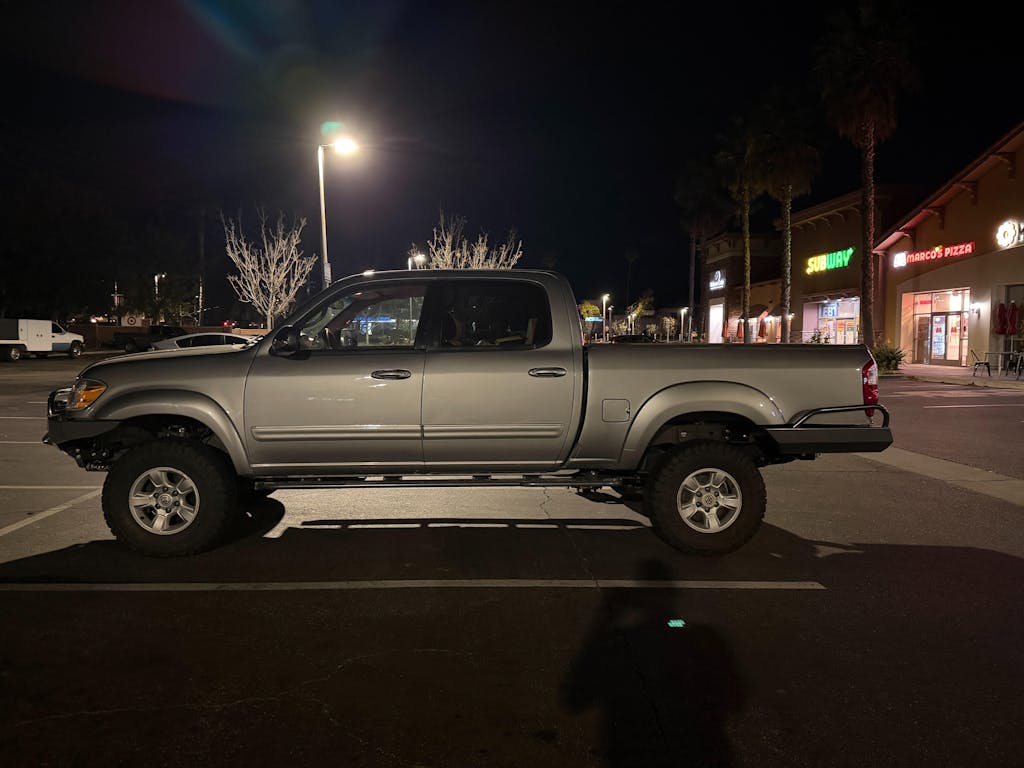

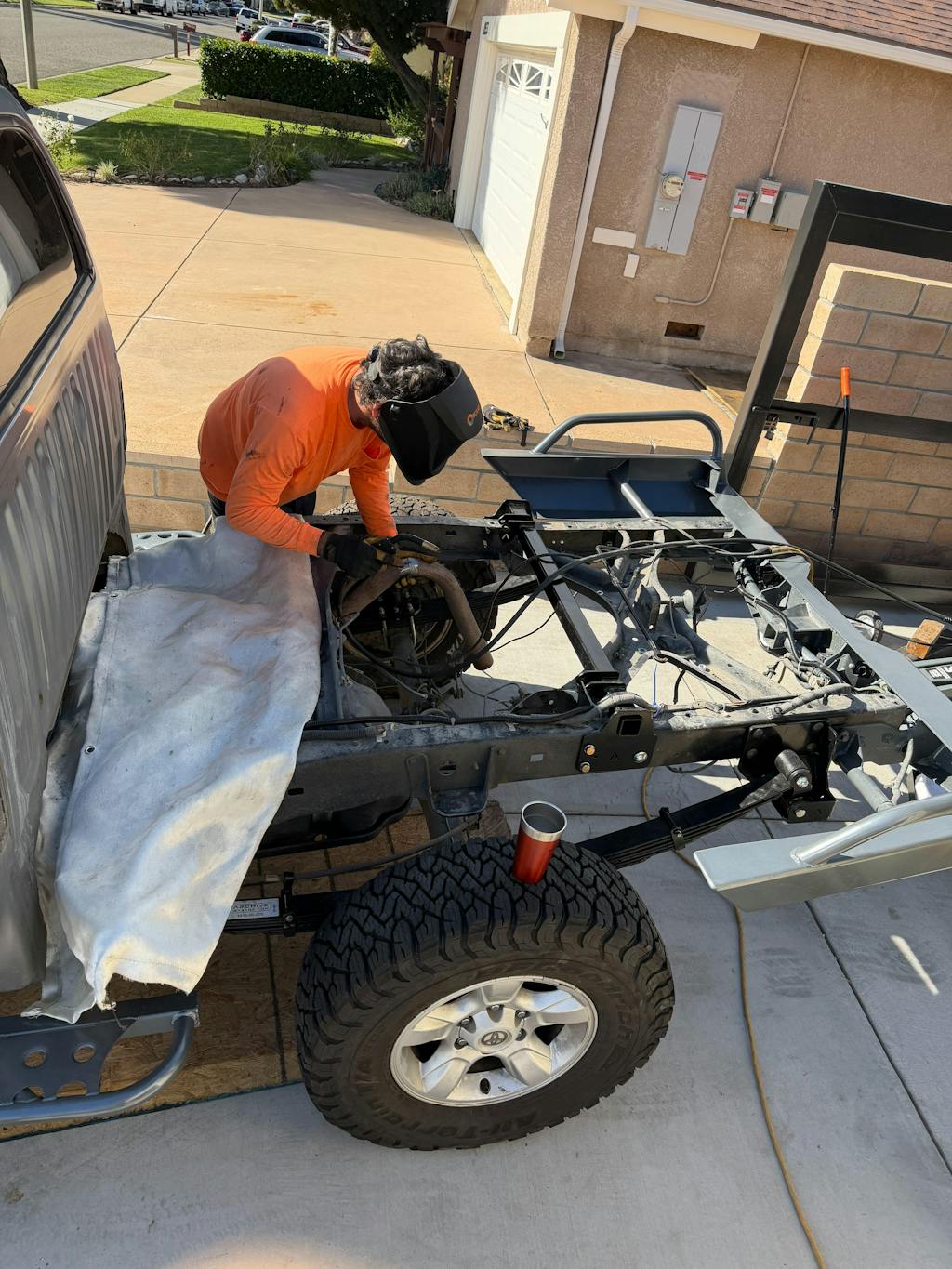

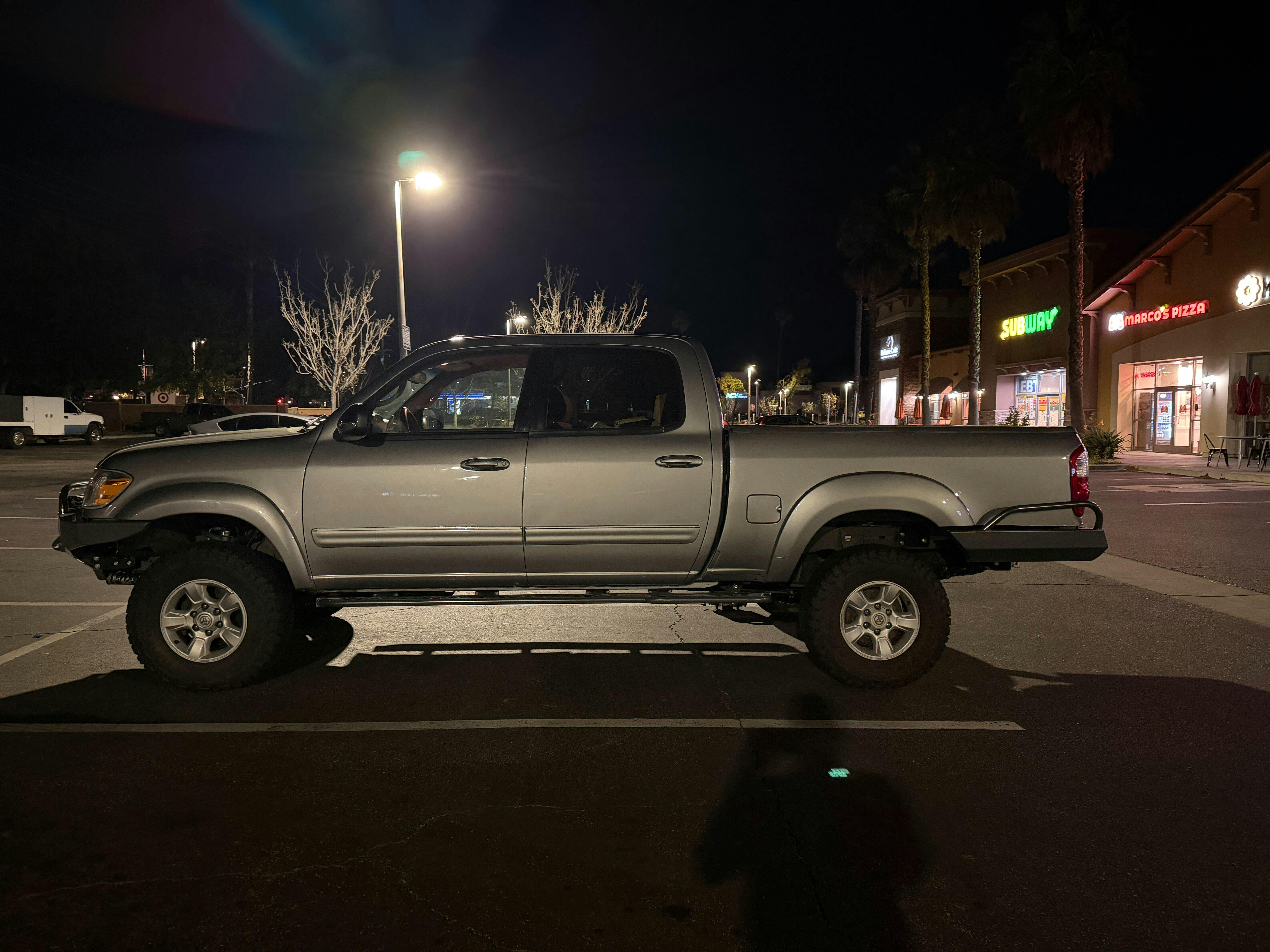

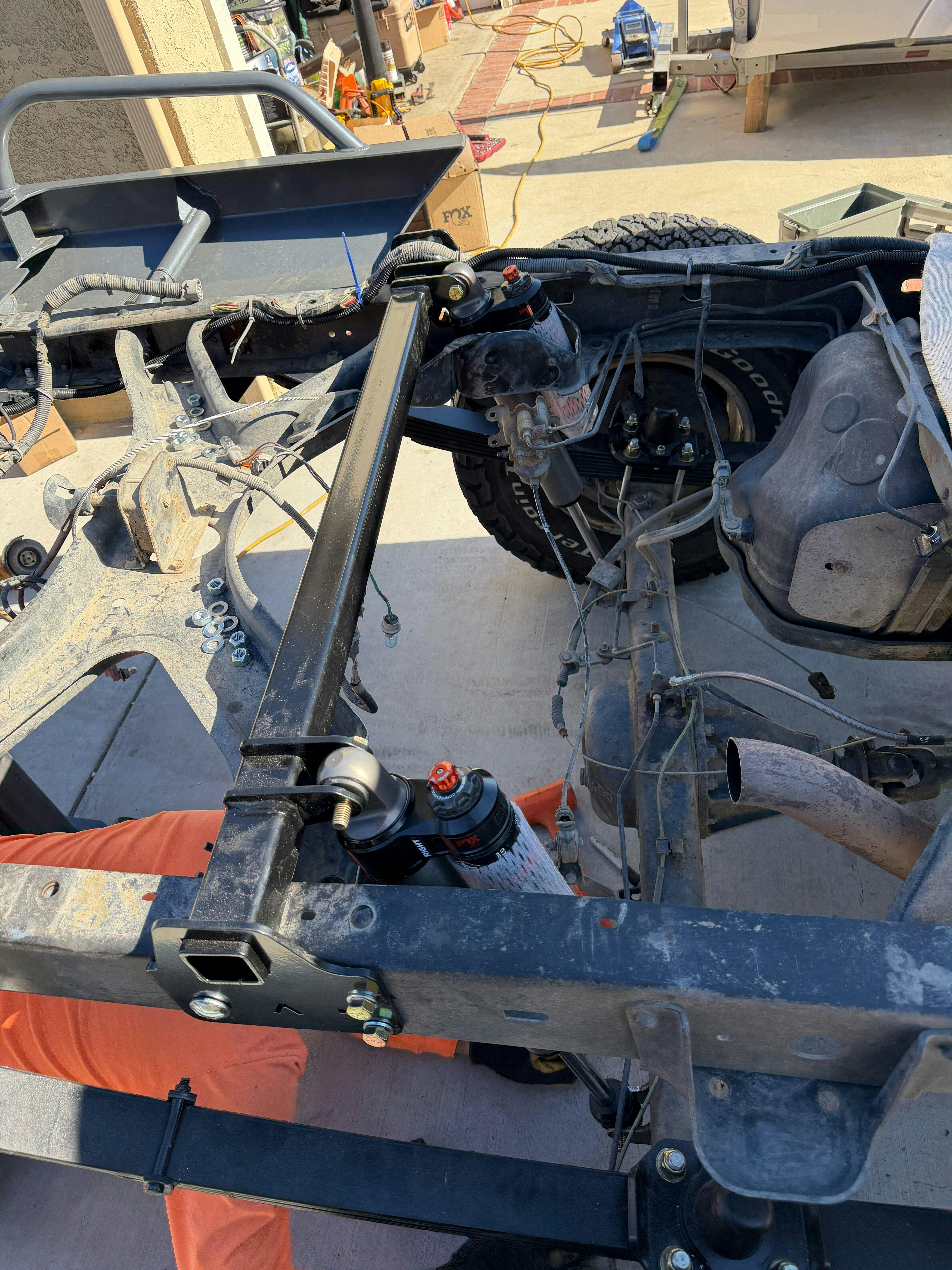

My build started in the front with everything Total Chaos makes for the 1st gen Tundra paired with fox 2.5 coilover shocks from AccuTune. This kit is an amazing addition matching the rear suspension to my front build. Got MD spring pack and fox 2.5 piggybacks from Accutune, couldn't be any better. Kit is very complete and directions are easy to follow. Took two experienced armatures two days to complete but we're slow and steady. Eric knows these trucks and has built the best setup out there. Thank you for bringing new life to my 20 year old truck.

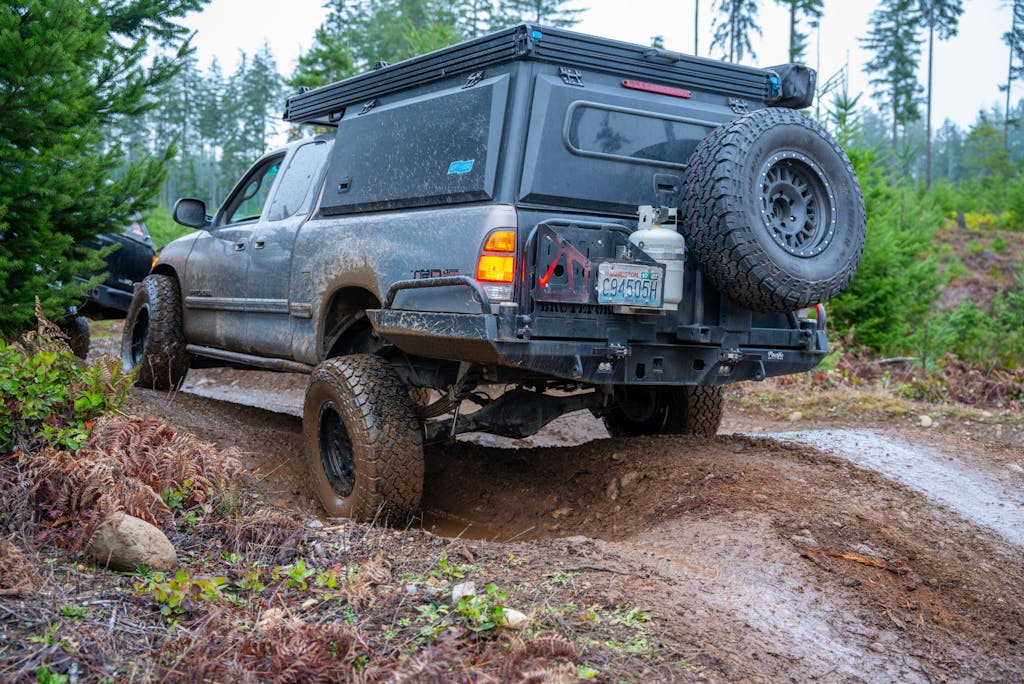

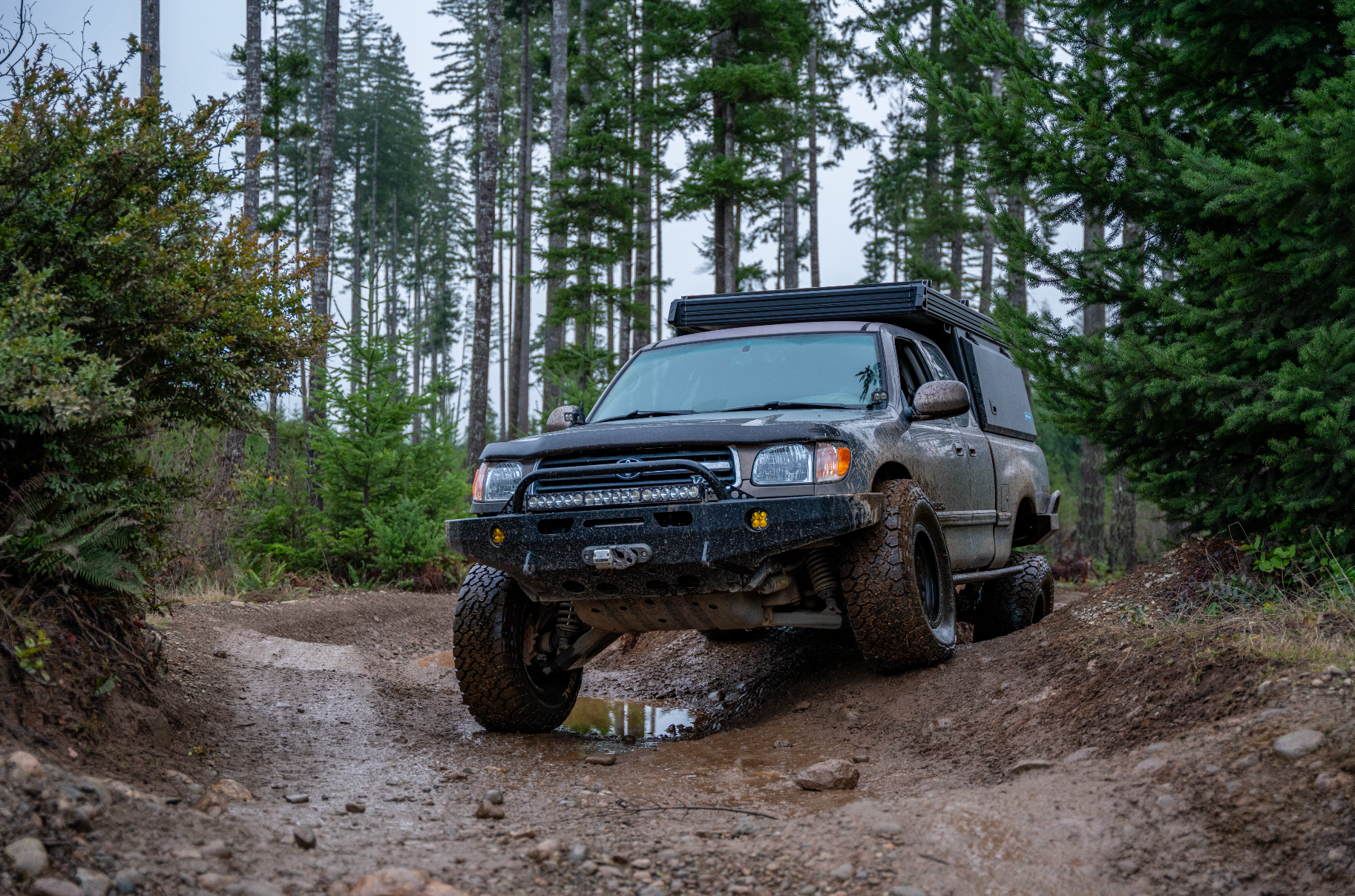

I have been running Archive Garage products on my 2000 Tundra for over 5 years now. The Ultimate Offroad Package with HD springs rides like a dream even with my heavy camper weight. I did notice a tremendous increase of rear end stability from daily driving to fsrd pounding. 10 out 10 recommend you get the complete kit you won't regret it.
