1972-1993 1st Gen Dodge Ram Front Spring Box Hanger Cummins W250 W150 W350 Ramcharger
1972-1993 1st Gen Dodge Ram Front Spring Box Hanger Cummins W250 W150 W350 Ramcharger
Share

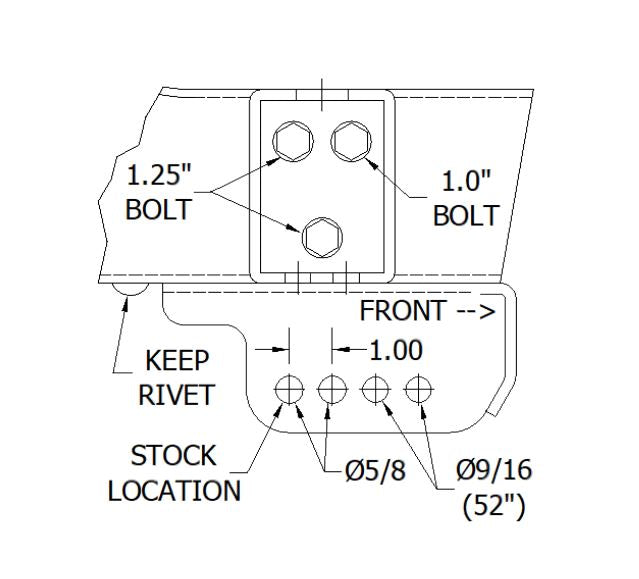

Fits 1972-1993 Dodge Ram trucks W150 W250 W350 and Ramcharger Trailduster. Mounts stock springs (48") & aftermarket or up to 52" springs (see bolt diagram). This bracket is great for 4x4 conversions on 2WD D150 D250 or D350.

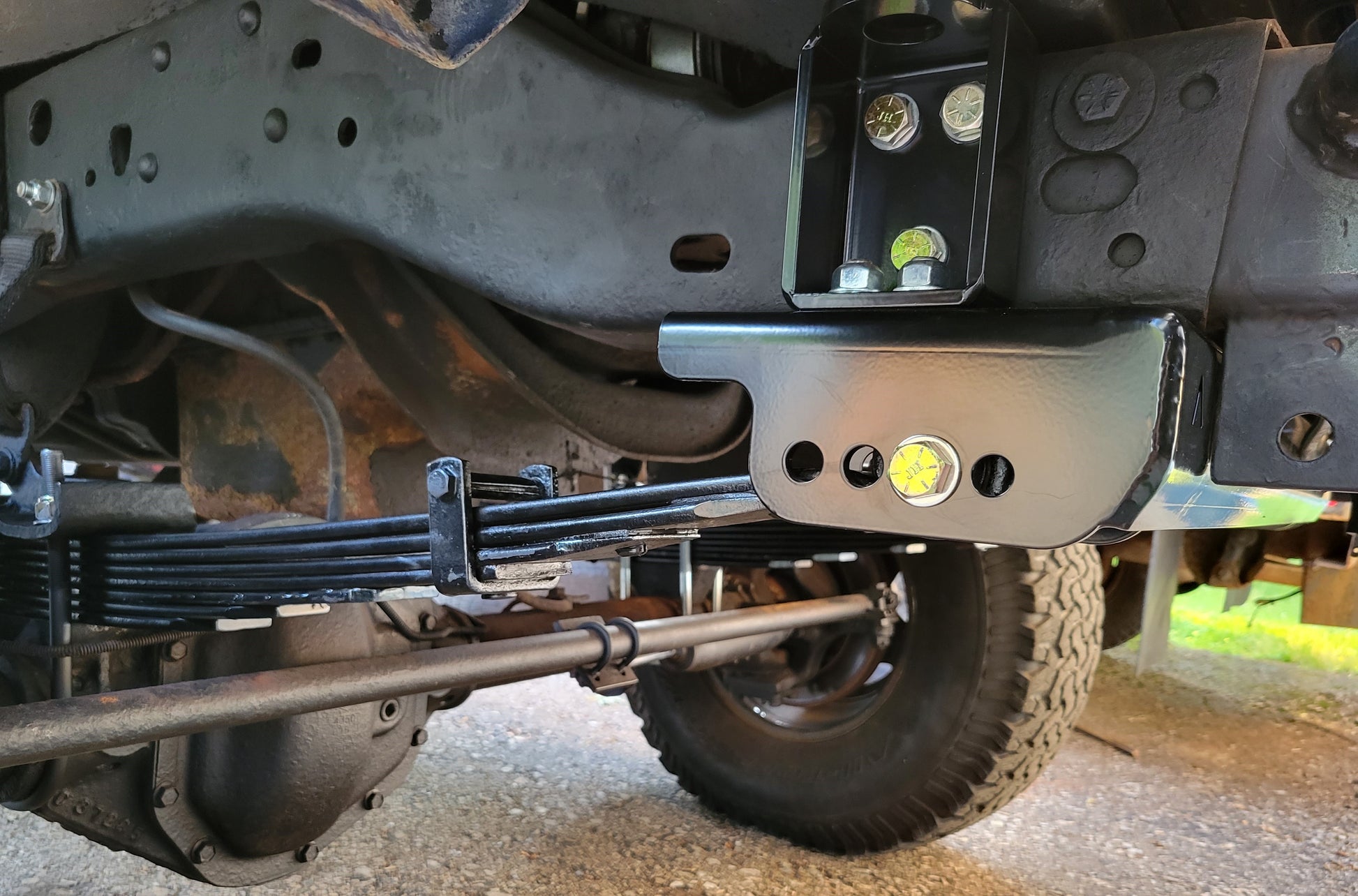

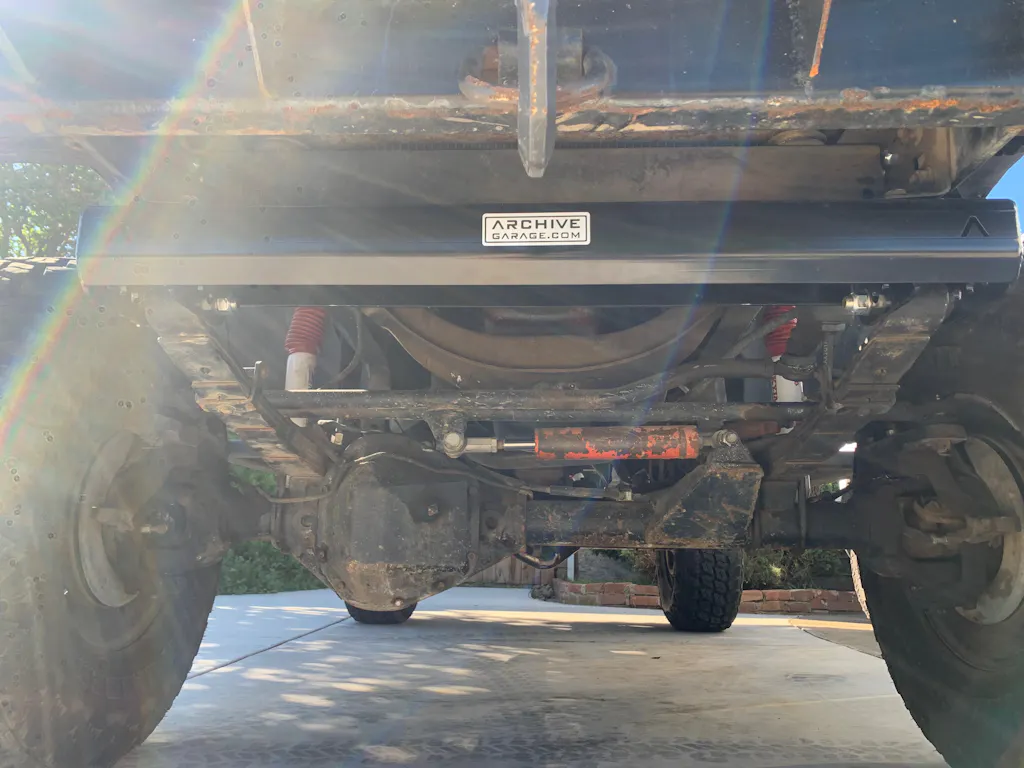

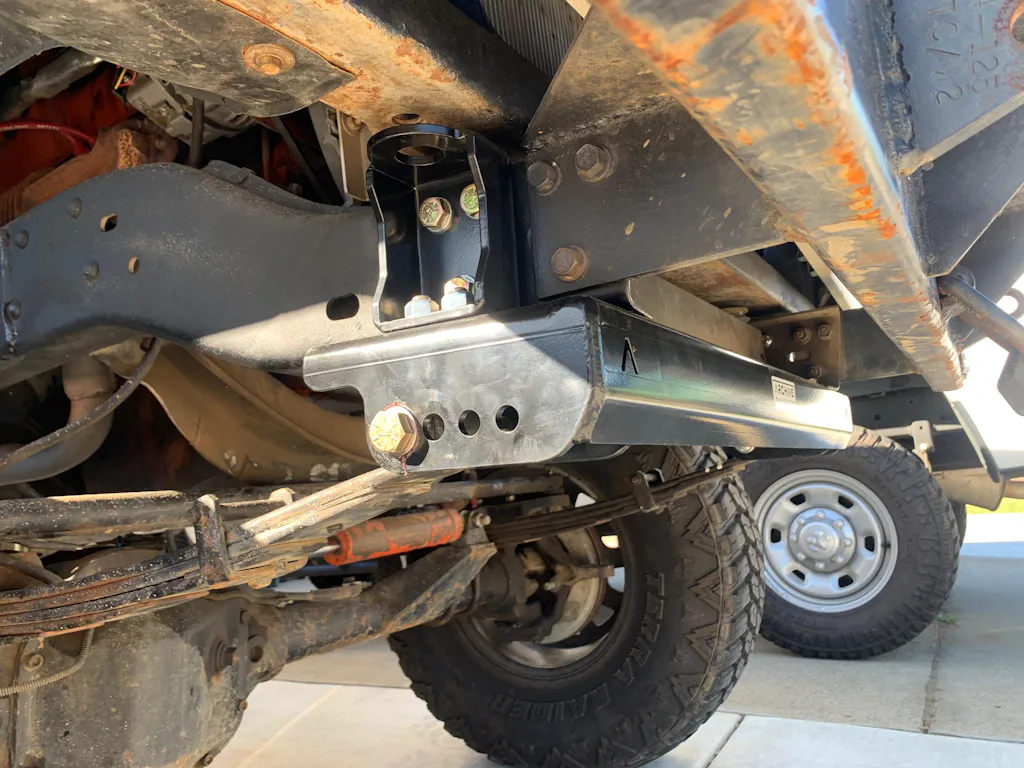

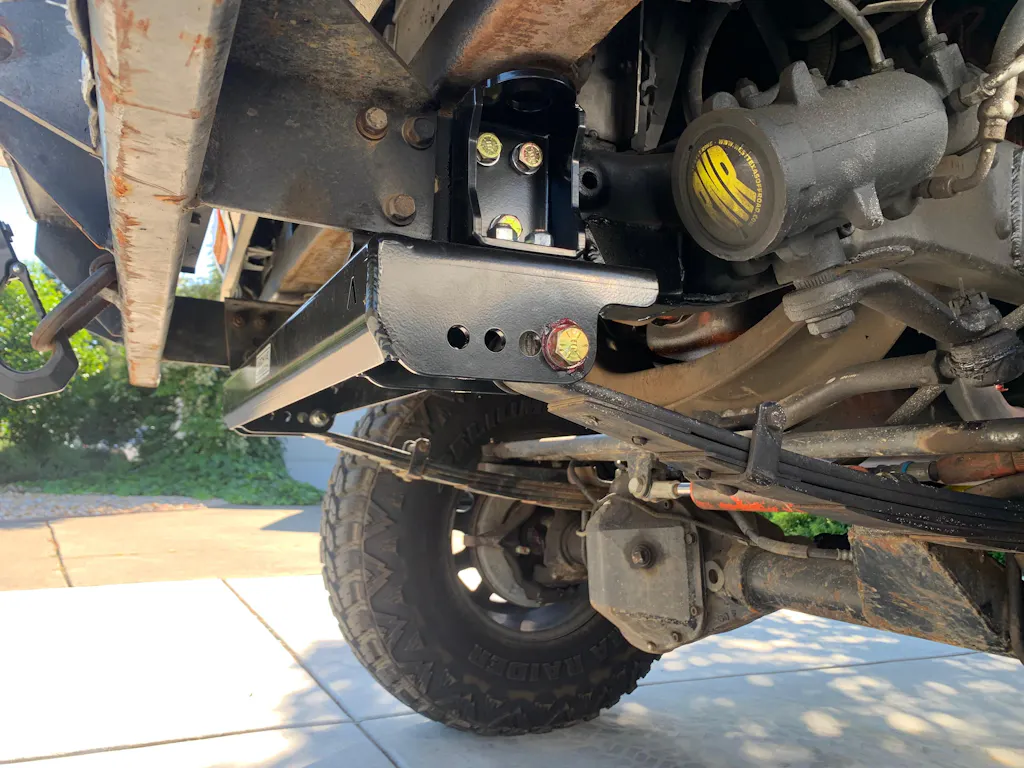

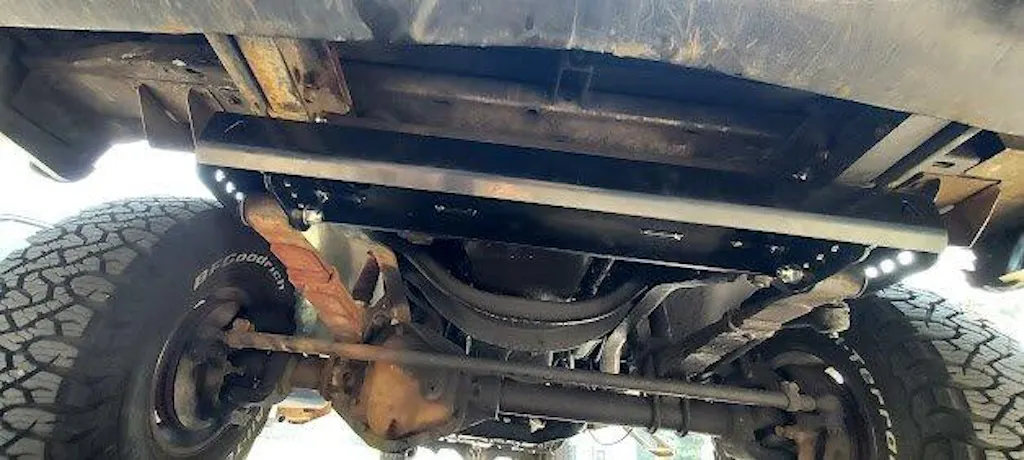

A Robust hanger designed for severe duty off road use! 1-piece box design resists steering and suspension forces much better than 2 separate hangers. Hanger bolts into original rivet holes, after rivets are removed and drilled out to 1/2" (bit included)
Thinking 52" Springs?:
Archive has 52" DODGE-SPECIFIC springs (Made in USA).
If going 52", you'll need the 5" long AG shackles.

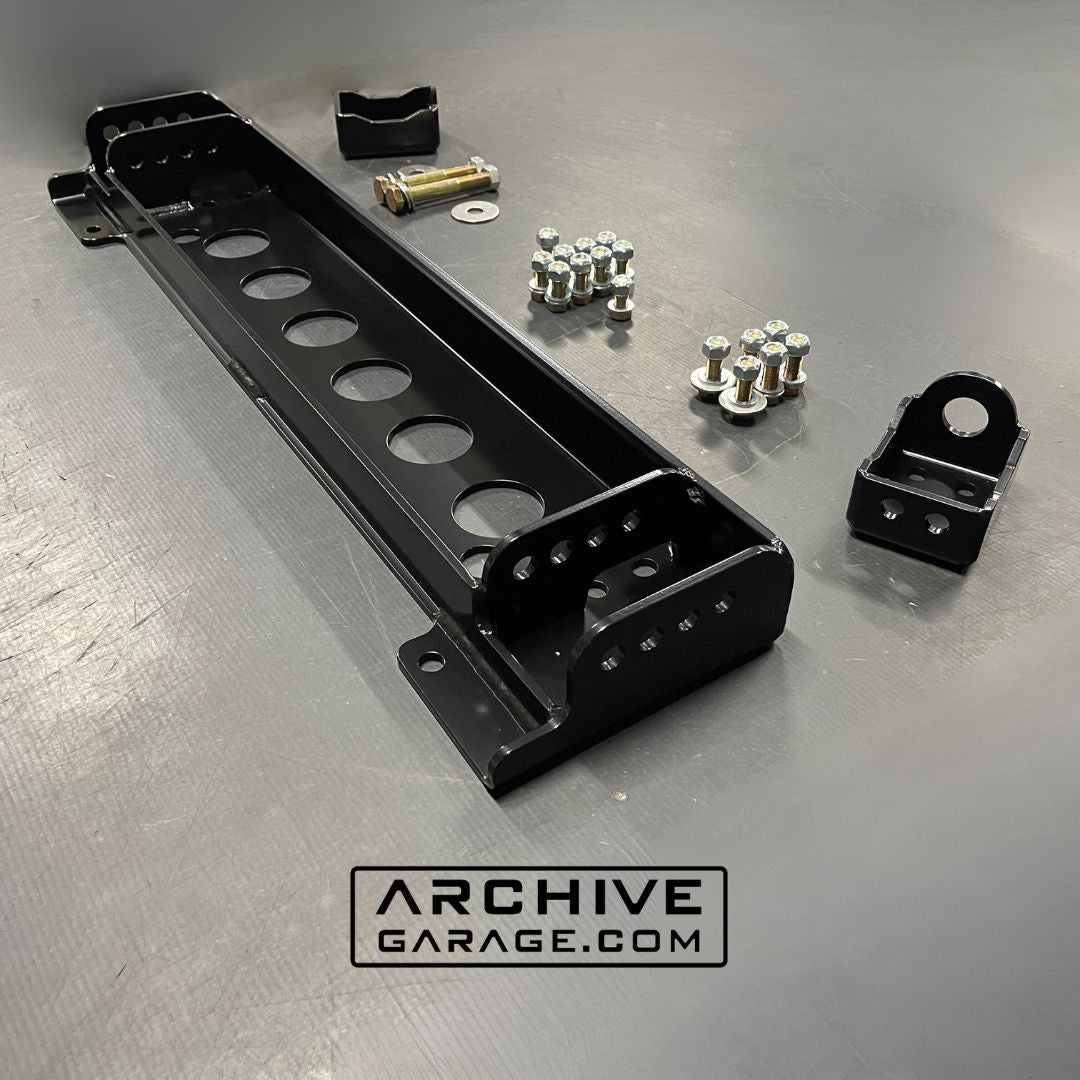

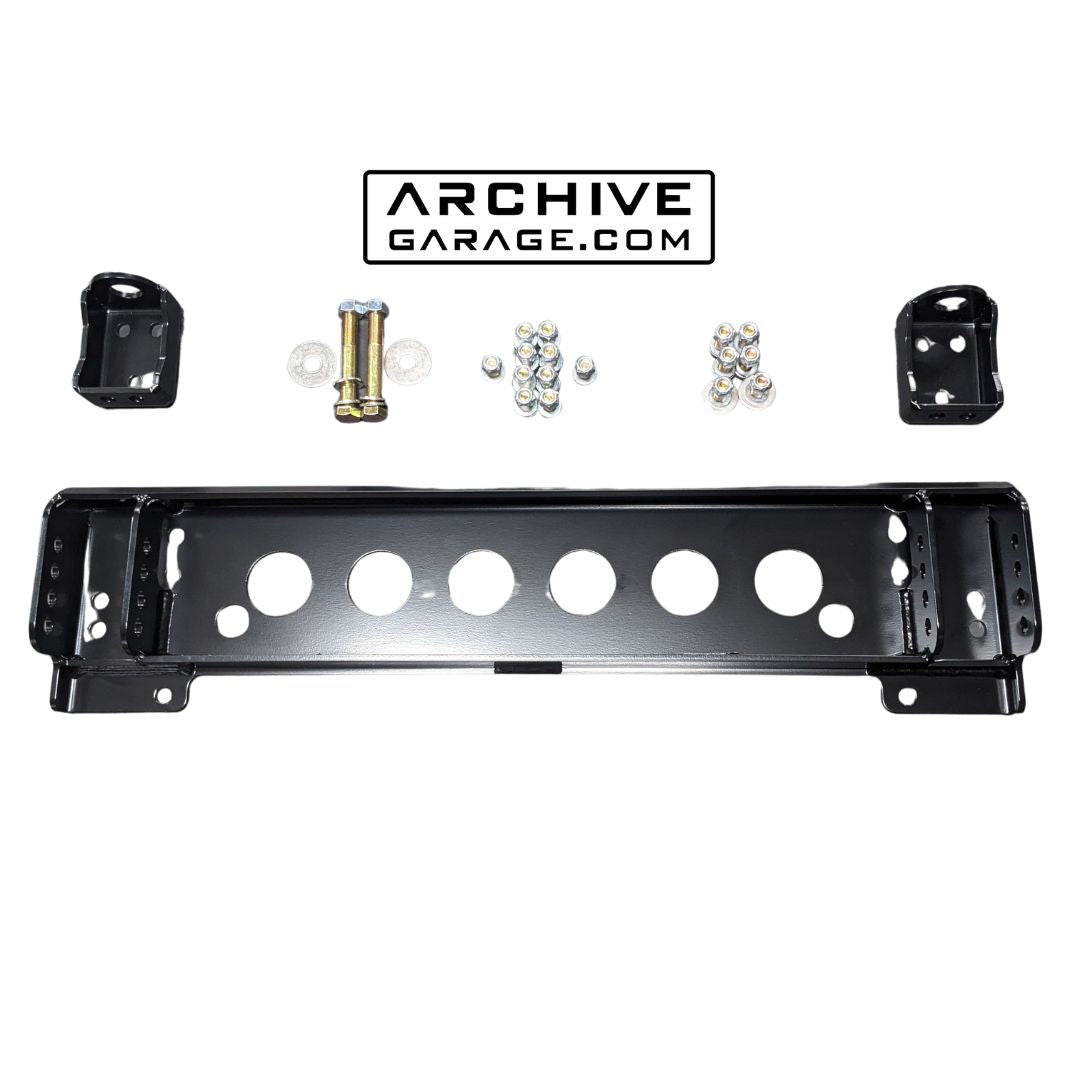

Kit Includes the following:
-Box hanger constructed with 1/4" high-strength steel (30% stronger than mild steel)
-MIG welded, zinc-rich-primed, and powder coated black
-(2) front spring eye Grade 8 bolts Included: both (2) 5/8" for stock spring and (2) 9/16" for Archive 52")
-1/2" grade 8 Flanged frame bolts with top-lock flanged nuts and washers

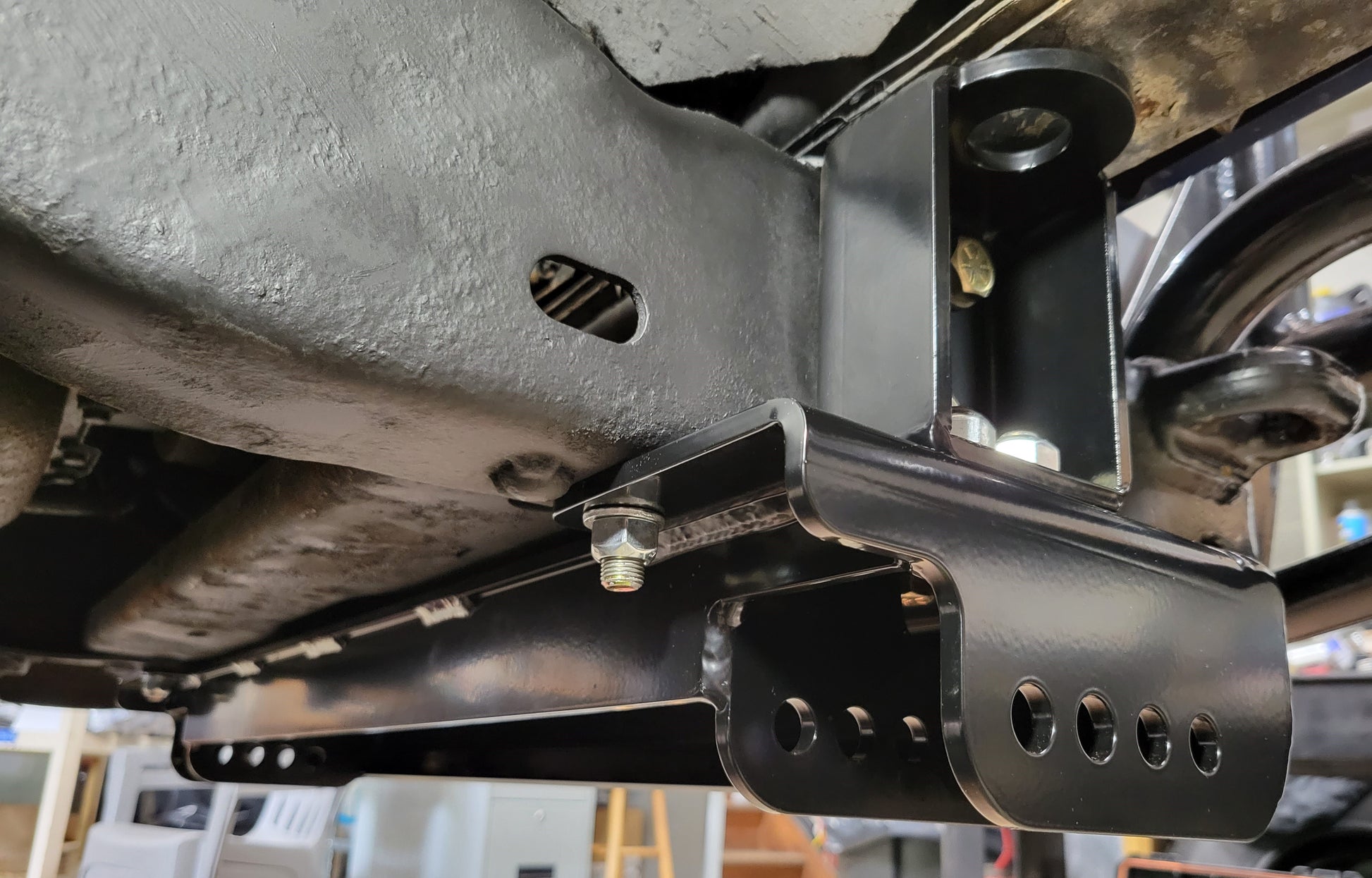

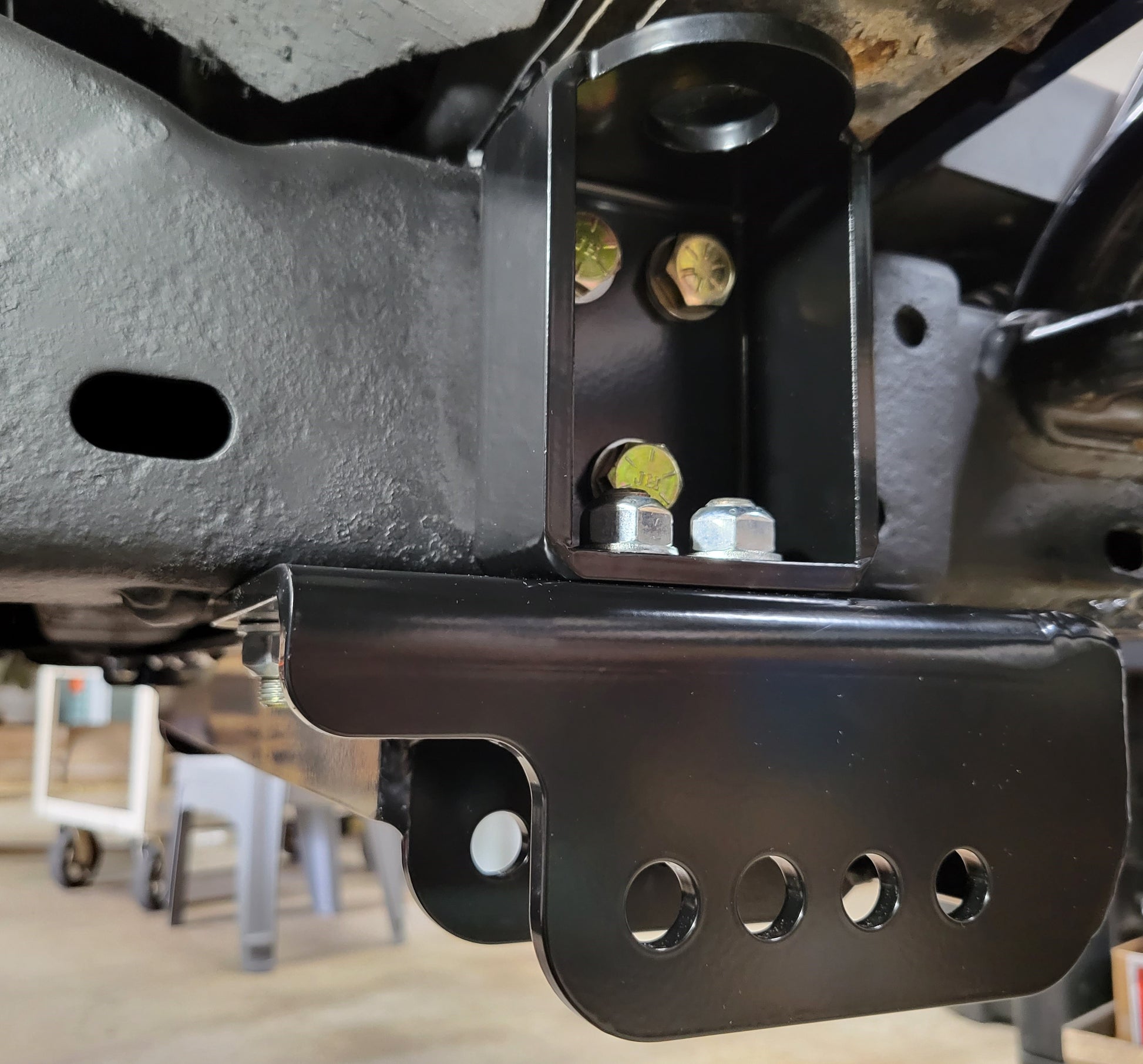

-HD Hanger Side Support Brackets INCLUDED (1/4" high-strength steel)
-Complimentary quality 1/2" drill bit!

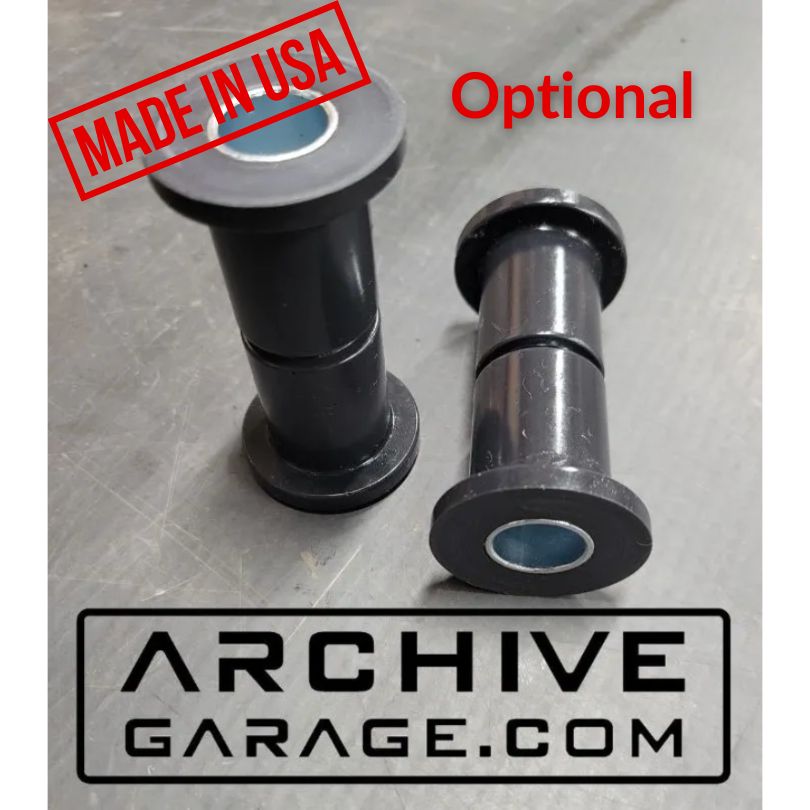

Don't forget to add the optional front spring eye bushings.
Product Fitment Notes
Product Fitment Notes
Shipping
Shipping
Free UPS ground shipping to 48 states.
AK & HI extra.
Canadian shipping by UPS $50-60 USD EXTRA

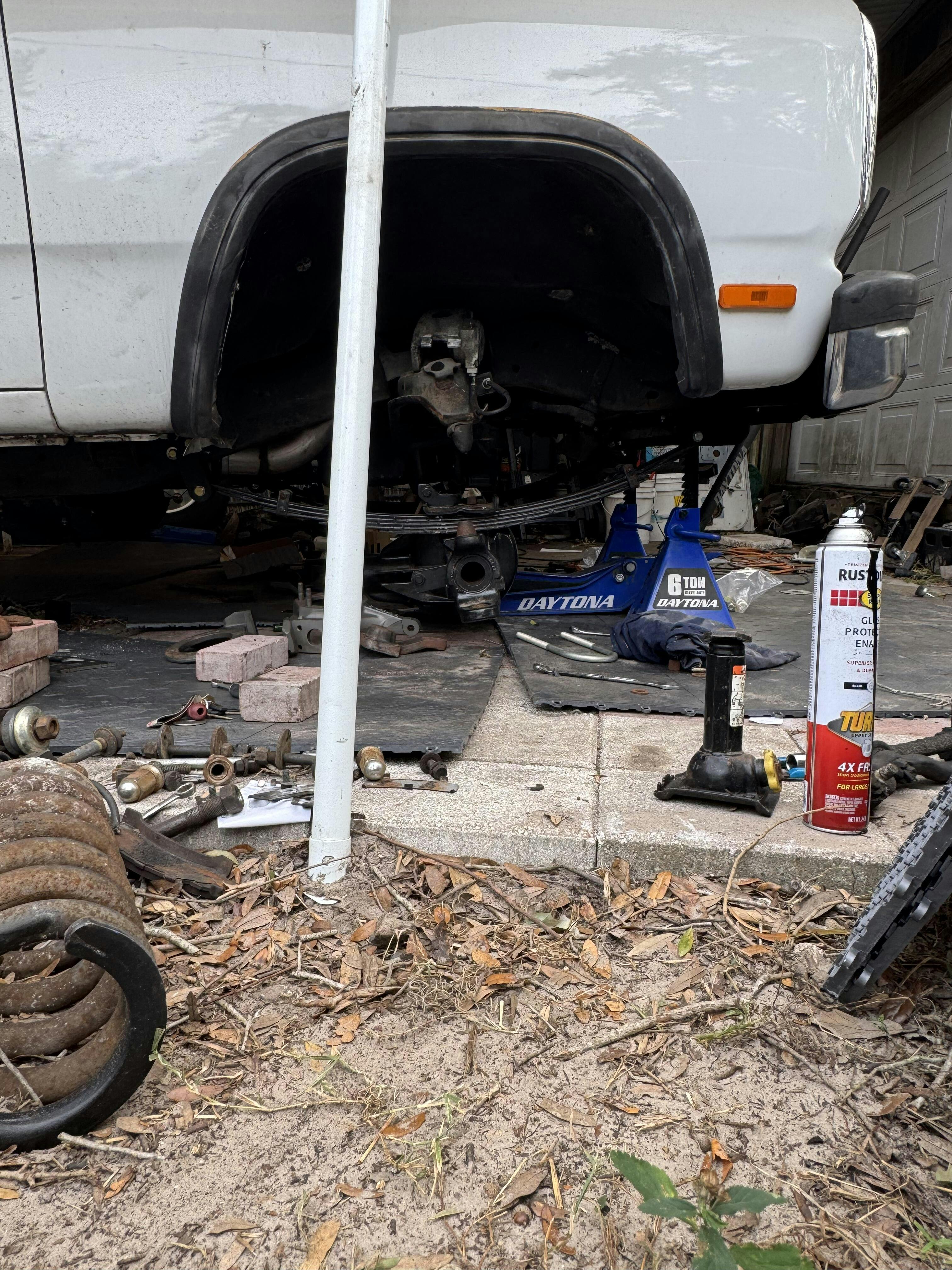

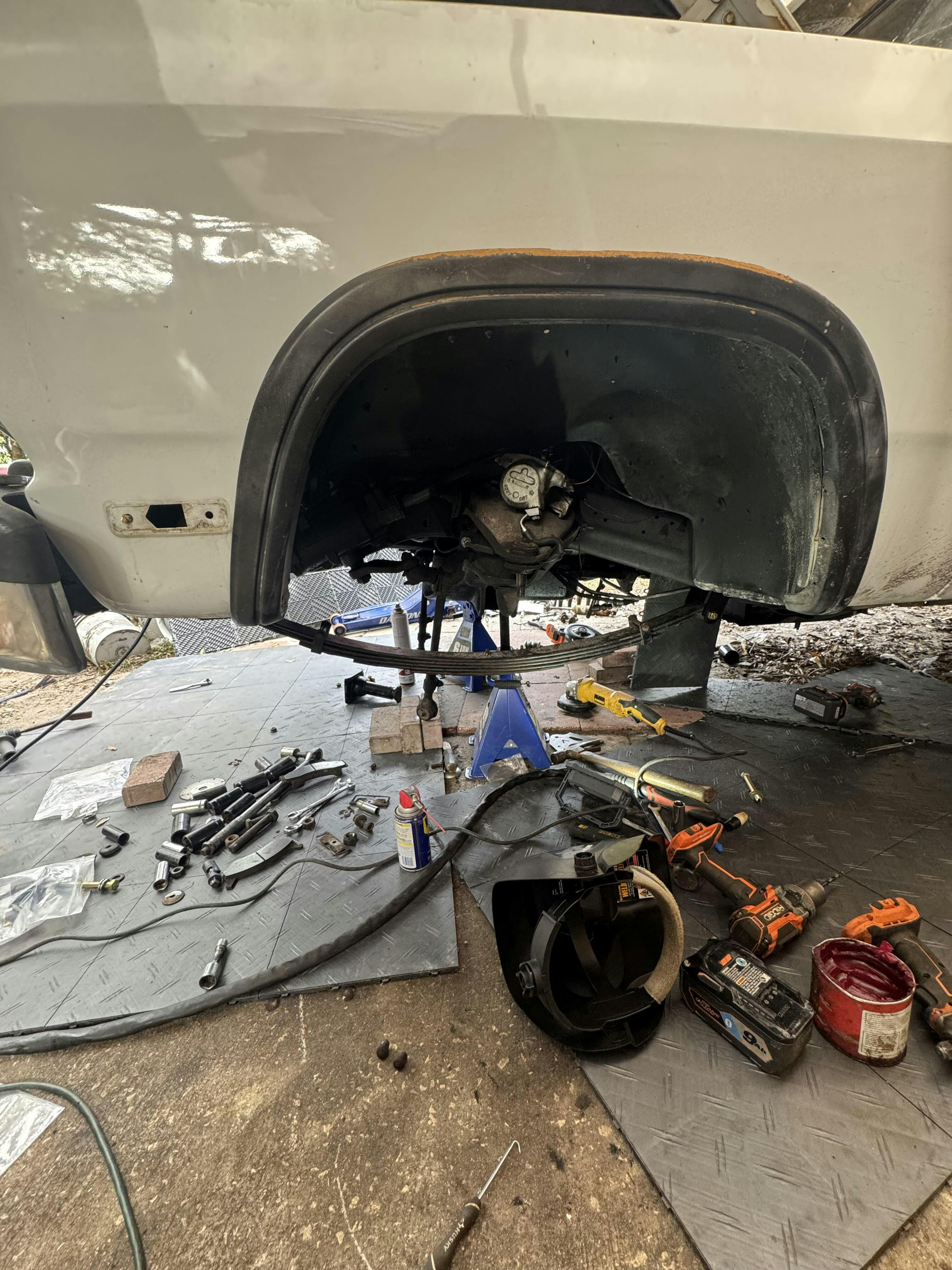

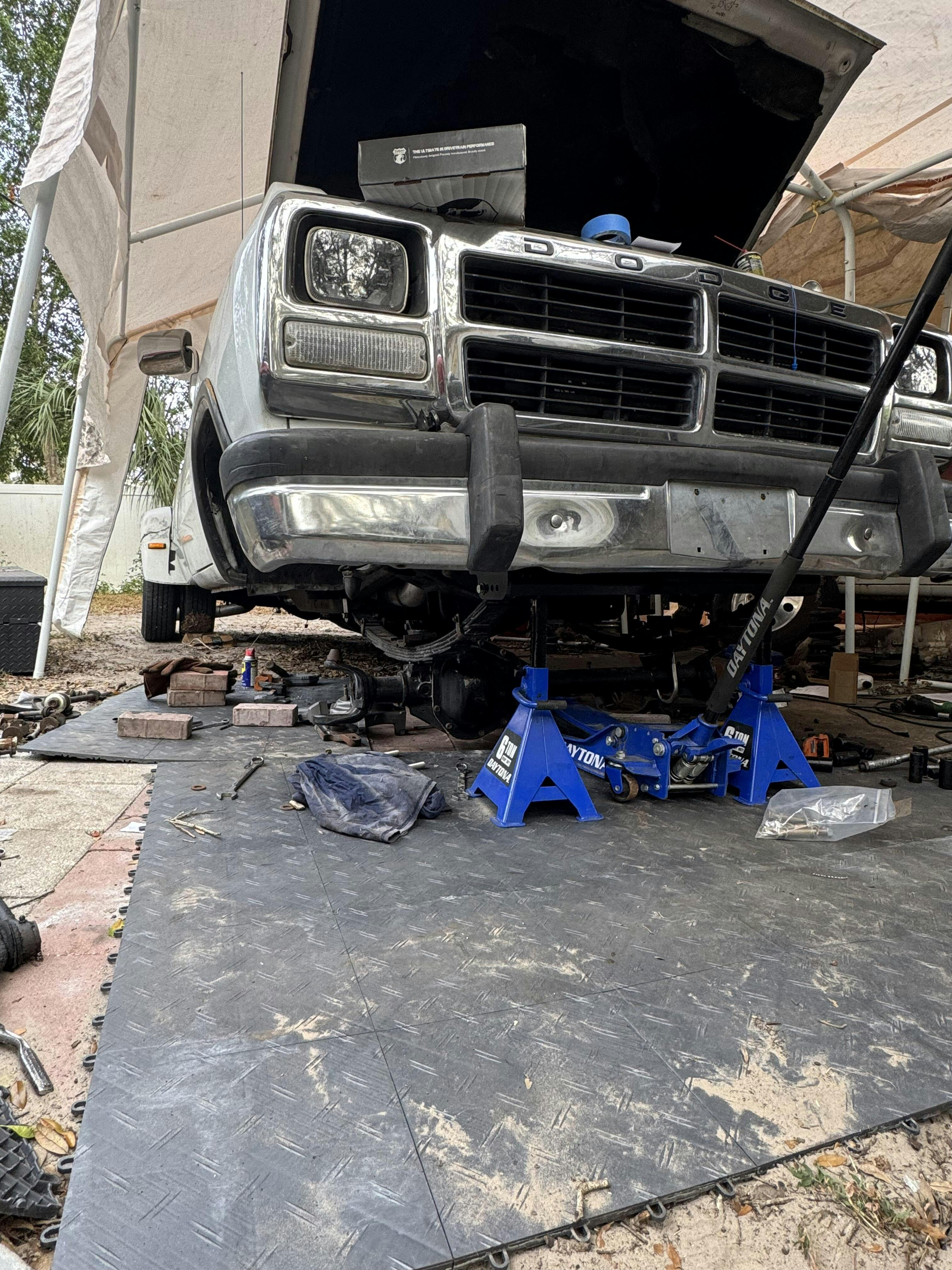

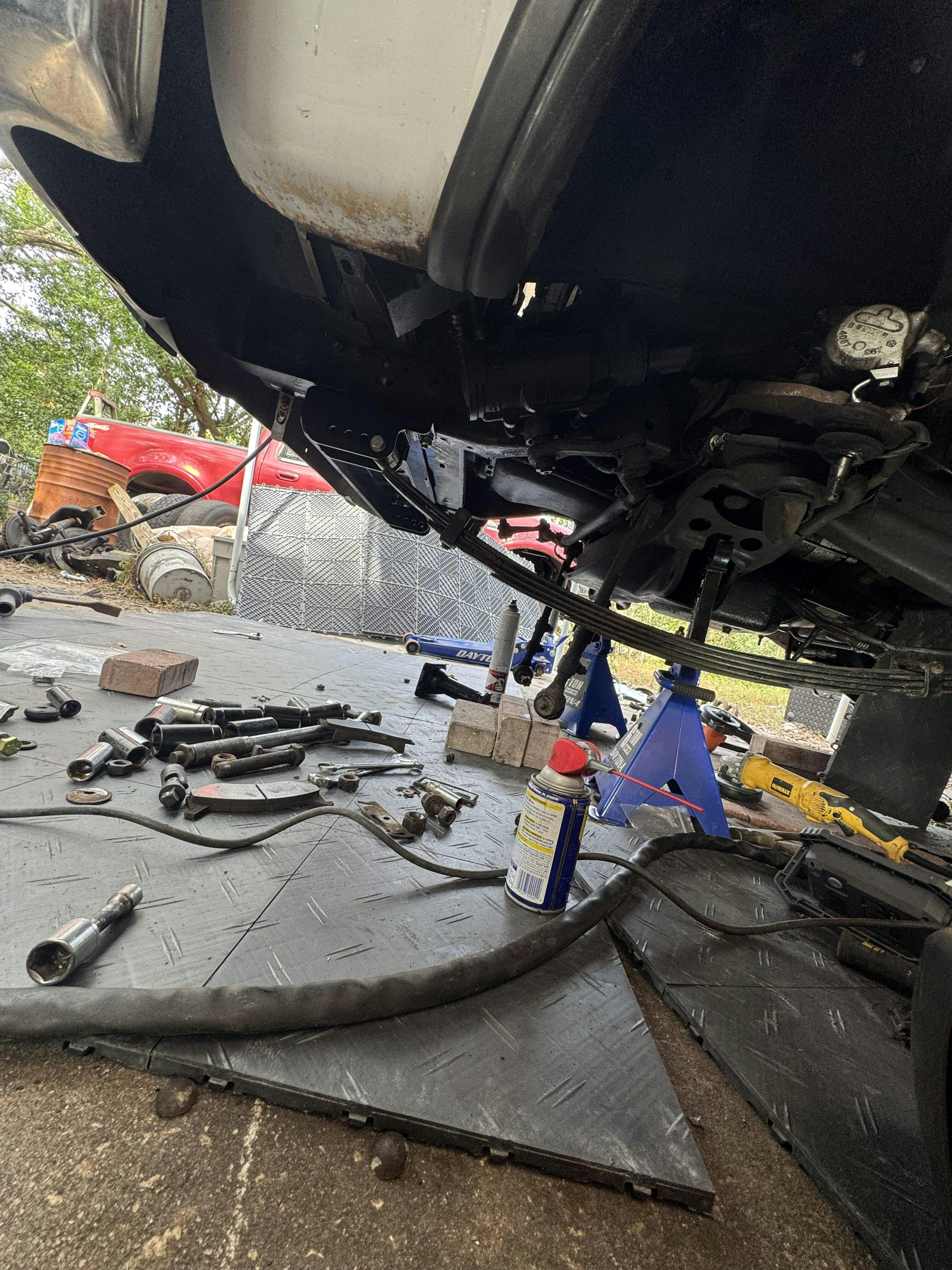

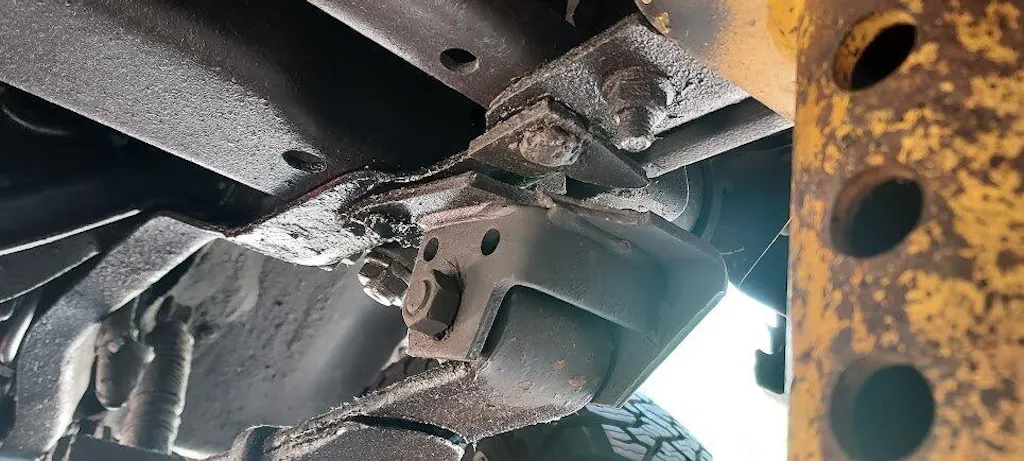

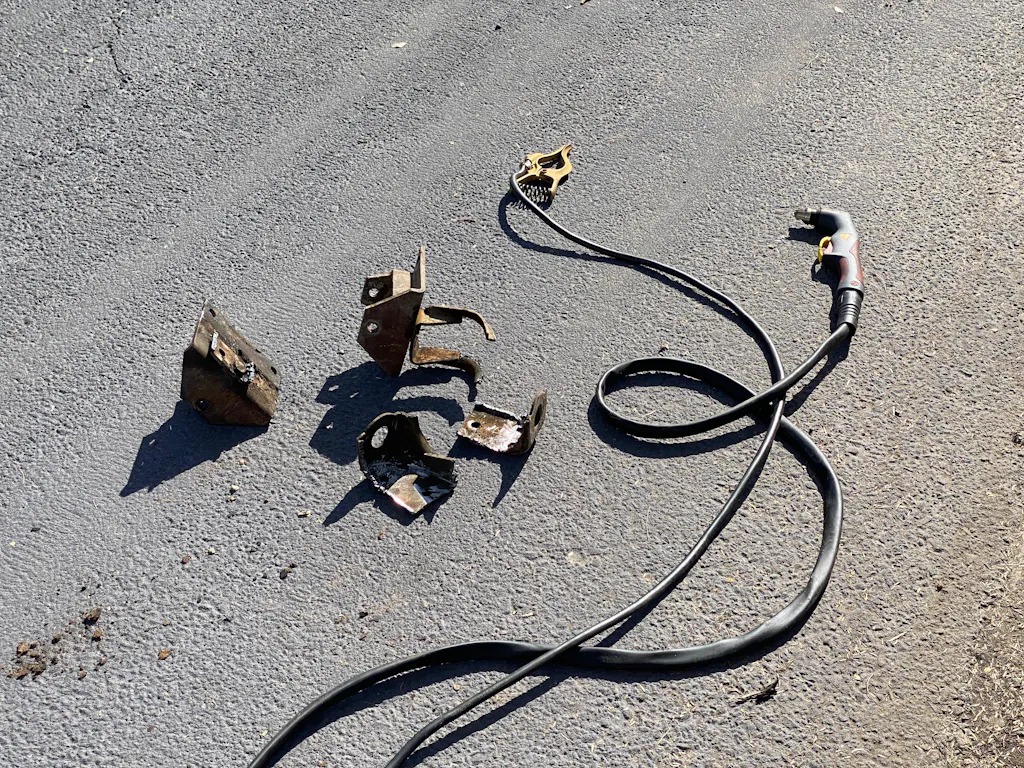

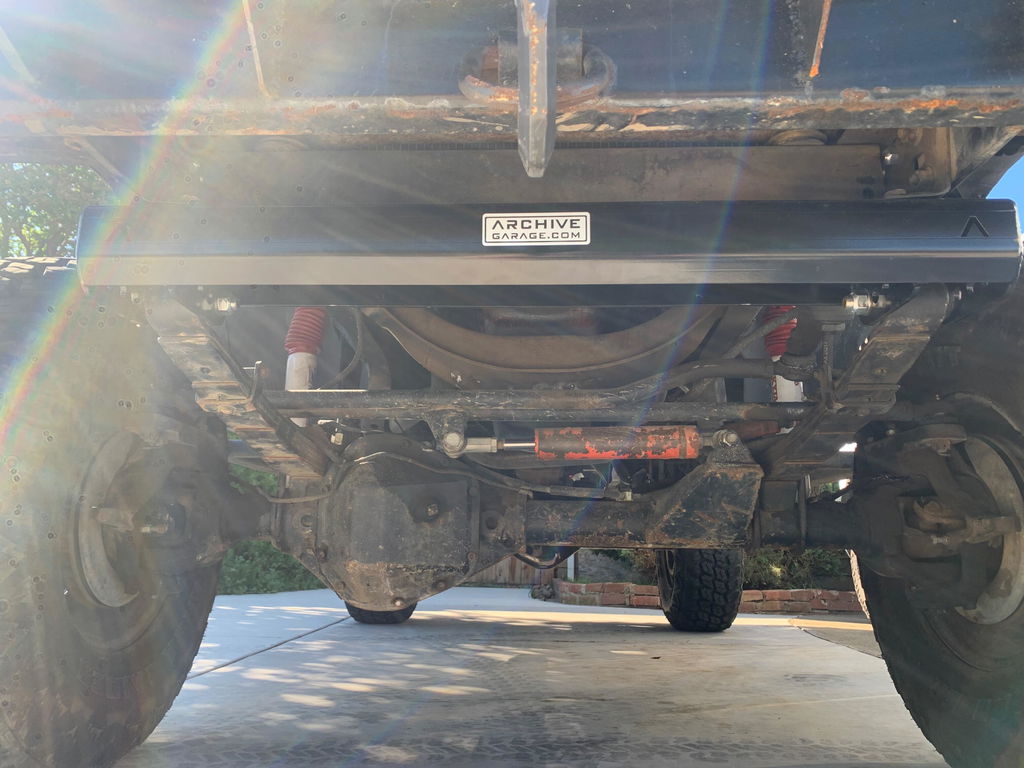

I was going back and forth on buying this kit along with the spring hangers kit and the template, or just using all the OEM part i have gathered to do a Dana 60 King pin swap on my 1992 ext cab D350, and boy am i sure glad i spent the money! This kit put all of the OEM part to shame with how well built and constructed they are, having the box hanger as one unit opposed to the OEM hangers being separate gives me the confidence that it is going to handle the abuse I’m going to be throwing at it with ease and out last the flimsy OEM hangers. I also like the fact that you can run your stock leaf spring and or 52” springs and its as easy as swapping out bolt locations and spring, not having to re fabricate if you decided like i am to upgrade in the future. It Is defiantly worth the buy wether your doing an 4x4 swap like i did or just wanting to upgrade that flimsy OEM hardware! I am so impressed with it i will be buying the whole kit again for my crew cab build!
She was born a beast out of the box, robust, heavy and eating grade 5 bolts for breakfast. A good quality swap for my first gen Cummins D350-macdaddy W-350 🤘
Purchased all of the parts to convert my first gen Dodge to a 52" front spring and upgraded shocks. Parts are well built and look great. Shipping was fast and packaged well. The owner reached out personally after my order was placed to check on everything and make sure that I was happy with my order. Great products and very personable company. I will definitely be purchasing more products from Archive Garage.
Arrived on time, well packed with nothing missing. Parts seem of high quality and fit well. Very good instructions are included for installing. I would buy this again.

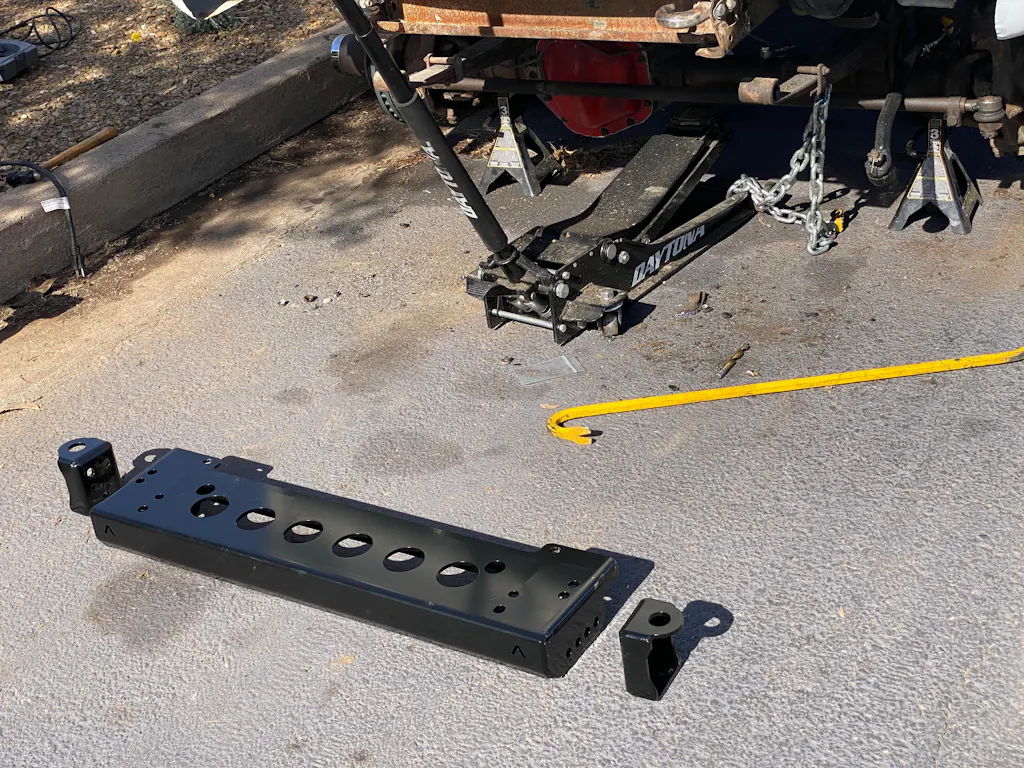

Bought this item to contribute to my 4x4 conversion build. Out of the box it has a beautiful finish and good weight to it. Looking forward to install and application in the future
