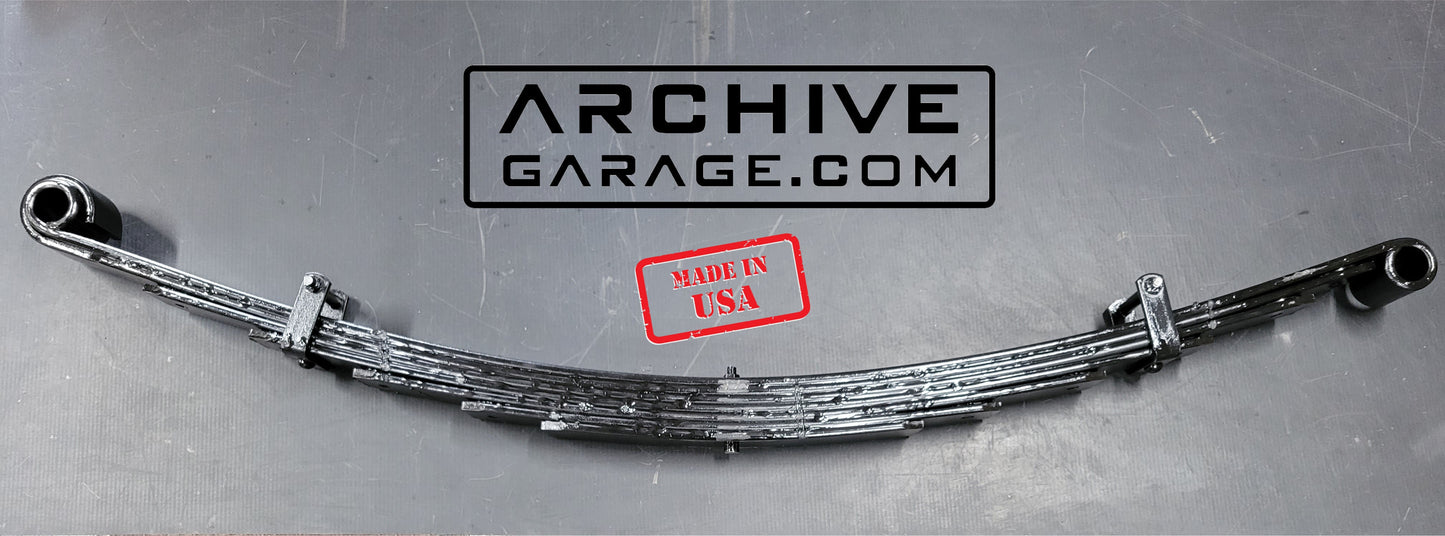

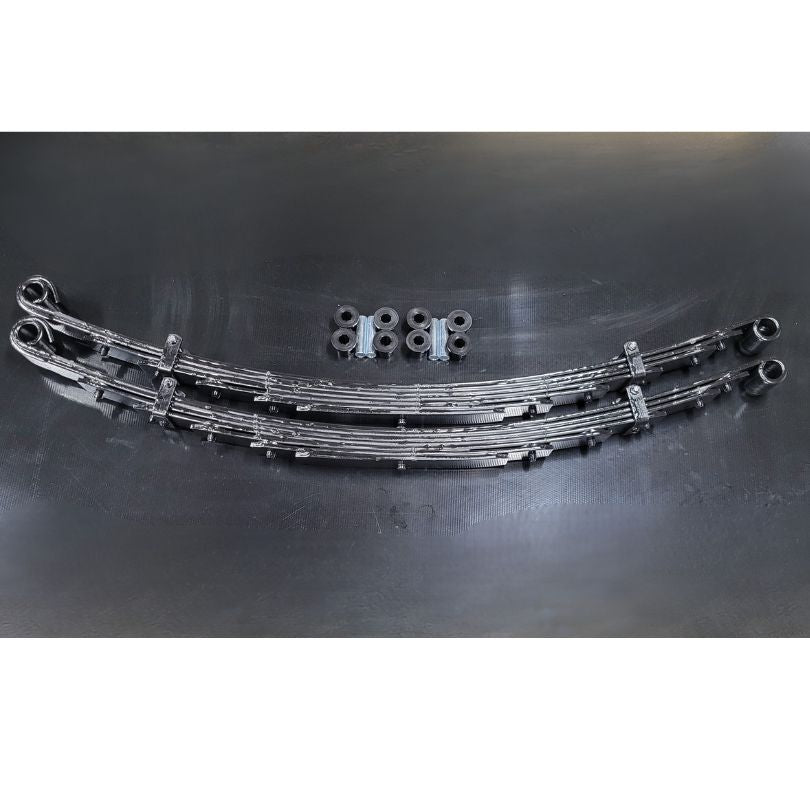

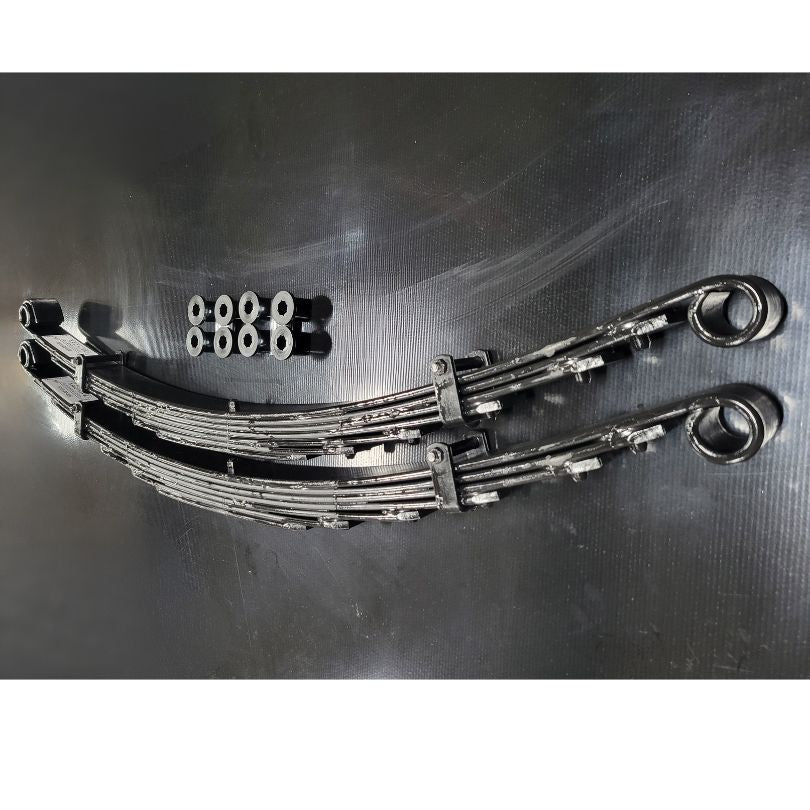

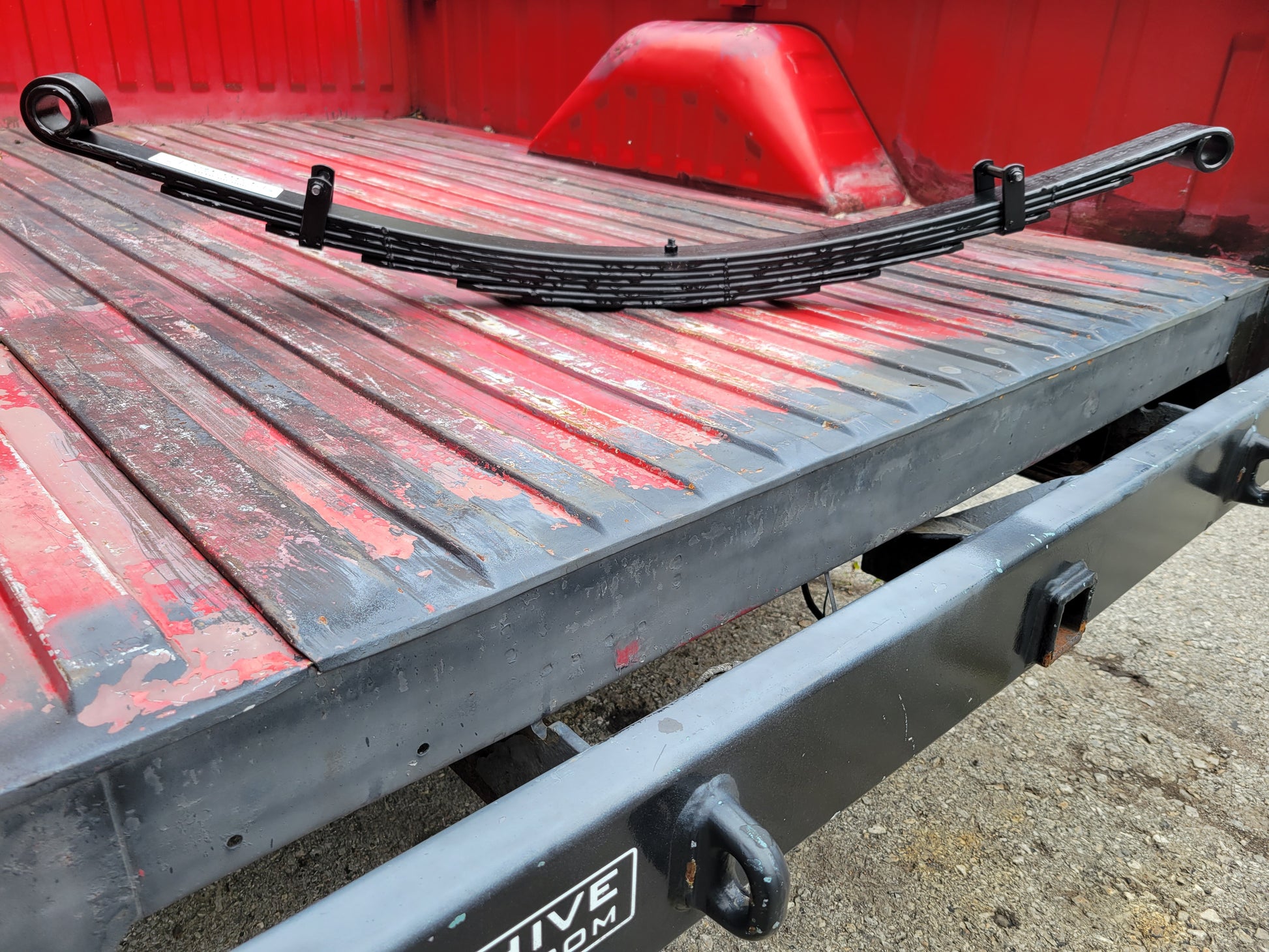

1st Gen Dodge Ram Archive Front 52" 7-leaf Springs Pair 1972-1993 W150 W250 W350 Cummins Ramcharger

1st Gen Dodge Ram Archive Front 52" 7-leaf Springs Pair 1972-1993 W150 W250 W350 Cummins Ramcharger

Regular price $690.00 USD
Regular price Sale price $690.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 8 left

Features:

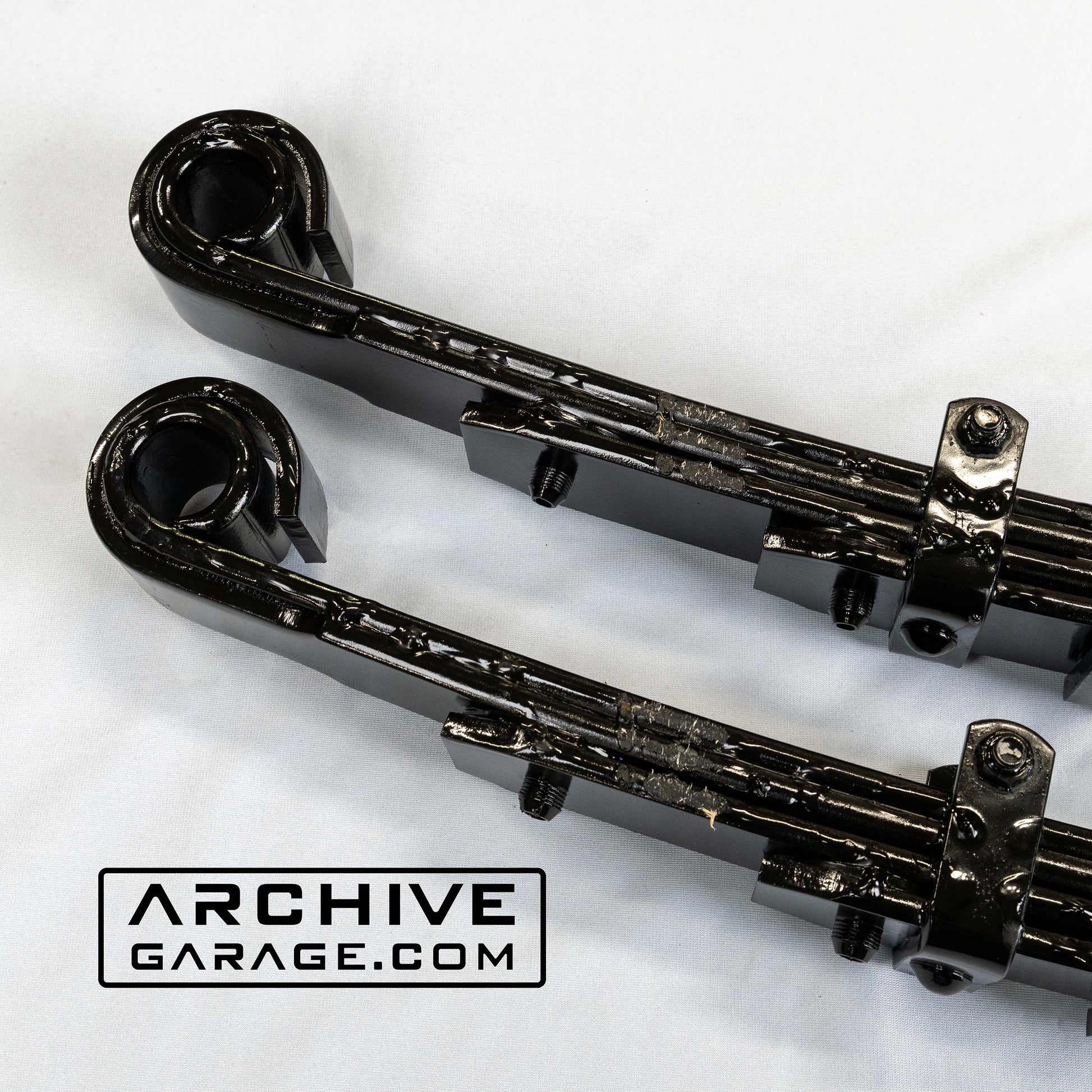

-Archive 52" Front 7-leaf packs are 100% designed by Archive for severe duty off road travel!

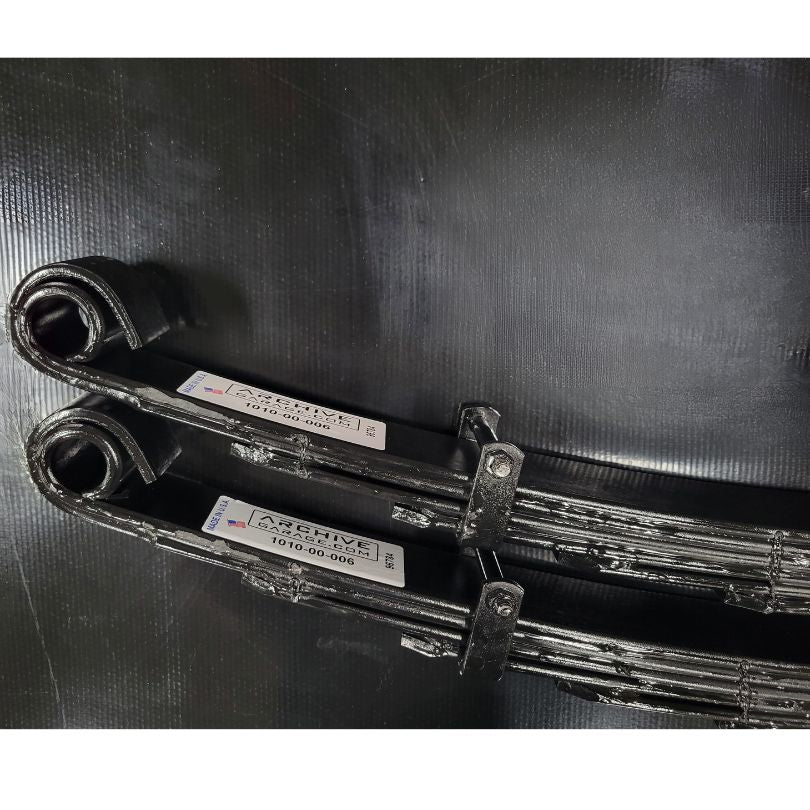

-Made in USA with 5160 US steel, tip insert pads, FULL military wrapped front eye, bolted spring clips, and high quality poly bushings are included in price.

-Carefully designed with Dodge-specific spring eyes to maintain caster and pinion angle (unlike using Chevy springs)

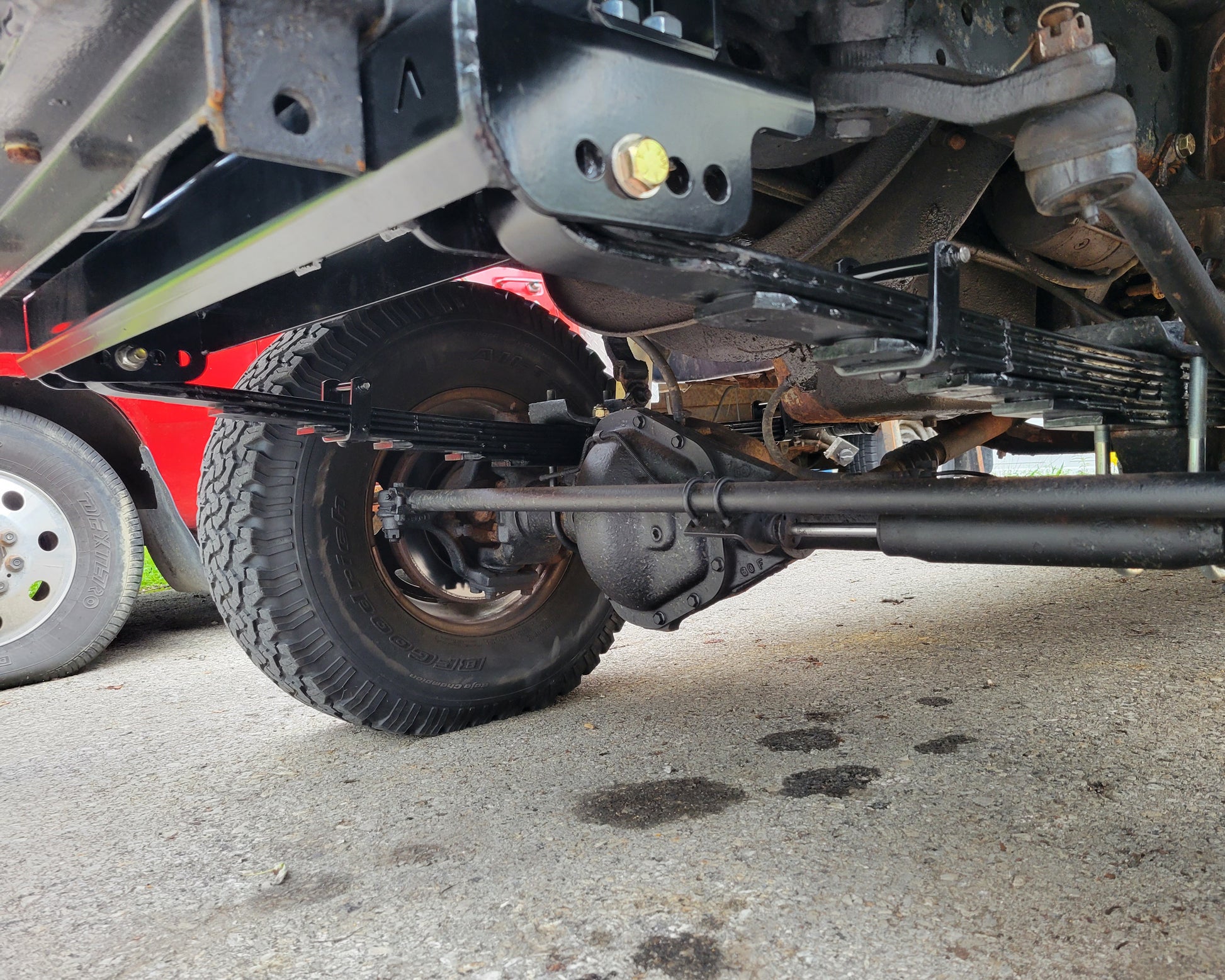

-Tested on our personal Cummins w250 truck, plus customers' trucks.

-Ride is smooth, yet braking and steering are very stable!

-Lift height:  about 3"

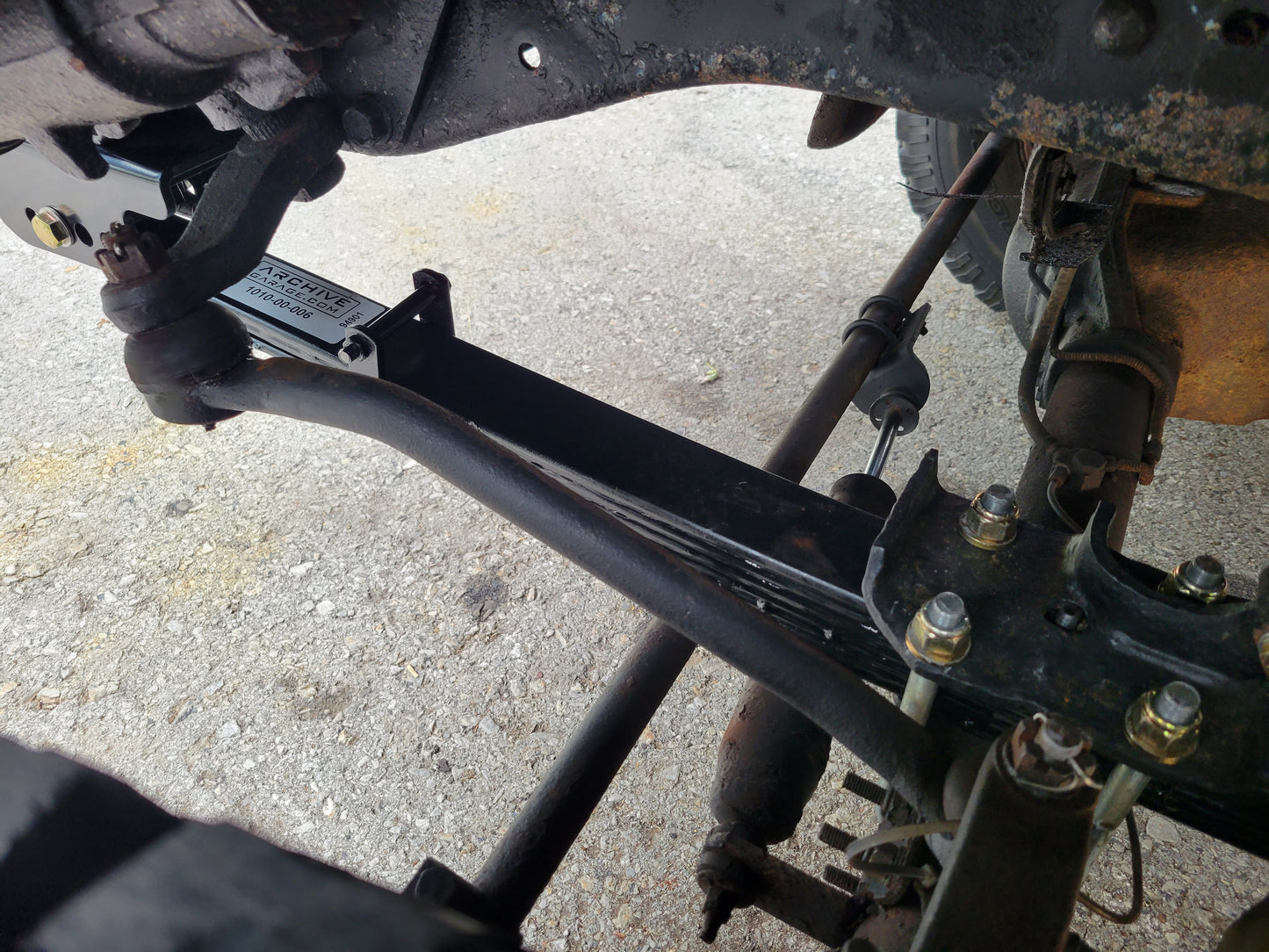

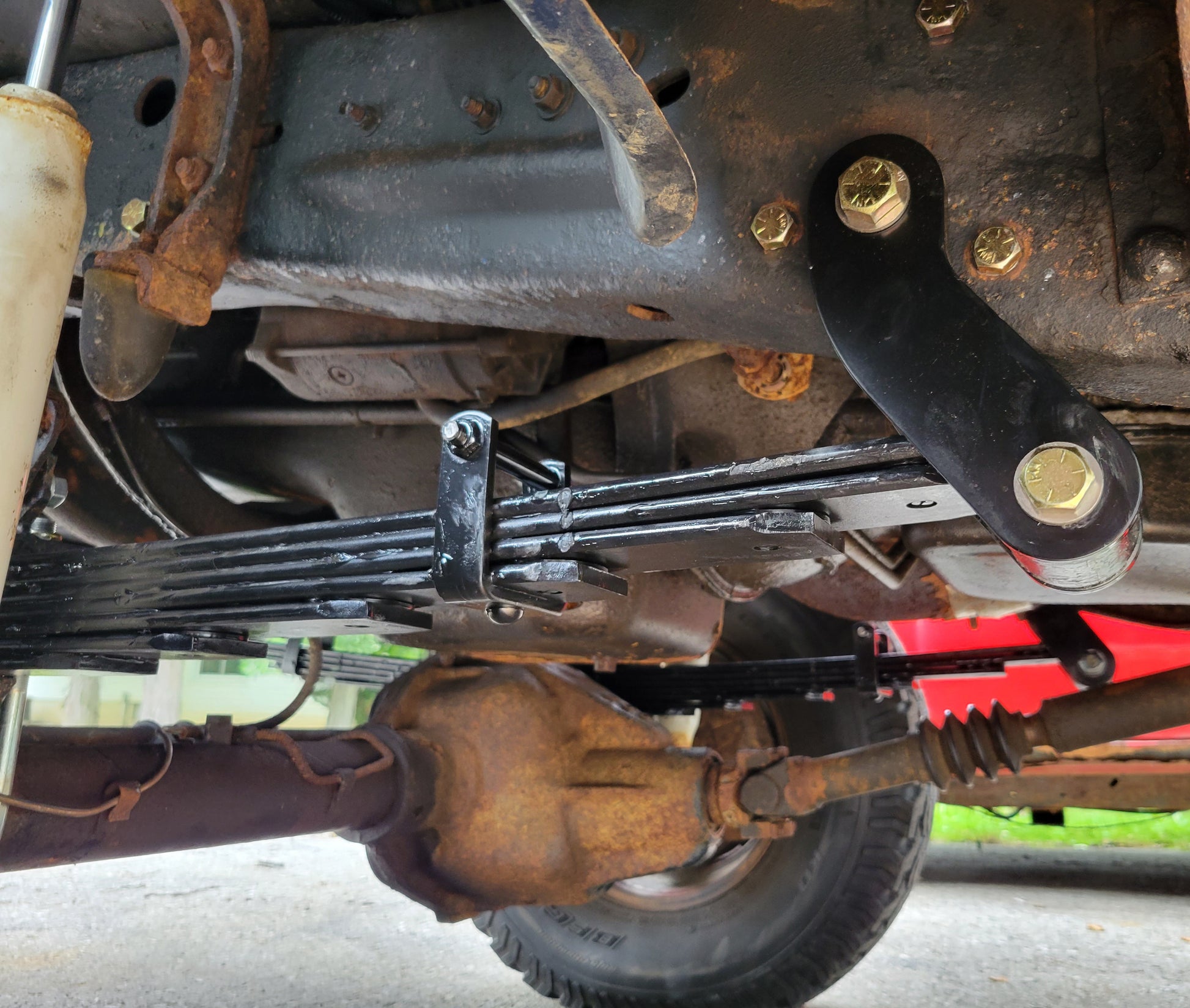

-Archive Box Hanger and Shackle Kit w/ 5" plate shackles are required for mounting

-These springs can deliver ~10" travel with matching travel shocks, cross-over steering and proper driveshaft

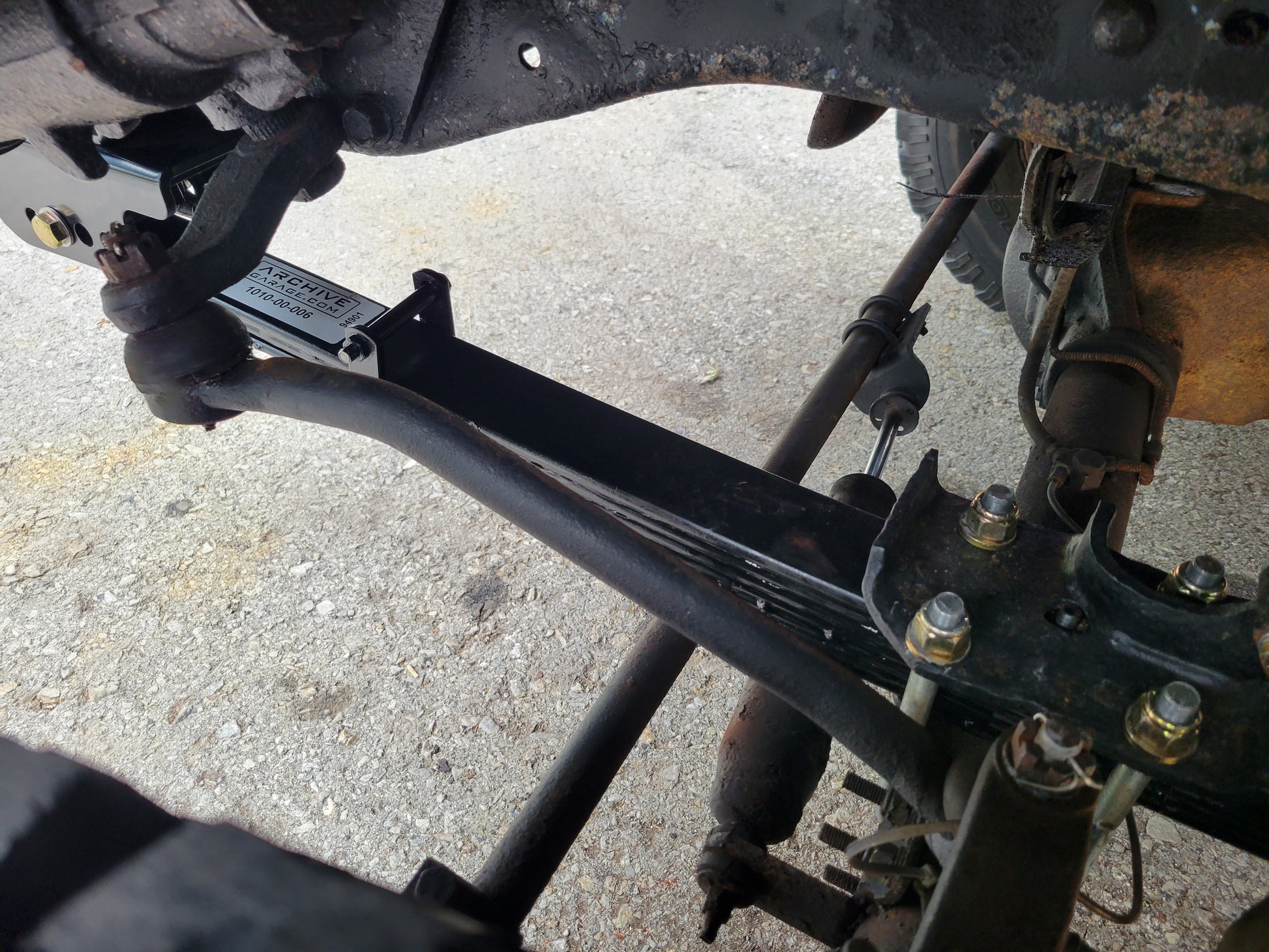

  (On my truck with stock steering, I use limit straps to keep axle from dropping causing binding of stock steering or over-extension of driveshaft)

Product Overview

Product Fitment Notes

2005-2023 Tacoma DC/SB
Leaf Pack Estimated Lift Amount AG Leafs Axle-Tube-to-Frame-Bottom
Stock 3/1-stock weight 0in 8.25in
Archive MD - 0lbs 3.25in 11.5in
Archive MD - 300lbs 2.5in 10.75in
Archive MD - 600lbs 2in 10.25in
Archive HD - 600lbs 3in 11.25in
Archive HD - 1250lbs 2in 10.25in
Archive XD - 1250lbs 3in 11.25in
Archive XD - 1750lbs 2.5in 10.75in
*Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR.  The vehicle owner assumes all risk when exceeding Toyota's GVWR or GAWR.

Recommended Shocks (Confirmed Fit & Performance)

Shock Brand Part Number
Accutune Fox Factory RR 2.5x12 Fox 980-02-102
Accutune Fox Factory RR 2.5x14 Fox 980-02-103
AccuTune Fox Factory RR DSC 2.5x12 Fox 980-06-102-SRT
AccuTune Fox Factory RR DSC 2.5x14 Fox 980-06-103-SRT
AccuTune King RR 2.5x12 King King PR2512-SS
AccuTune King RR 2.5x14 King King PR2514-SS
AccuTune King RR 2.5x12 w/ adjuster   King King PR2512-SS-A
AccuTune King RR 2.5x14 w/ adjuster King  King PR2514-SS-A
ADS Smooth Body 2.5x12 ADS 250-SBR12-W00
ADS Smooth Body 2.5x12 w/adjuster ADS 250-SBR12-WA0
*If using HD Springs or XD 12in is best
*For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel Fittings/Spacers
12-14in Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer or Equivlent Out Board
Offset Visualizer App
