STEALTH HD TOYOTA U-BOLT FLIP KIT - 2G 3G 2005-2023 TACOMA & 1G 2000-2006 TUNDRA
STEALTH HD TOYOTA U-BOLT FLIP KIT - 2G 3G 2005-2023 TACOMA & 1G 2000-2006 TUNDRA
Couldn't load pickup availability
Share
MADE IN USA!!
Archive's Stealth HD U-bolt flip kit fits stock 60mm (2.375") to 2.5" wide springs max, bolts are kept tight to pack to prevent your leaves from rotating out of alignment.
This kit allows you to remove bumpstops without removing the U-bolts & U-bolt plates and having to repeat torque sequence.
If you buy this kit, email us for a discount when you need replacement U-bolts
Option 3 & 4 Archive Speed bumps are 100% designed by us for:
1) soft engagement
2) max bump travel
3) slowing weight down over more distance for progressive feel
4) no center hole in bump to fill up with water
5) two tough 3/8" bolts to hold bumpstops down
6) High strength Steel (30% stronger than competition)
Note: Spring center bolt threads must be trimmed to a max height of 1/2" above the spring
Kit includes:
(2) HD powder coated U-bolt plates w/ kick out for air bumps, made from high strength HSLA 50ksi steel (30% stronger than mild/A36).
(4) HD 9/16" round U-bolts (3 1/4" x 8 1/2"), Clamps leaf packs up to 3.5" thick (Trim to fit)
Product Fitment Notes
Product Fitment Notes

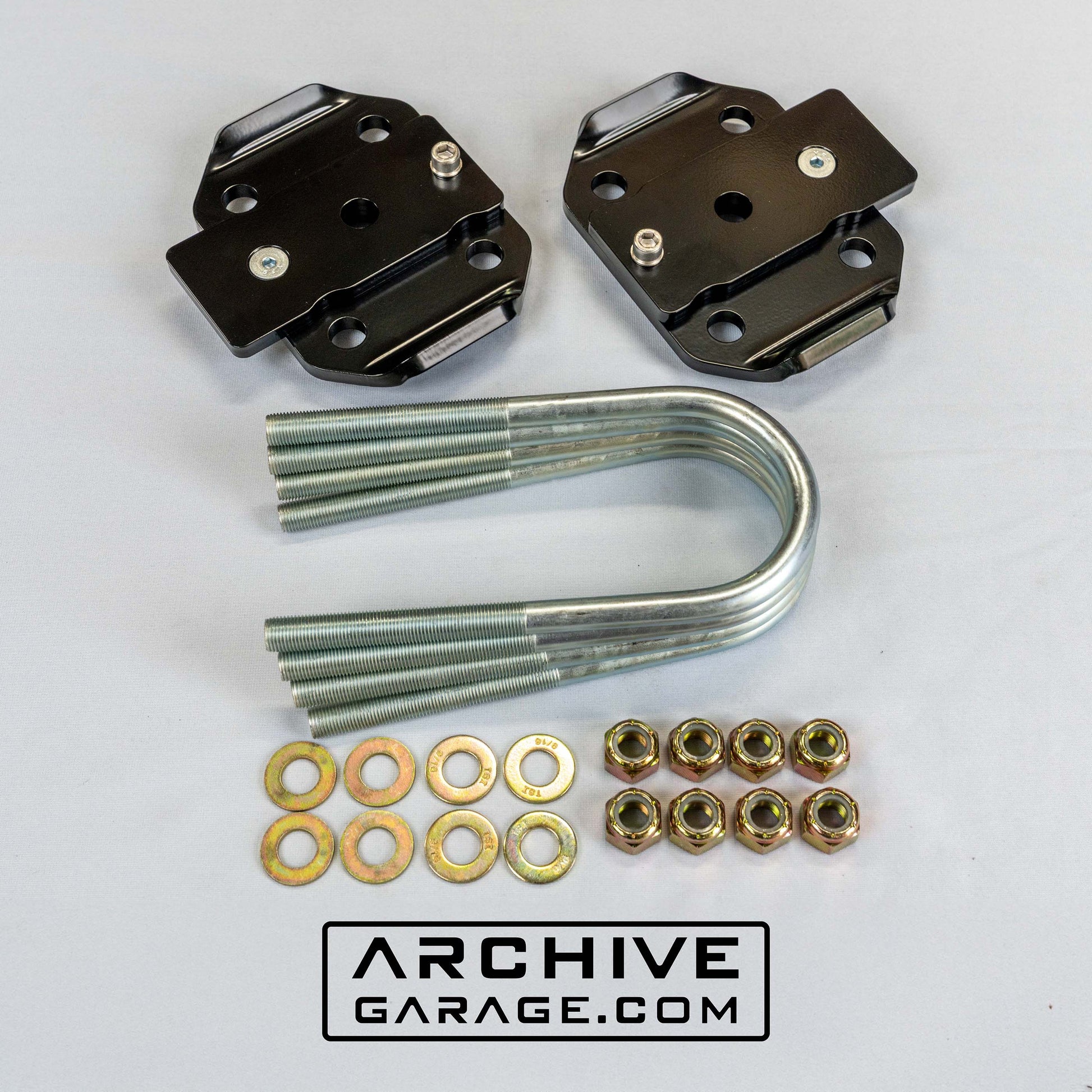

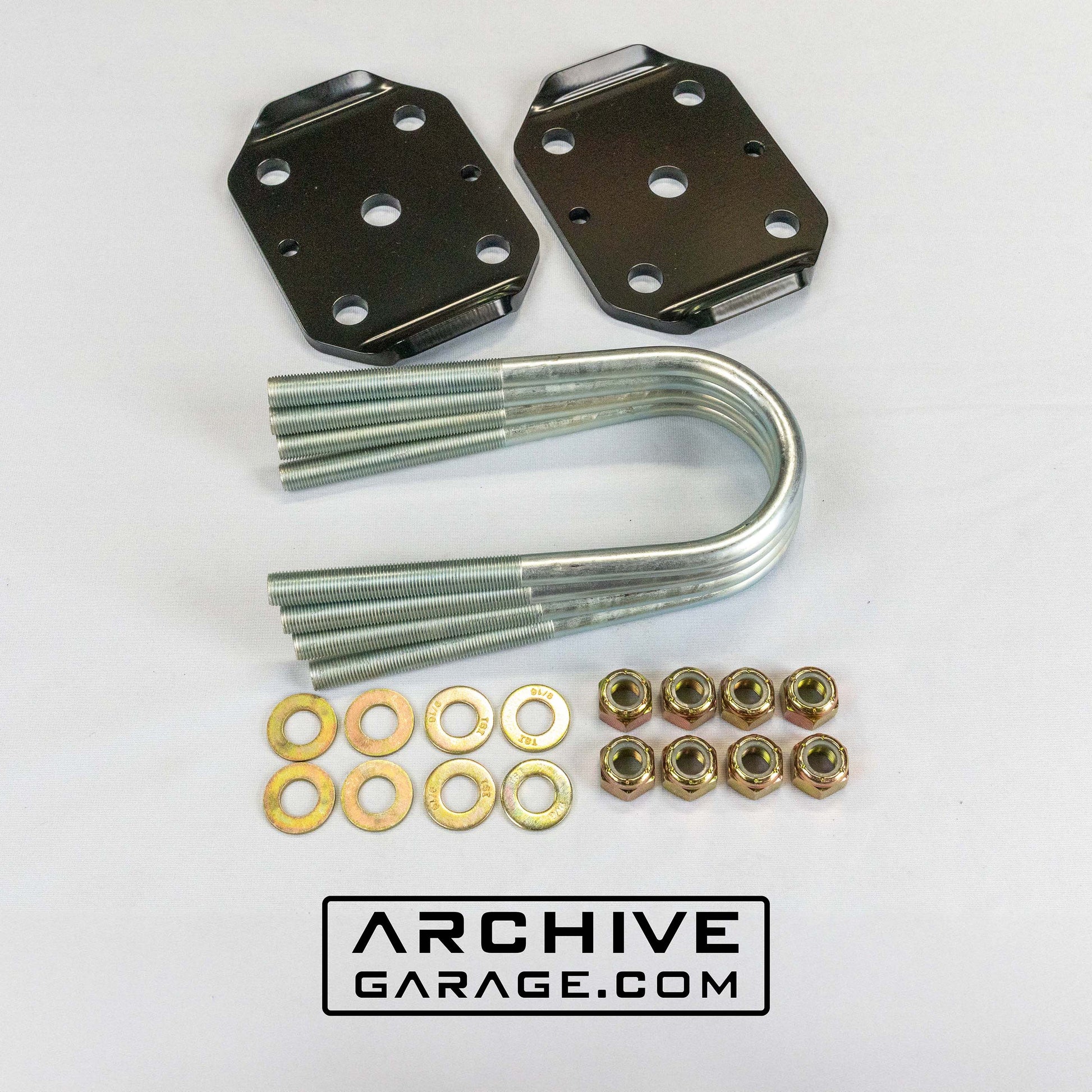

-Option 1: U-bolt plates and U-bolts only, no bumpstops, no kickout, NOT FOR AIR BUMPS

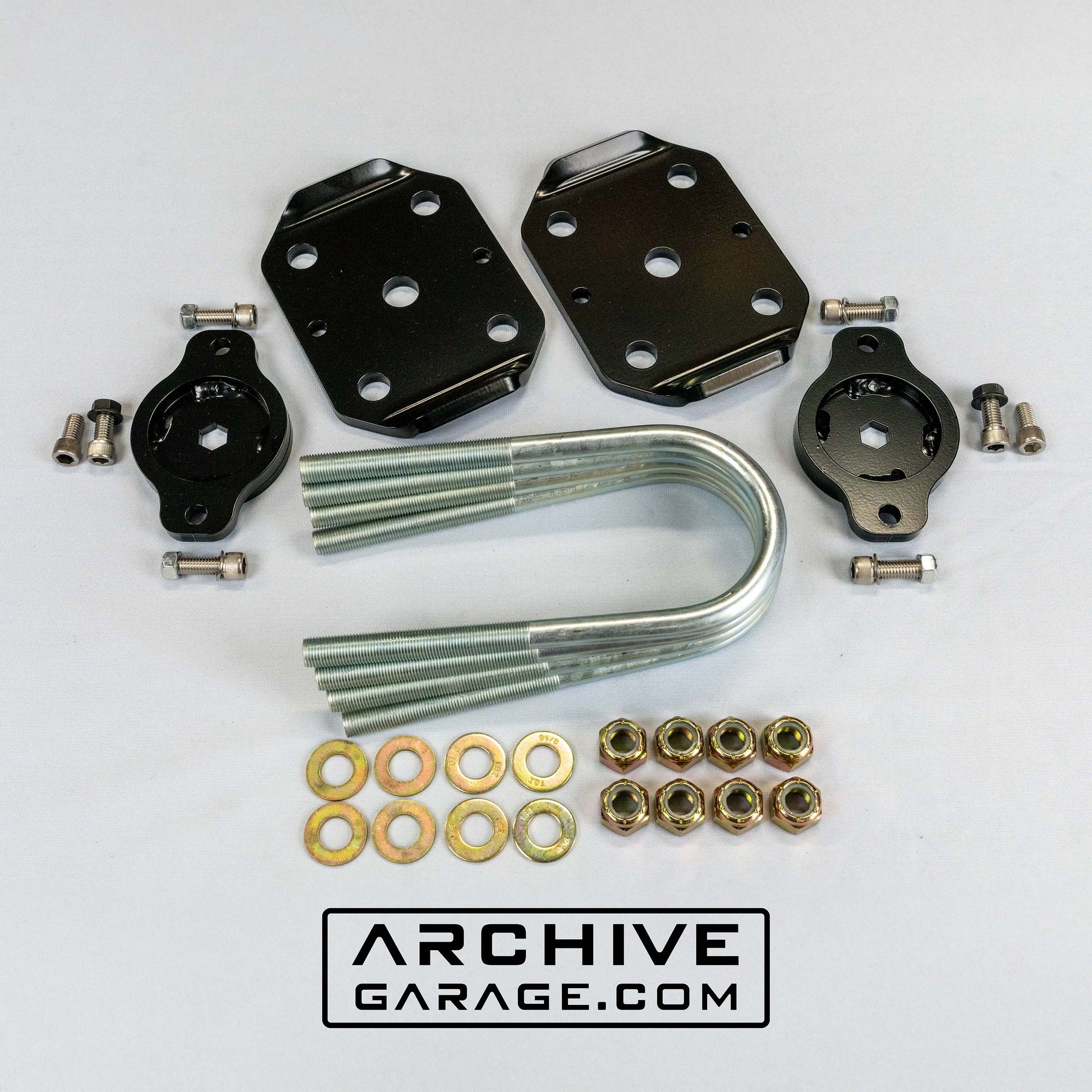

-Option 2: LowPro Pedestal (only 5/8" tall) for thread in bumpstop, with 3/8-16 female thread, without bumpstops (customer-supplied Super Bumps or Timbrens)

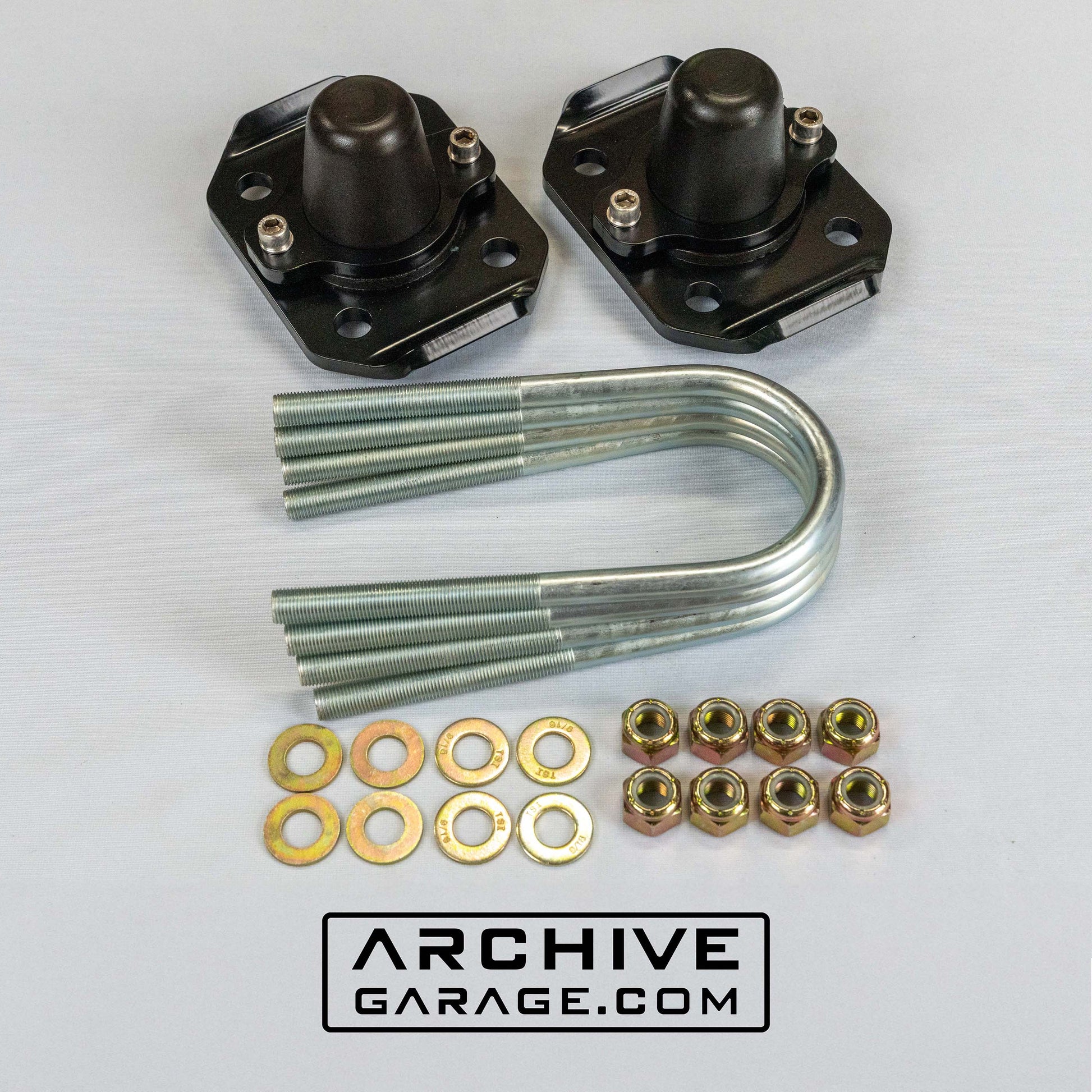

-Option 3: Archive Speed bumps- Standard Density w/ hold-down ring (Tacomas w/ up to 1,500lbs added to axle)
-Option 4: Archive Speed bumps- High Density w/ hold-down ring (Heavy Tacomas over 1,500 lbs added to axle)
-Option 5: U-bolt plates + bolt-on air bump plates w/ kick out (**compatibility not guaranteed w/ all kits**)
Shipping
Shipping
Free Priority shipping, in all 50 States. (PR and Guam Free but ~1 week)
$55 USD extra shipping to Canada

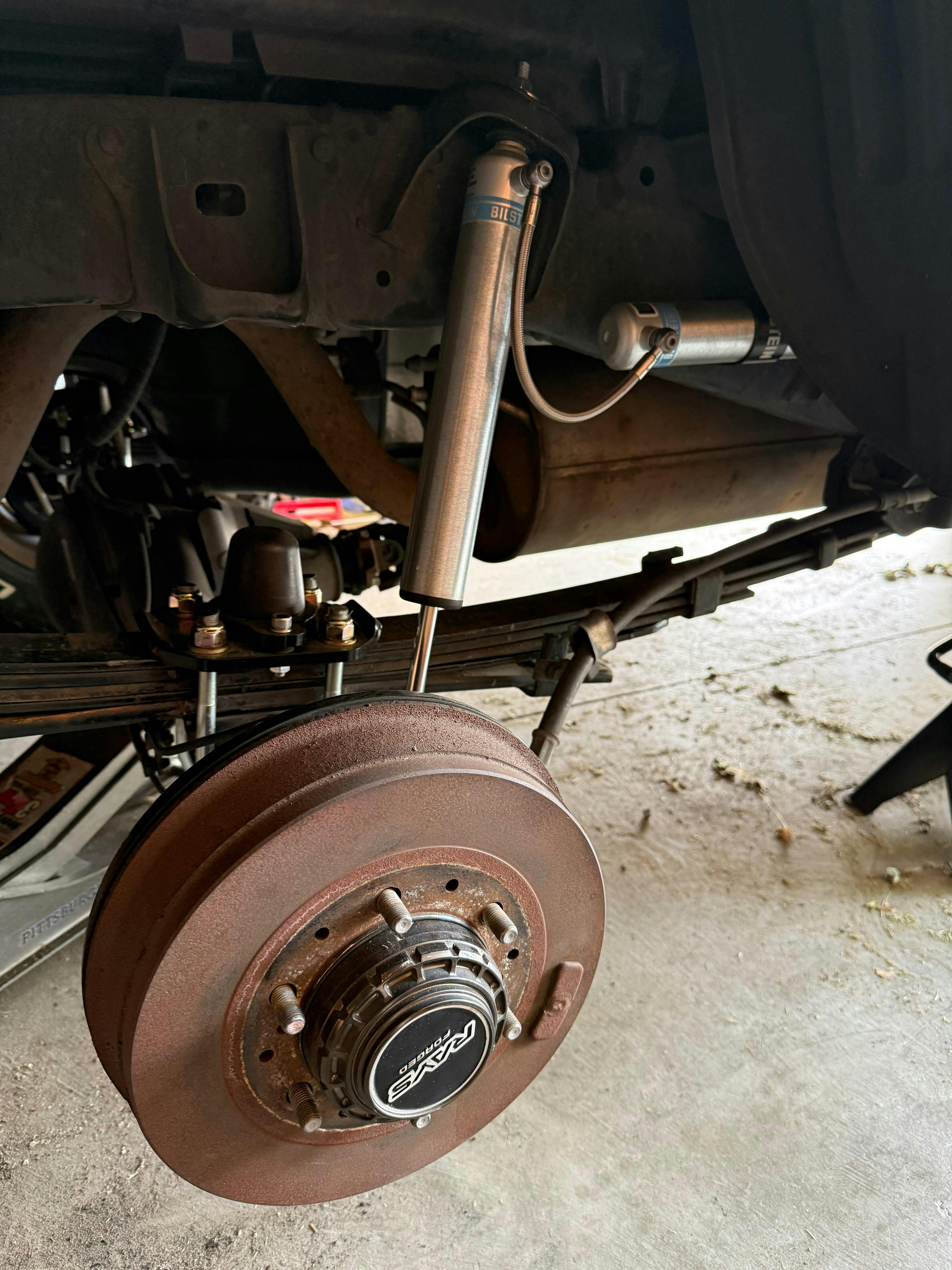

Flip kit and bumps to go with the Archive add-a-leaf with some Bilstein 5100’s just to beef up the rear of the Tacoma, and add a little lift and it turned out great. Straightforward install, have not been on the bumps yet but I’m guessing they’ll be far better than the stock bricks that were under there.
Awesome product. Super well built
Paired these with 5160 and the Traveler add a leaf and loving the ride it is super smooth and not jittery . Do yourself a favor now and just buy the ubolt flip kit!
Got these bad boys installed just a couple of days ago. Super thick. Super high quality. The bolts are a bit longer than I would have liked as we cut a lot of material off once they were installed. However, the quality is Top notch. Haven't bottomed out on the bump stops yet, but I'm super happy with the way they sit and the material and workmanship.
Rear axle of my 2005 tundra was rotted out, figured I would do this u bolt flip (opt 3) while replacing the housing. Did not disappoint. Shipped fast, had clear instructions, and it will be nice to have bump stops again. Strongly contemplating the hammer hangers next!
