MADE IN USA!!

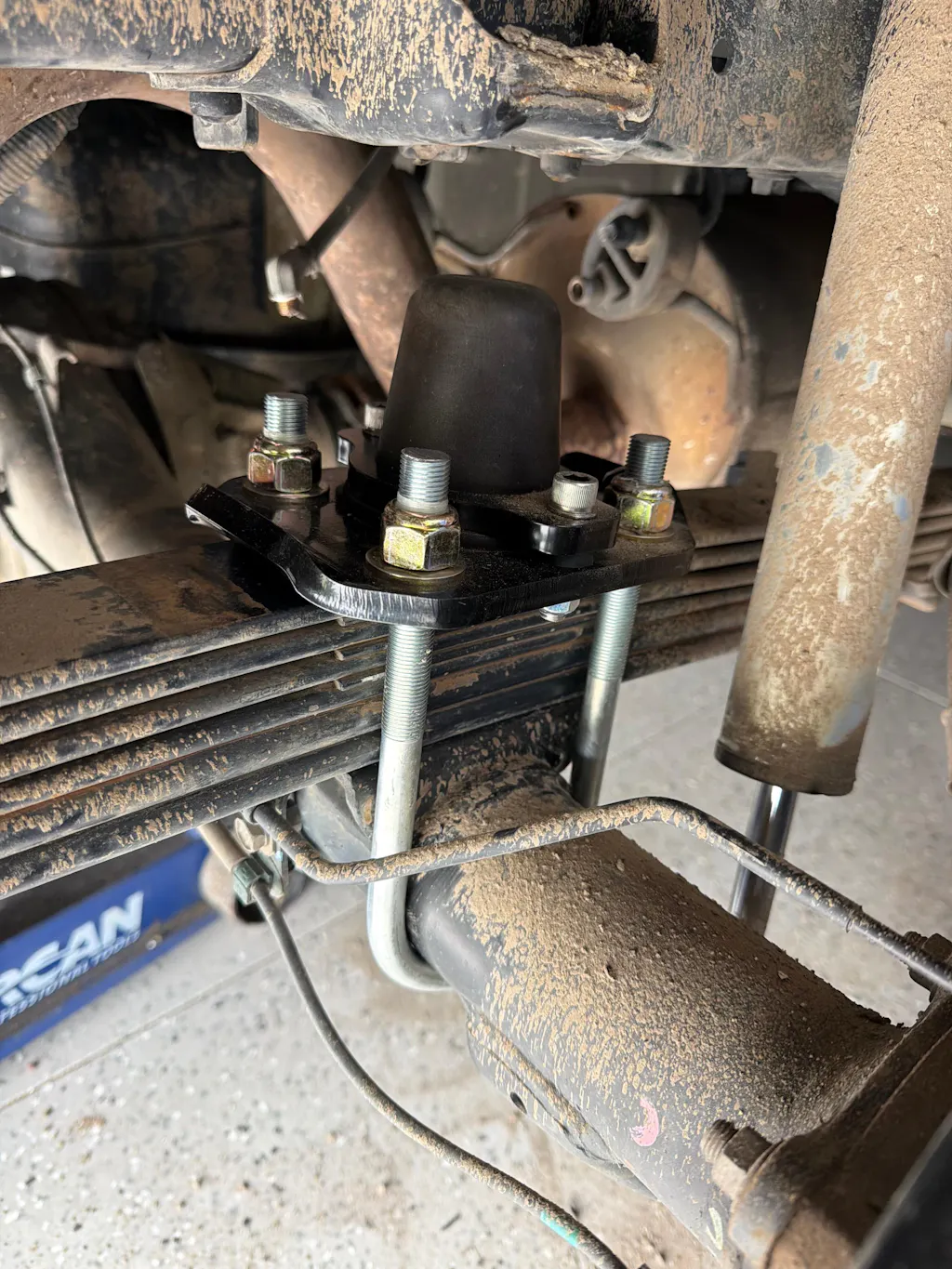

Archive's Stealth HD U-bolt flip kit fits stock 60mm (2.375") to 2.5" wide springs max, bolts are kept tight to pack to prevent your leaves from rotating out of alignment.
This kit allows you to remove bumpstops without removing the U-bolts & U-bolt plates and having to repeat torque sequence.
If you buy this kit, email us for a discount when you need replacement U-bolts

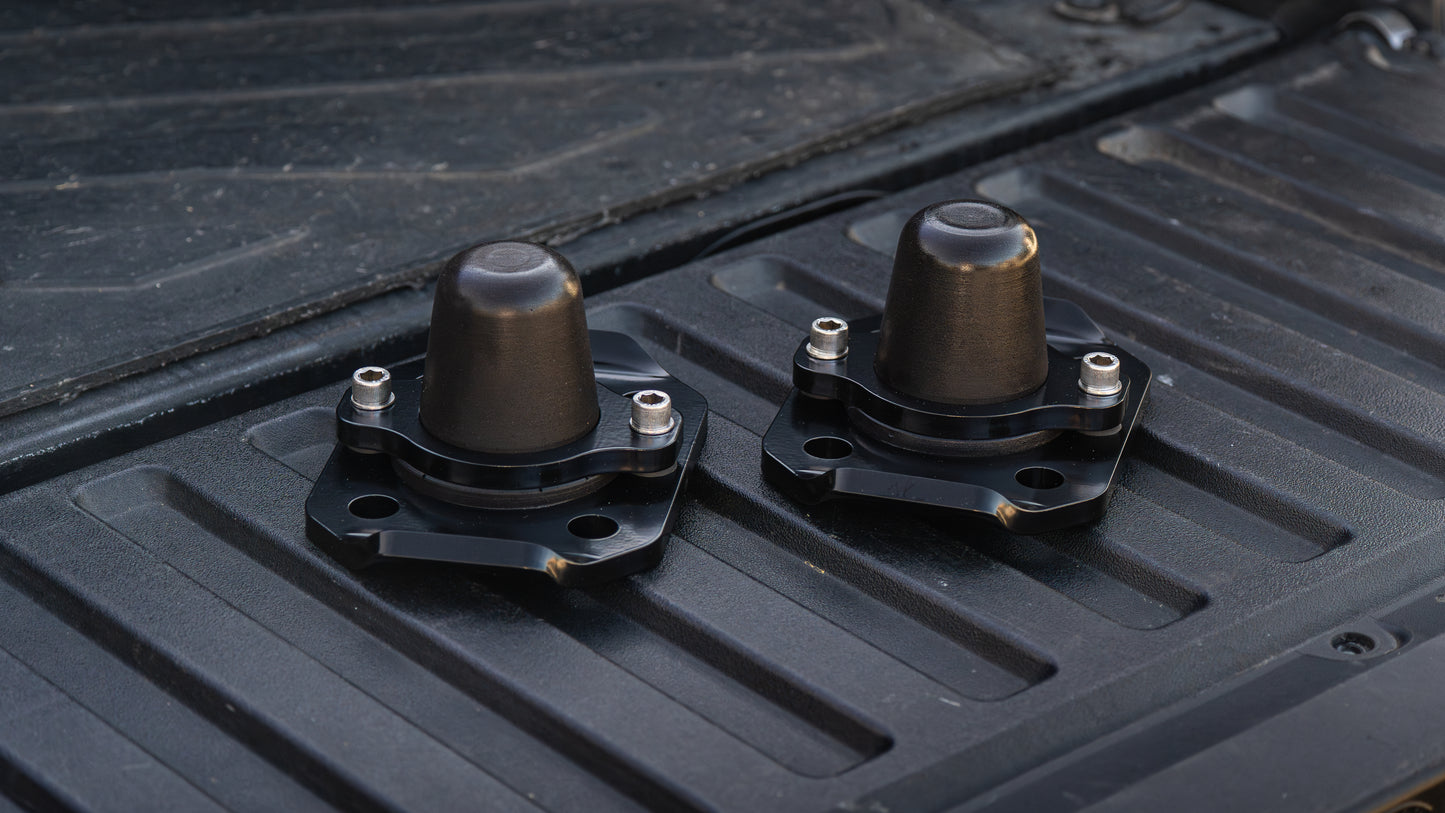

Option 3 & 4 Archive Speed bumps are 100% designed by us for:
1) soft engagement
2) max bump travel
3) slowing weight down over more distance for progressive feel
4) no center hole in bump to fill up with water
5) two tough 3/8" bolts to hold bumpstops down
6) High strength Steel (30% stronger than competition)
Note: Spring center bolt threads must be trimmed to a max height of 1/2" above the spring
Kit includes:

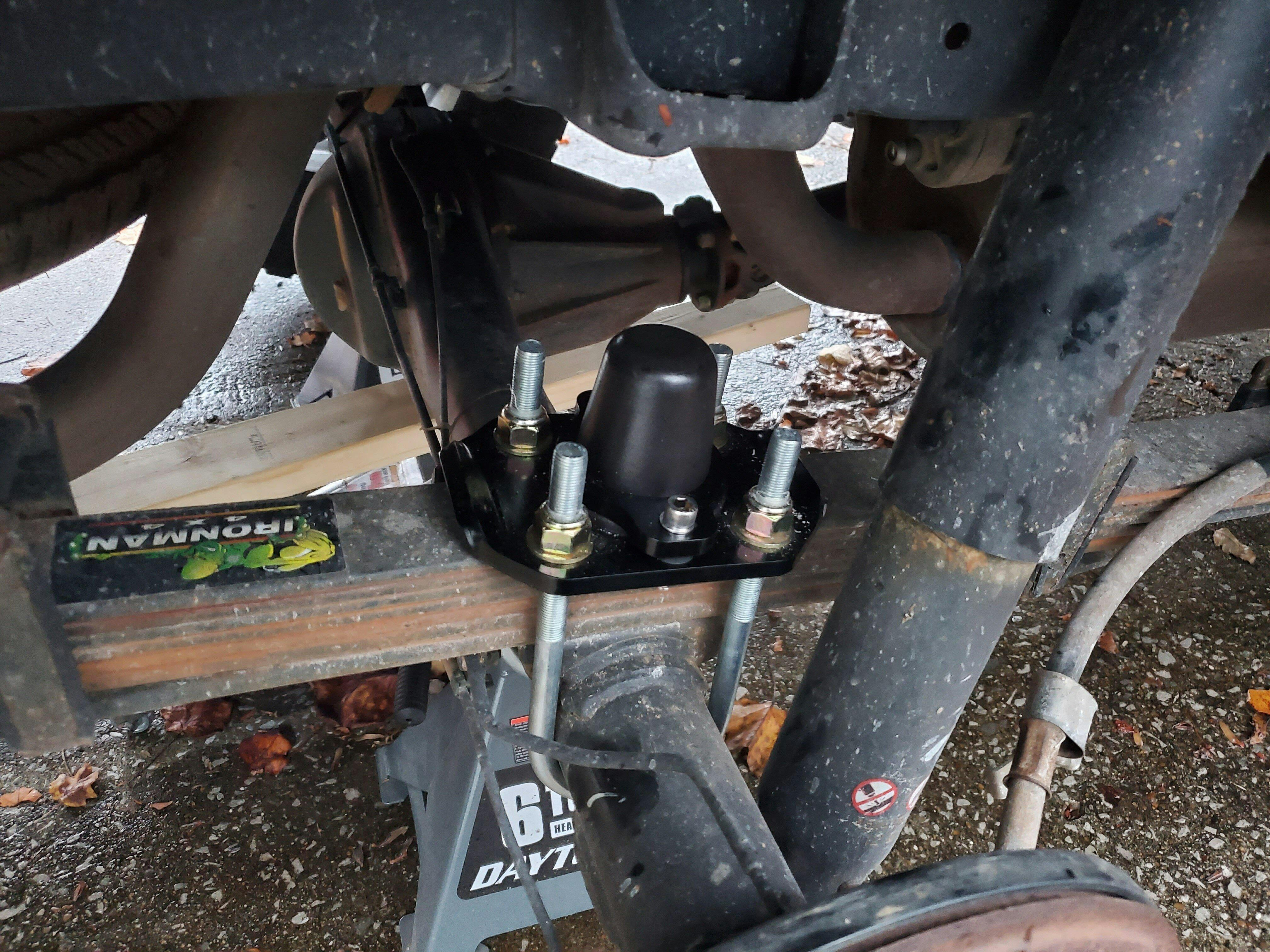

(2) HD powder coated U-bolt plates w/ kick out for air bumps, made from high strength HSLA 50ksi steel (30% stronger than mild/A36).
(4) HD 9/16" round U-bolts (3 1/4" x 8 1/2"), Clamps leaf packs up to 3.5" thick (Trim to fit)
Product Fitment Notes
Product Fitment Notes
-Option 1: U-bolt plates and U-bolts only, no bumpstops, no kickout, NOT FOR AIR BUMPS
-Option 2: LowPro Pedestal (only 5/8" tall) for thread in bumpstop, with 3/8-16 female thread, without bumpstops (customer-supplied Super Bumps or Timbrens)
-Option 3: Archive Speed bumps- Standard Density w/ hold-down ring (Tacomas w/ up to 1,500lbs added to axle)
-Option 4: Archive Speed bumps- High Density w/ hold-down ring (Heavy Tacomas over 1,500 lbs added to axle)
-Option 5: U-bolt plates + bolt-on air bump plates w/ kick out (**compatibility not guaranteed w/ all kits**)
Shipping
Shipping
Free Priority shipping, in all 50 States. (PR and Guam Free but ~1 week)
$55 USD extra shipping to Canada

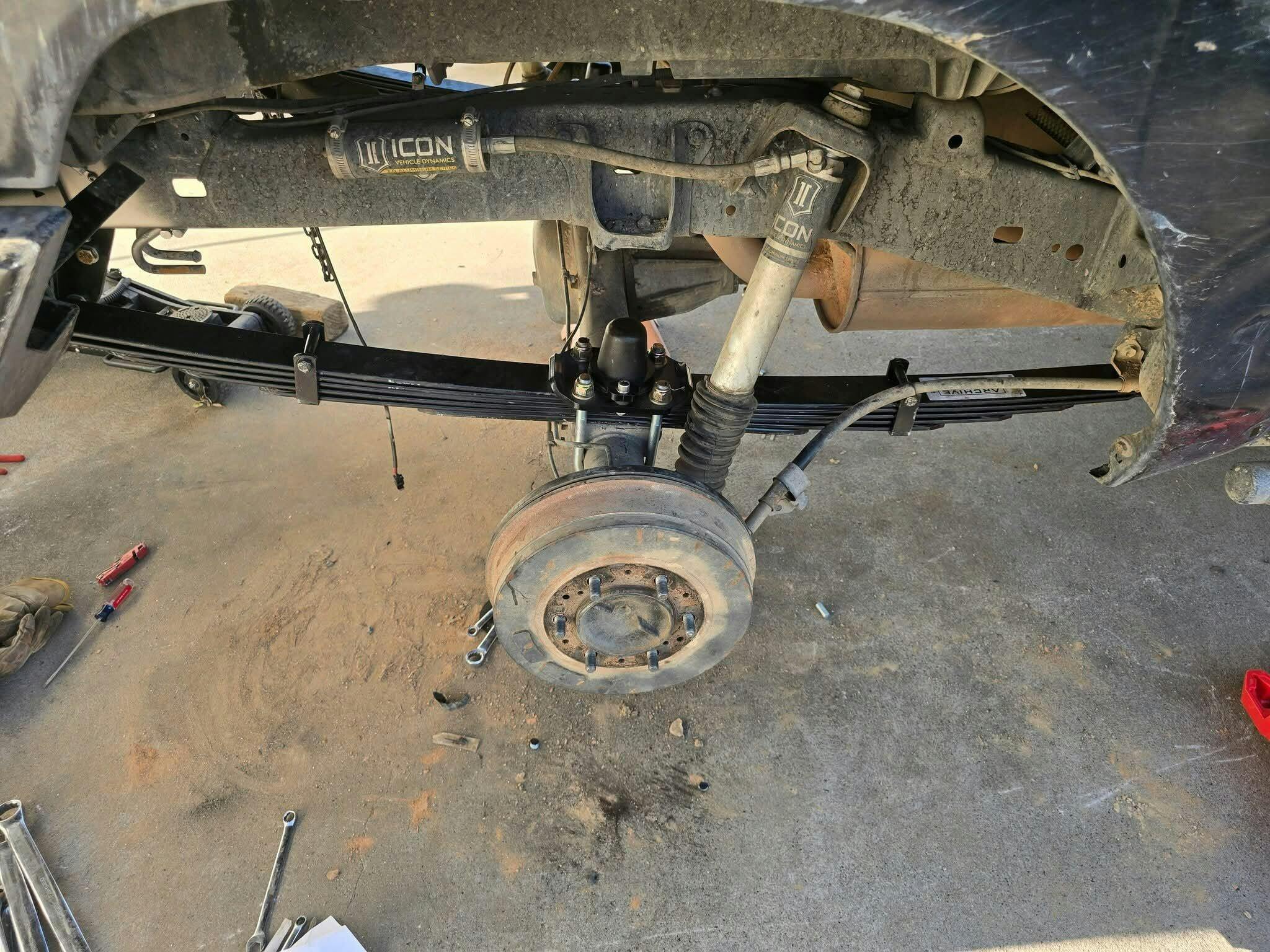

Super easy install and came with everything I needed, zero issues. Ride quality seems great. I don't typically bottom out my suspension often, so it's hard to say how the bump stops will ride, but I trust they are better than stock. Plenty of room on the bolts to go over the OME DAKAR HD Heavy leaf spring packs.
Awsome kit. Easy install. Have yet to test off road but everything is working awsome. Eric is a great resource and will repond to any questions you have. I am doing the full kit and waiting to do the short relocation kit on a weekend. Great product.

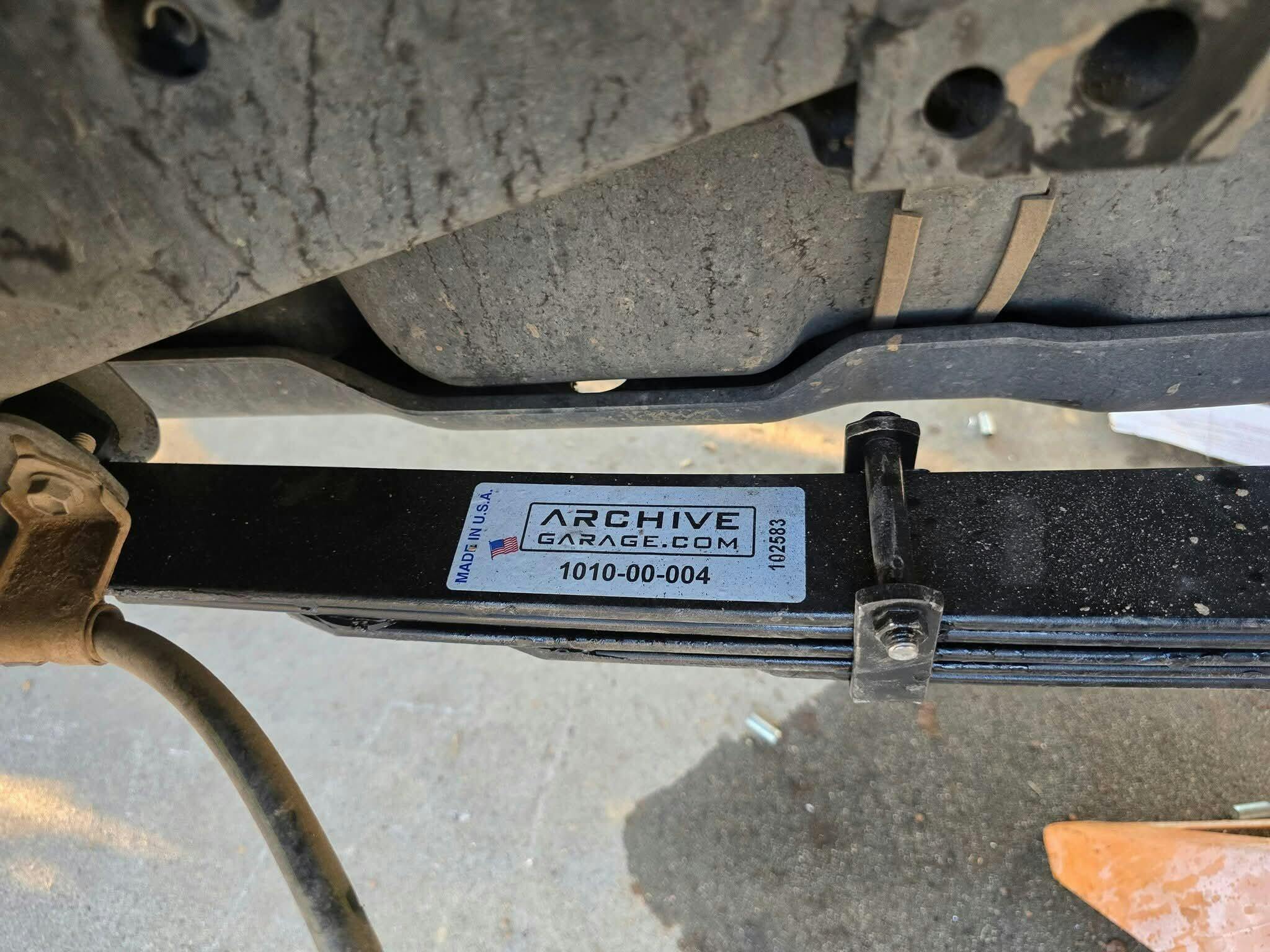

Flip kit and bumps to go with the Archive add-a-leaf with some Bilstein 5100’s just to beef up the rear of the Tacoma, and add a little lift and it turned out great. Straightforward install, have not been on the bumps yet but I’m guessing they’ll be far better than the stock bricks that were under there.
Awesome product. Super well built
