Tacoma Ultimate Package Fitment Chart
| 2005-2023 Tacoma DCSB | |||
| Leaf Pack | Est. Lift Amount | Axle Tube to Frame Bottom | |

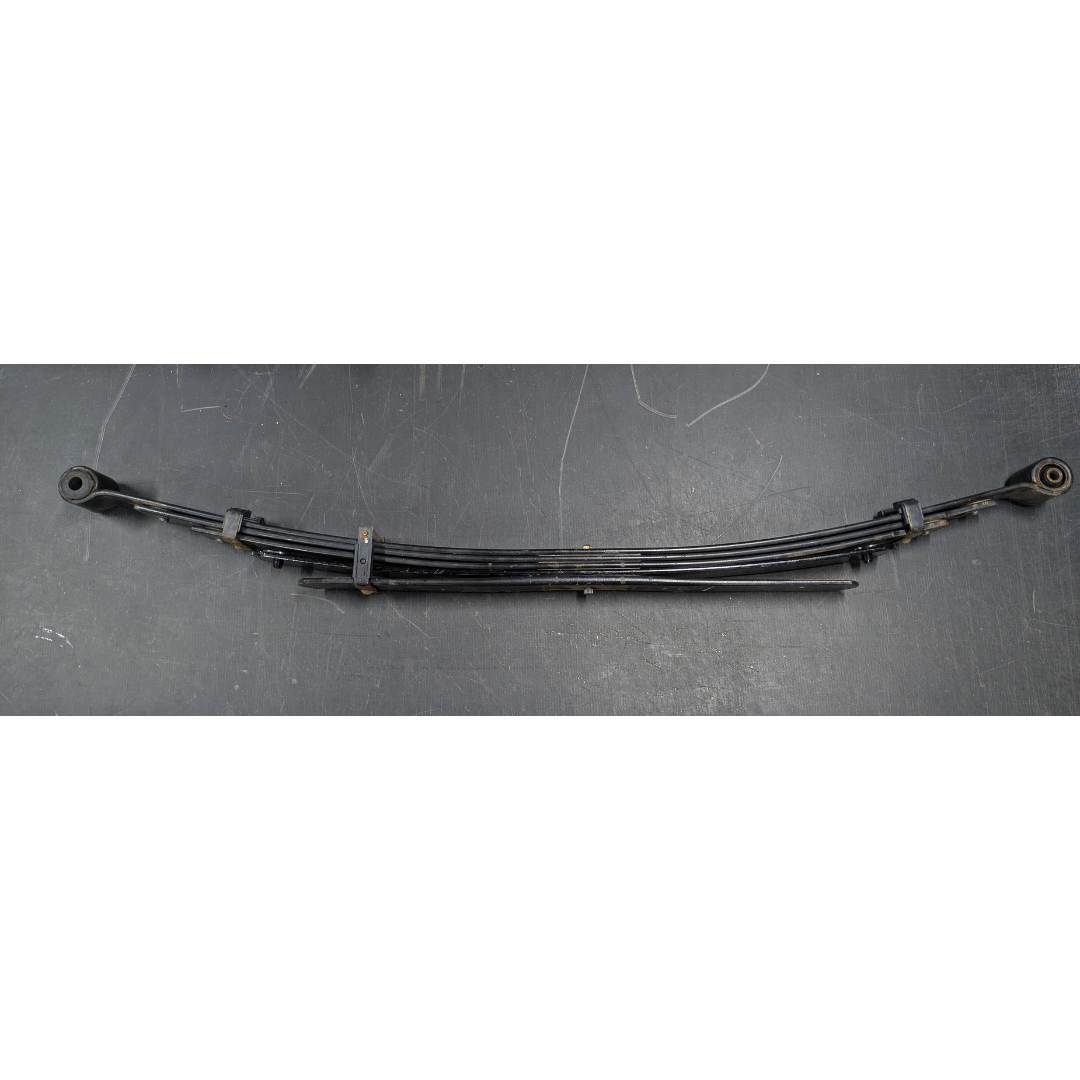

| Stock 3/1 - 0lbs | 0in | 8.25in | |
| Archive LD - 0lbs | 2.25in | 10.5in | |
| Archive LD - 300lbs | 1.5in | 9.75in | |
| Archive MD - 0lbs | 3.0in | 11.25in | |
| Archive MD - 300lbs | 2.5in | 10.75in | |
| Archive MD - 600lbs | 2.0in | 10.25in | |
| Archive HD - 600lbs | 3.0in | 11.25in | |
| Archive HD - 1250lbs | 2.0in | 10.25in | |
| Archive XD - 1250lbs | 3.0in | 11.25in | |
| Archive XD - 1750lbs* | 2.5in | 10.75in | |
| Archive MAXD - 1750lbs* | 3.0 | 11.25in | |
| Archive MAXD - 2500lbs* | 2.5in | 10.75in | |
|
|||
|
Recommended Shocks (Confirmed Fit & Performance) |
|||
| Shock | Brand | Part Number | |
| Accutune Fox Factory RR 2.5x12 | Fox | 981-25-002-ARG | |
| Accutune Fox Factory RR 2.5x14 | Fox | 981-25-003-ARG | |
| AccuTune Fox Factory RR DSC 2.5x12 | Fox | 981-25-002-ARG | |
| AccuTune Fox Factory RR DSC 2.5x14 | Fox | 981-25-003-ARG | |
| AccuTune King RR 2.5x12 | King | King PR2512-SS | |
| AccuTune King RR 2.5x14 | King | King PR2514-SS | |
| AccuTune King RR 2.5x12 w/ adjuster | King | King PR2512-SS-A | |
| AccuTune King RR 2.5x14 w/ adjuster | King | King PR2514-SS-A | |
| ADS Smooth Body 2.5x12 | ADS | 250-SBR12-W00 | |
| ADS Smooth Body 2.5x12 w/adjuster | ADS | 250-SBR12-WA0 | |
| *If using HD Springs or XD 12in is best | |||
| *For additional options reach out to shock company to confirm with specs below | |||
| Shock Specs Needed | |||
| 2.5" & 3.0" Smooth Body Shock Remote Resi | |||
| Shock Travel | Fittings/Spacers | ||
| 12-14in | Standard rod-end shocks (1.5" wide, 1/2" bolt) | ||
| 2.5" Bypass | |||
| Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order. | |||
| -Many have successfully installed 2.5" bypasses, but 3.0 bypass will not fit | |||
| -Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper. | |||
| -We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones. | |||
| Wheel Fitment Needed (Smoothy) | |||
| Wheel Backspacing | |||
| 4.75" BS + 1.25" Spacer for 285s | |||
| 3.5" BS - no spacer for 285s | |||
| 3.5" BS + 1.25" for 35x12.5s or 315s | |||
| Offset Visualizer App | |||
