Hammer Hangers® - 2000-2006 Tundra HD Shackle Hangers (base)

Hammer Hangers® - 2000-2006 Tundra HD Shackle Hangers (base)

Regular price $480.00 USD
Regular price Sale price $480.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Details:

-WHAT THEY  DO: Noticeably improve ride quality and reduce rear sway.  Improve handling, durability and droop travel potential over flexible stock hangers.

-FOR Spring-Over-Axle SOA ONLY, NOT COMPATIBLE WITH SUA!  SUA conversion is a very poor choice for 1g Tundra expo rigs.

-Compatible with EVERY SOA spring pack on the market.

-Supports 12"+ travel with Archive Shackleton springs/aftermarket springs, with appropriate 12" shocks, see Archive Shock Relocation

-Fits stock to fully built rigs, and does not require any other modifications to experience ride, handling, durability benefits

-Properly align parallel to leaf springs

-These DO NOT add lift

-These DO NOT force the leaf spring into more negative arch like shackle flips do.

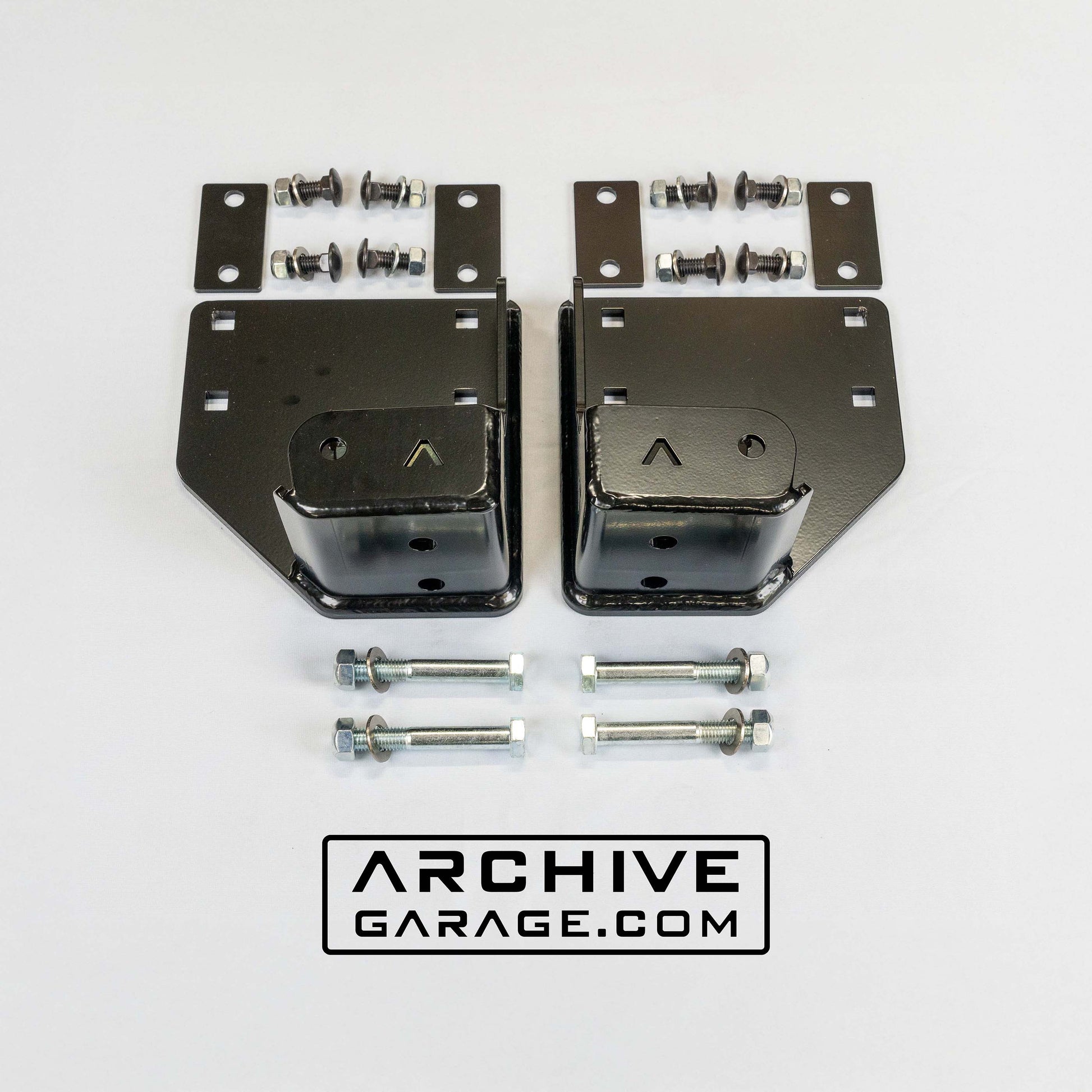

Hammer Hangers® kit includes:

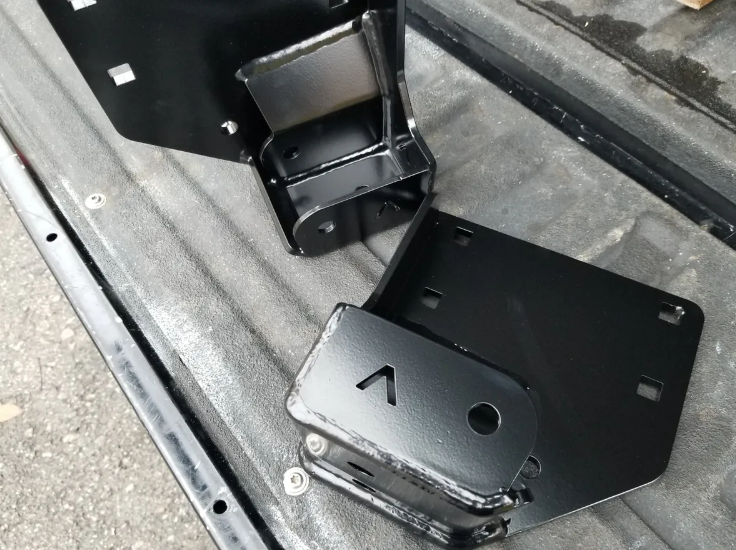

(1) Right hand & (1) Left hand hanger, laser cut and CNC bent 3/8"+ 1/4" HSLA 50,000psi steel (30% stronger)plate structure, fully MIG welded.  >>>2 stage powder coat: blast, zinc base prime, semi-gloss black top coat<<<

(4) M14 Class 10.9 (Grade 8 equiv) shackle bolts and lock nuts

(8) Grade 8 carriage bolts & lock nuts, fits factory rivet bolt pattern (drill to ½”)

(4) Frame rail backing plates for frame support

Written instructions provided.  If you have longer shocks, longer brake line ~24"-26"

Shackle Options:

-Reusing stock shackles (3.9") and OEM rubber bushings OK to reuse

-Select quality poly bushings & sleeves for the stock shackle (3.9") for 12" travel (must remove the stock metal/rubber bushings)

-4.0" Archive shackles jig-built from 3/16" HSLA steel + 1/4" wall DOM tube, assembled w/ poly bushings & grease fitting.

DIY Cross Tube Option (*Requires the spare tire be relocated*):

1.  DIY your own cross tube: select (2) bolting flanges and (4) bolts.  Adding cross tube option DOES further improve ride quality (~20% of hanger improvement), by increasing frame rigidity, stopping frame from splaying out, tock cross member has some flex.


Product Fitment Notes

Shipping

Free Shipping in 50 States, contact for cost to other locations.
