Archive Explorer Series "ERIKSON" Tacoma Lift Leaf Springs Tacoma 2005-2023

Archive Explorer Series "ERIKSON" Tacoma Lift Leaf Springs Tacoma 2005-2023

$990.00 USD
$950.00 USD $990.00 USD
Sale Sold out
Archive Explorer Series "ERIKSON" Tacoma Lift Leaf Springs Tacoma 2005-2023 (Select Capacity)
STEALTH HD TOYOTA U-BOLT FLIP KIT - 2G 3G 2005-2023 TACOMA & 1G 2000-2006 TUNDRA (Copy) (Options)

>>PRICE INCLUDES SHIPPING TO LOWER 48 STATES ONLY<<

LEAD TIME:  In stock except for LD are sold out!   LD ETA is early October

Archive Explorer Series ERIKSON Tacoma leaf packs are designed for severe duty off road travel. Made in USA with 5160 steel, tip insert pads, full military wrap yet won't scrape hanger, bolted spring clips, and high quality poly bushings included in price. Carefully designed to NOT have interference issues that are so common with aftermarket springs in the Tacoma market. Get your perfect spring rate by following our Archive Method Here.

Quantity of 1 is for 1 PAIR of leaf springs and includes high quality bushings and sleeves.  U-bolts (not included) available here:  Square OE Style U-bolts or  Round U-bolt flip style

Explorer Series:

The ERIKSON springs are named after explorer Leif Erikson, who was a Norse explorer and is said to have been the first European to set foot in continental America, approximately 500 years before Columbus.

Fitment Chart

Product Fitment Notes


2005-2023 Tacoma DCSB
Leaf Pack Est. Lift Amount Axle Tube to Frame Bottom
Stock 3/1 - 0lbs 0in 8.25in
Archive LD - 0lbs 2.25in 10.5in
Archive LD - 300lbs 1.5in 9.75in

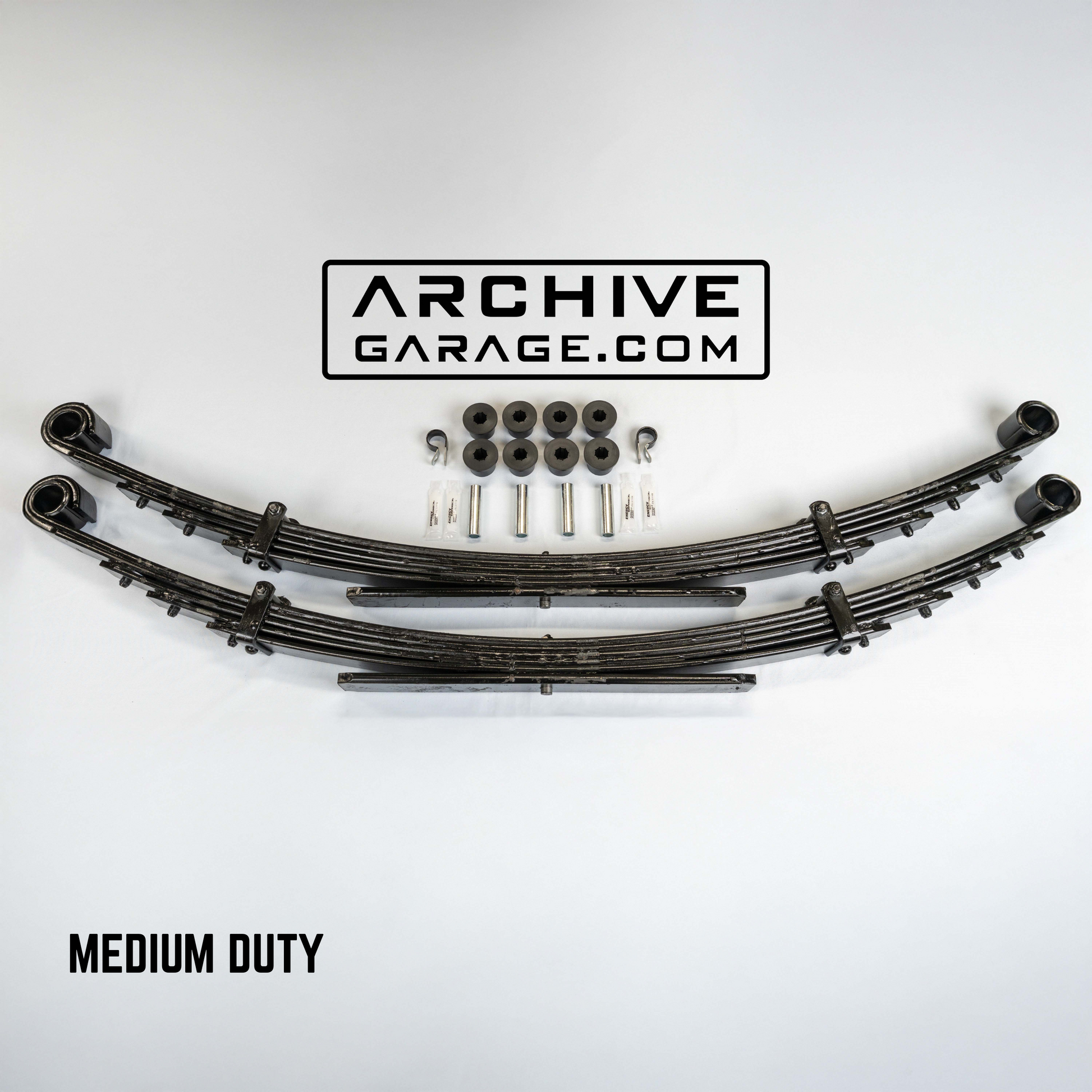

Archive MD - 0lbs 3.0in 11.25in
Archive MD - 300lbs 2.5in 10.75in
Archive MD - 600lbs 2.0in 10.25in

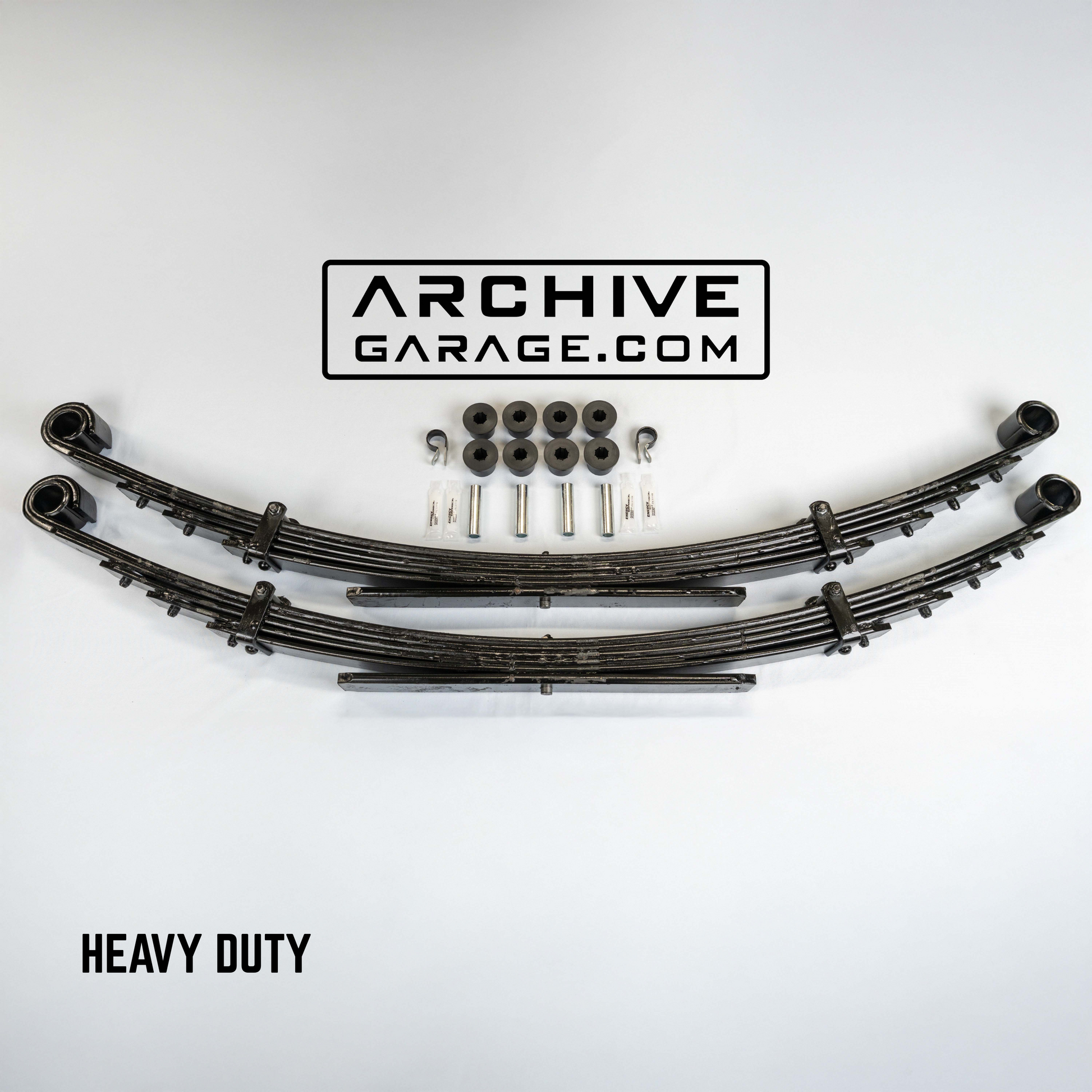

Archive HD - 600lbs 3.0in 11.25in
Archive HD - 1250lbs 2.0in 10.25in

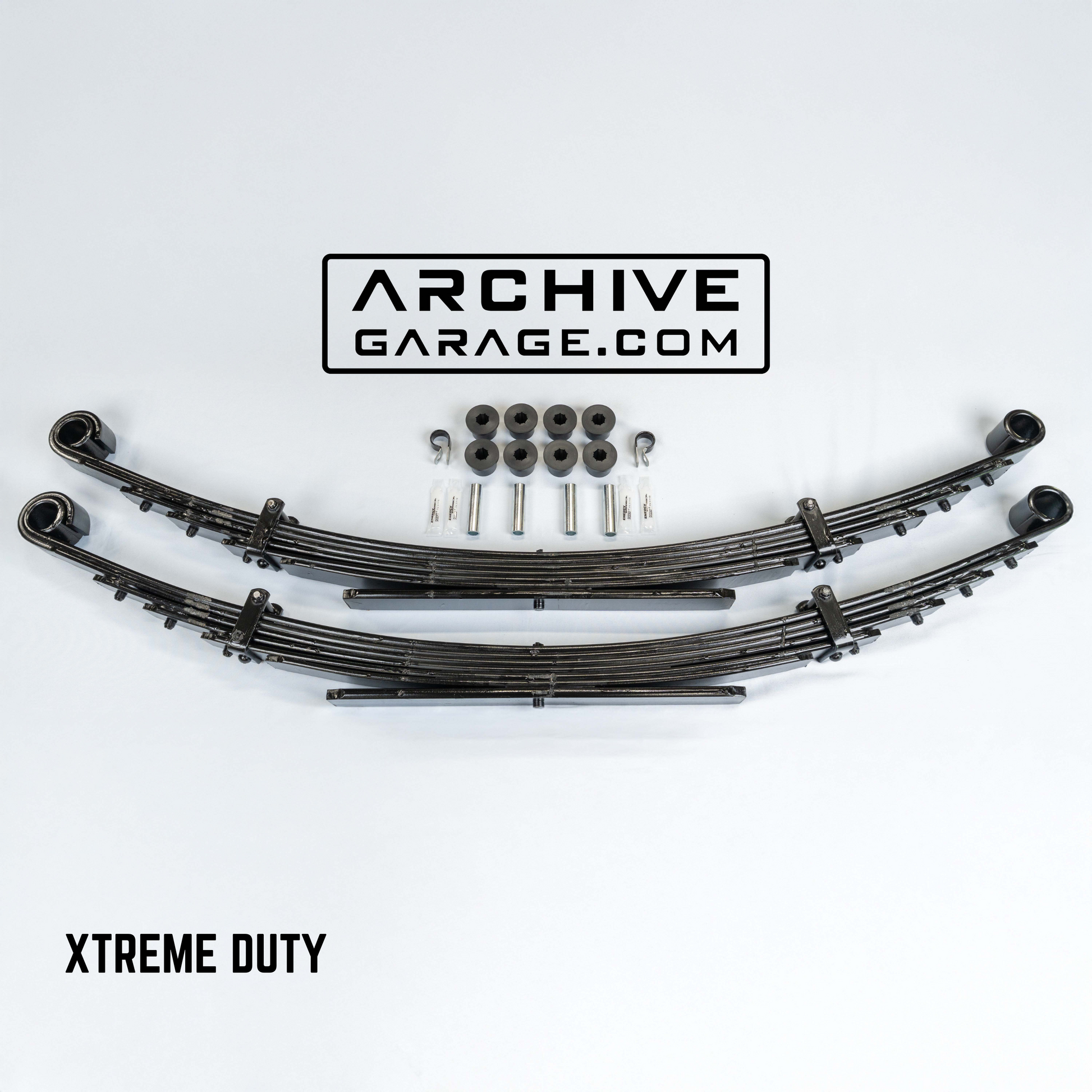

Archive XD - 1250lbs 3.0in 11.25in
Archive XD - 1750lbs* 2.5in 10.75in

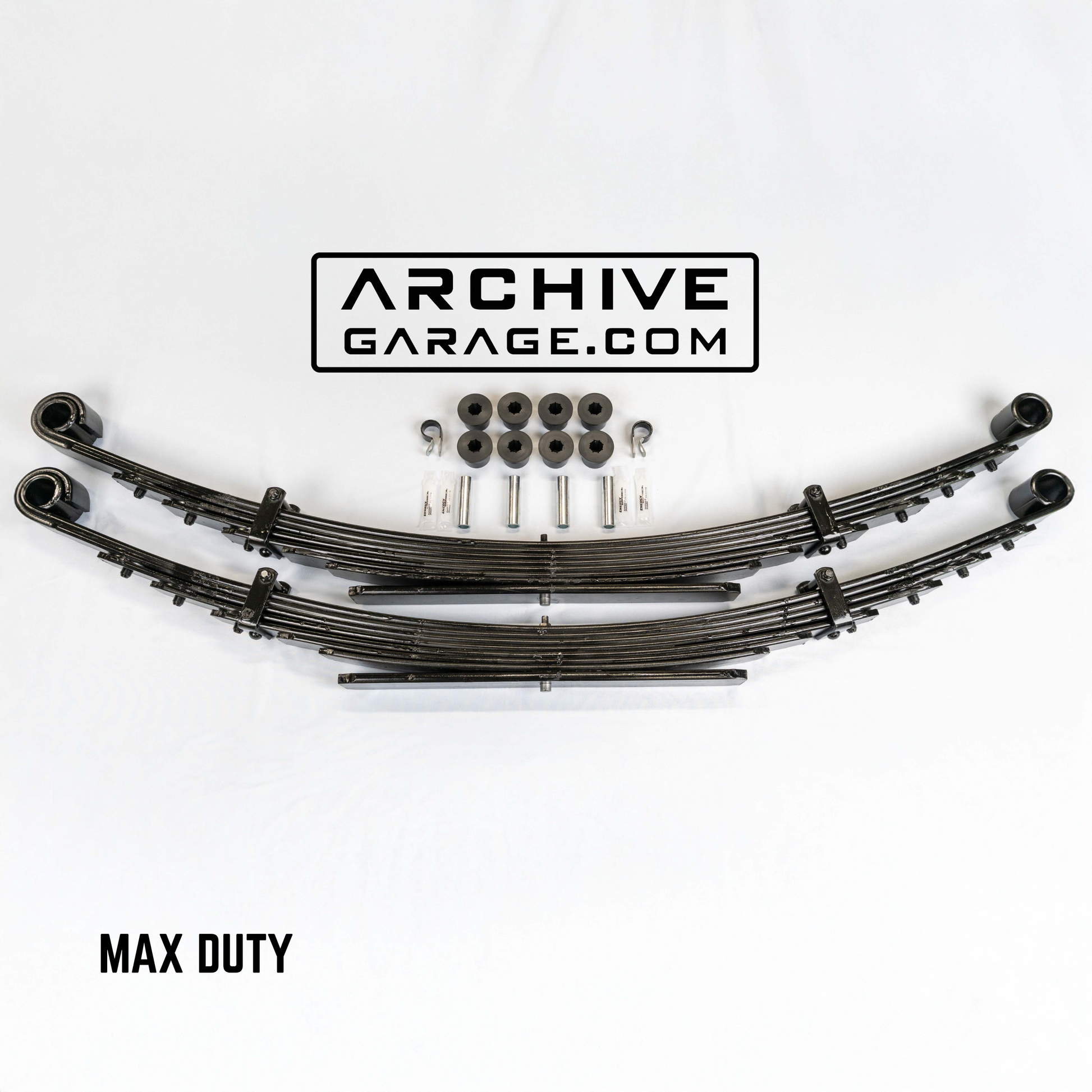

Archive MAXD - 1750lbs* 3.0 11.25in
Archive MAXD - 2500lbs* 2.5in 10.75in
*Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR.  Owner assumes all risk when exceeding Toyota's GVWR or GAWR. Archive springs give your heavy Tacoma safer handling

Recommended Shocks (Confirmed Fit & Performance)
Shock Brand Part Number
Accutune Fox Factory RR 2.5x12 Fox 981-25-002-ARG
Accutune Fox Factory RR 2.5x14 Fox 981-25-003-ARG
AccuTune Fox Factory RR DSC 2.5x12 Fox 981-25-002-ARG
AccuTune Fox Factory RR DSC 2.5x14 Fox 981-25-003-ARG
AccuTune King RR 2.5x12 King King PR2512-SS
AccuTune King RR 2.5x14 King King PR2514-SS
AccuTune King RR 2.5x12 w/ adjuster   King King PR2512-SS-A
AccuTune King RR 2.5x14 w/ adjuster King  King PR2514-SS-A
ADS Smooth Body 2.5x12 ADS 250-SBR12-W00
ADS Smooth Body 2.5x12 w/adjuster ADS 250-SBR12-WA0
*If using HD Springs or XD 12in is best
*For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel Fittings/Spacers
12-14in Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, but 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed (Smoothy)
Wheel Backspacing
4.75" BS + 1.25" Spacer for 285s
3.5" BS - no spacer for 285s
3.5" BS + 1.25" for 35x12.5s or 315s
Offset Visualizer App




Shipping

Shipping cost included in price for 48 LOWER STATES ONLY. Additional costs apply for other areas
