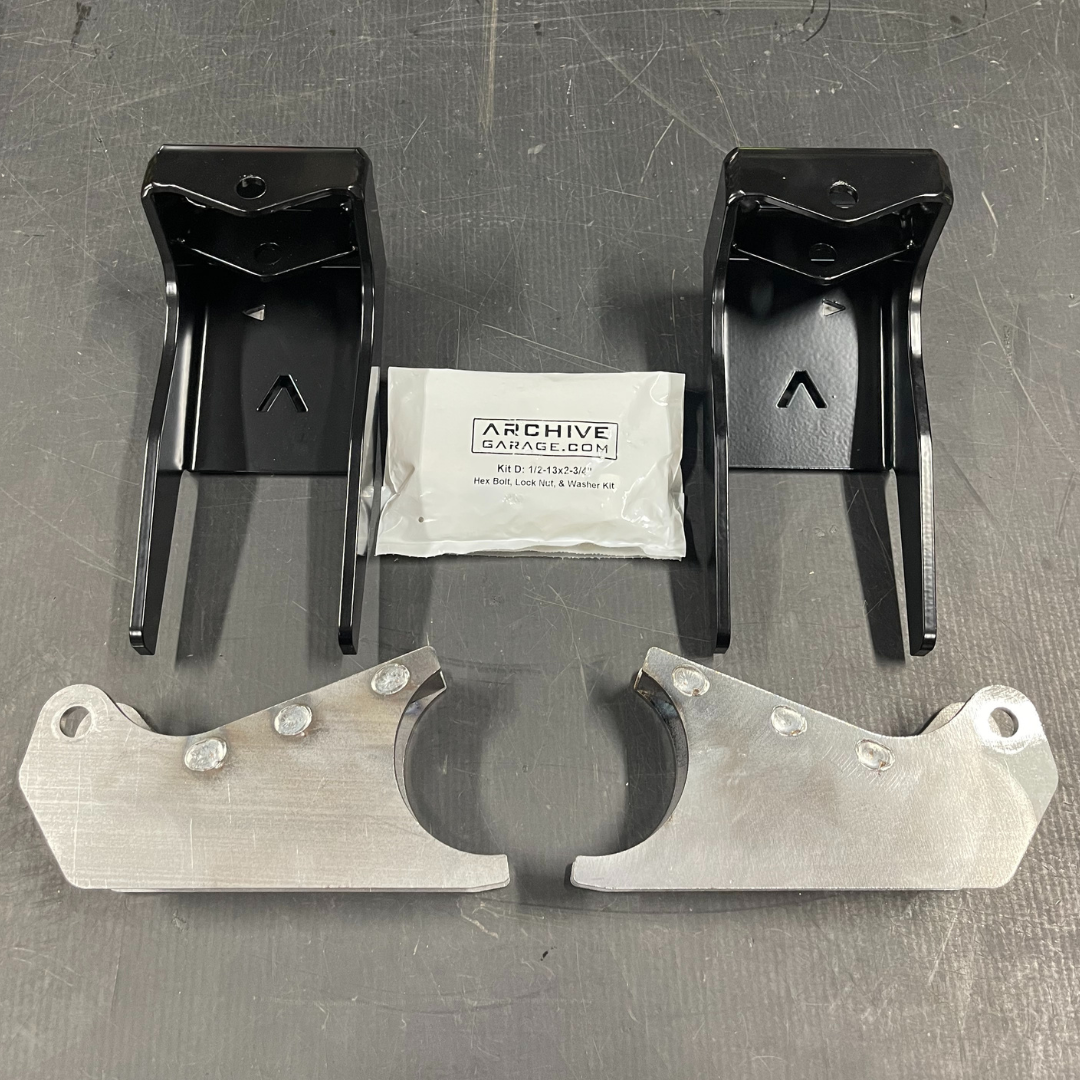

2022+ Tundra Rear Shock Relocation Tower Kit
2022+ Tundra Rear Shock Relocation Tower Kit
Regular price
$320.00 USD
Regular price
$350.00 USD
Sale price
$320.00 USD
Unit price
/
per
Low stock: 6 left
Couldn't load pickup availability
Share
The Archive Garage 2022+ Tundra Rear Shock Relocation Tower Kit allows fitting up to 12" travel shocks without spacing bumpstops or lifting rear of truck. The stock truck has a tiny amount of droop travel and articulation, and you'll top the shocks out (fully extend) even during street driving.
- The relo kit can stuff up to 19" collapsed length.
- Mount tabs are 1.5" wide with 1/2" thru bolt (M12 bolts avail.)
- Fit up to 3.0 3-tube bypasses (Check out 1G Raptor offerings here)
- NOT FOR COILOVERS, smooth-body shocks only. You do not want to move the bending point of the frame rails forward from where Toyota engineered the coil buckets.
- Extended brake hoses are required!
- May not require wheel spacers or even aftermarket wheels depending on the shock body size used.
Good Value Basic Fox 2.0x12.1 Remote Reservoir (18.35" collapsed)
https://accutuneoffroad.com/product/fox-2-0-x-12-performance-series-remote-reservoir/
Product Overview
Product Overview
Product Fitment Notes
Product Fitment Notes
2005-2023 Tacoma DC/SB | |||
Leaf Pack | Estimated Lift Amount AG Leafs | Axle-Tube-to-Frame-Bottom | |
Stock 3/1-stock weight | 0in | 8.25in | |
Archive MD - 0lbs | 3.25in | 11.5in | |
Archive MD - 300lbs | 2.5in | 10.75in | |
Archive MD - 600lbs | 2in | 10.25in | |
Archive HD - 600lbs | 3in | 11.25in | |
Archive HD - 1250lbs | 2in | 10.25in | |
Archive XD - 1250lbs | 3in | 11.25in | |
Archive XD - 1750lbs | 2.5in | 10.75in | |
|
|||
Recommended Shocks (Confirmed Fit & Performance) |
|||
Shock | Brand | Part Number | |
Accutune Fox Factory RR 2.5x12 | Fox | 980-02-102 | |
Accutune Fox Factory RR 2.5x14 | Fox | 980-02-103 | |
AccuTune Fox Factory RR DSC 2.5x12 | Fox | 980-06-102-SRT | |
AccuTune Fox Factory RR DSC 2.5x14 | Fox | 980-06-103-SRT | |
AccuTune King RR 2.5x12 | King | King PR2512-SS | |
AccuTune King RR 2.5x14 | King | King PR2514-SS | |
AccuTune King RR 2.5x12 w/ adjuster | King | King PR2512-SS-A | |
AccuTune King RR 2.5x14 w/ adjuster | King | King PR2514-SS-A | |
ADS Smooth Body 2.5x12 | ADS | 250-SBR12-W00 | |
ADS Smooth Body 2.5x12 w/adjuster | ADS | 250-SBR12-WA0 | |
*If using HD Springs or XD 12in is best | |||
*For additional options reach out to shock company to confirm with specs below | |||
Shock Specs Needed | |||
2.5" & 3.0" Smooth Body Shock Remote Resi | |||
Shock Travel | Fittings/Spacers | ||
12-14in | Standard rod-end shocks (1.5" wide, 1/2" bolt) | ||
2.5" Bypass | |||
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order. | |||
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit | |||
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper. | |||
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones. | |||
Wheel Fitment Needed | |||
Wheel Backspacing | |||
4.75" + 1.25in Spacer or Equivlent Out Board | |||
Offset Visualizer App |
