1st Gen Dodge Front Spring Shackle Hanger kit 1972-1993 W150 W250 W350 Cummins Ram Ramcharger

1st Gen Dodge Front Spring Shackle Hanger kit 1972-1993 W150 W250 W350 Cummins Ram Ramcharger

Regular price $350.00 USD
Regular price Sale price $350.00 USD
Sale Sold out
Shipping calculated at checkout.
Frame Bolt Size:
3/8" Thick Shackles W/ Bolts

Low stock

NEW:

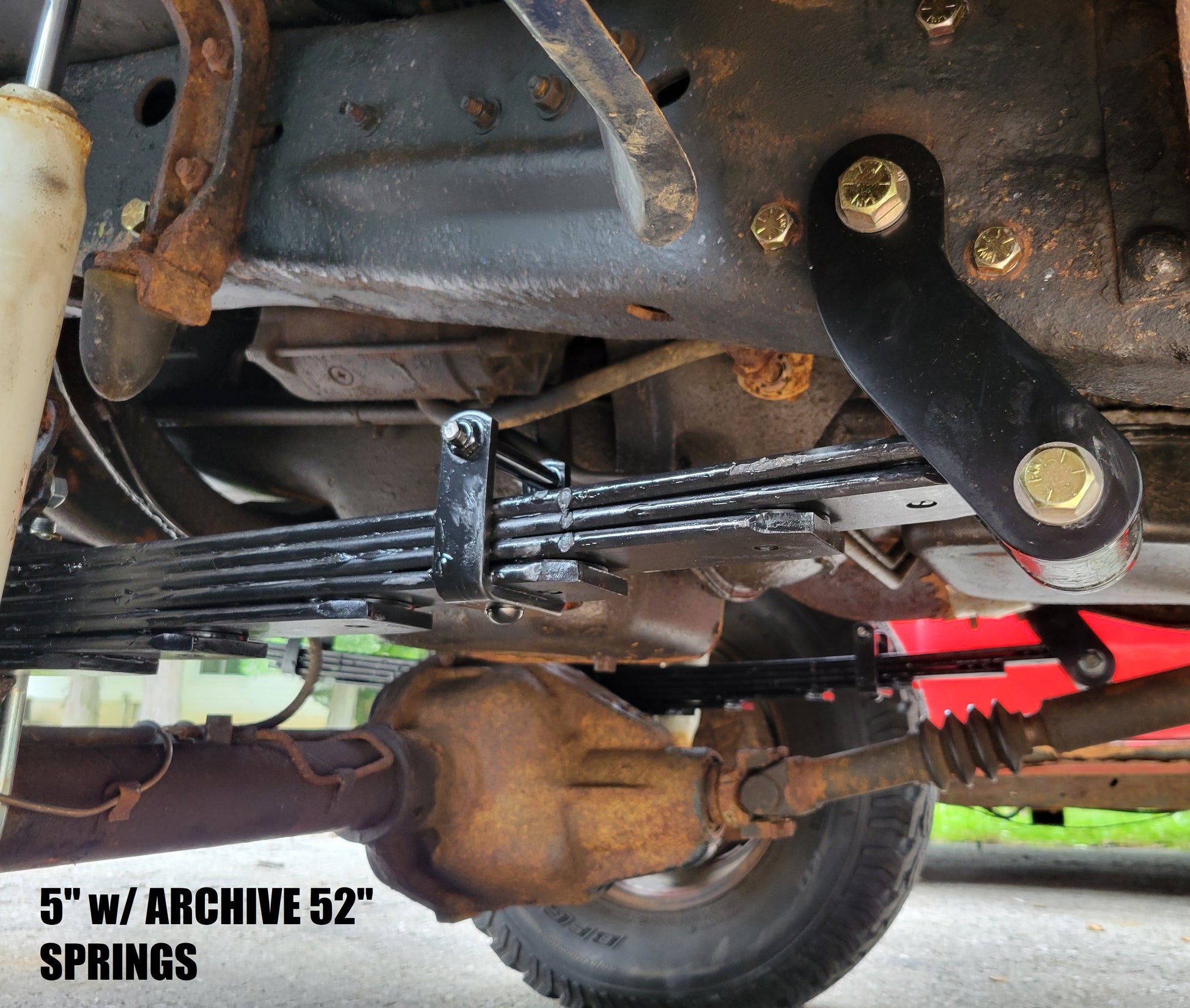

-Boomerang shackles for bolt clearance w/ long springs

-Revised 2WD-->4WD conversion template locates off of frame features

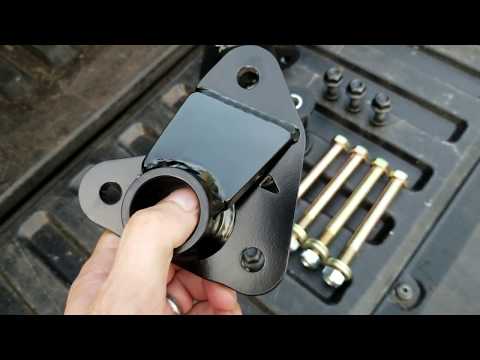

Video----> Archive Garage Front Shackle Hangers

-Fits Dodge Ram trucks and Ramcharger Trailduster 1972 to 1993.

-NO HOLE SAW REQUIRED to fit W 4x4 trucks like the other brands require!

-Easy install without taking body parts off your truck in as little as 2 hours.

-Simply grind off stock rivet heads on outside of frame, punch 'em out, grind just a hair off top of frame hole (~1/16", deformed from stamping)

-Fits without drilling out original rivet holes if you select 7/16" frame bolts

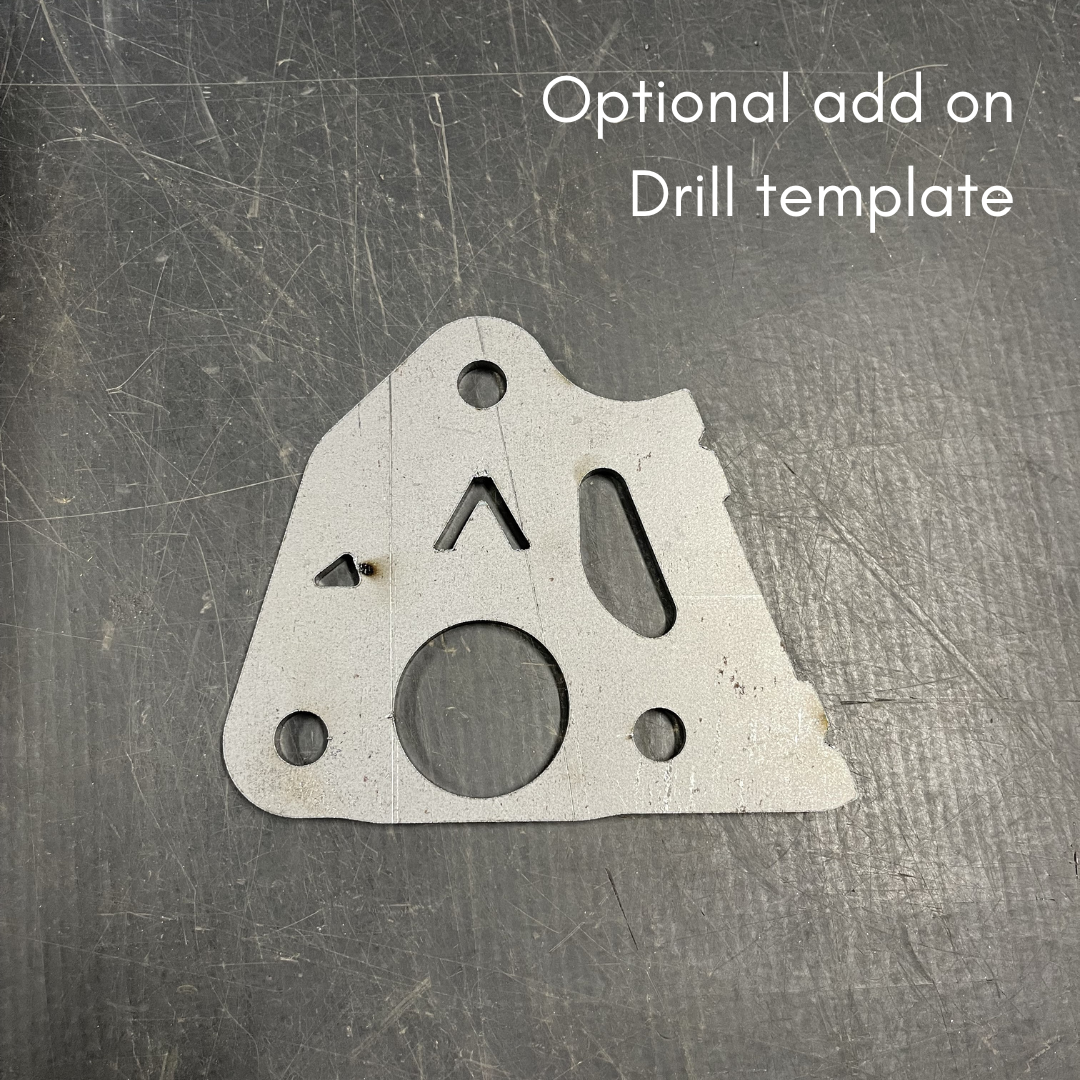

-Great for 4x4 conversion, optional conversion drill template locates off of frame features (only available for kit buyers)

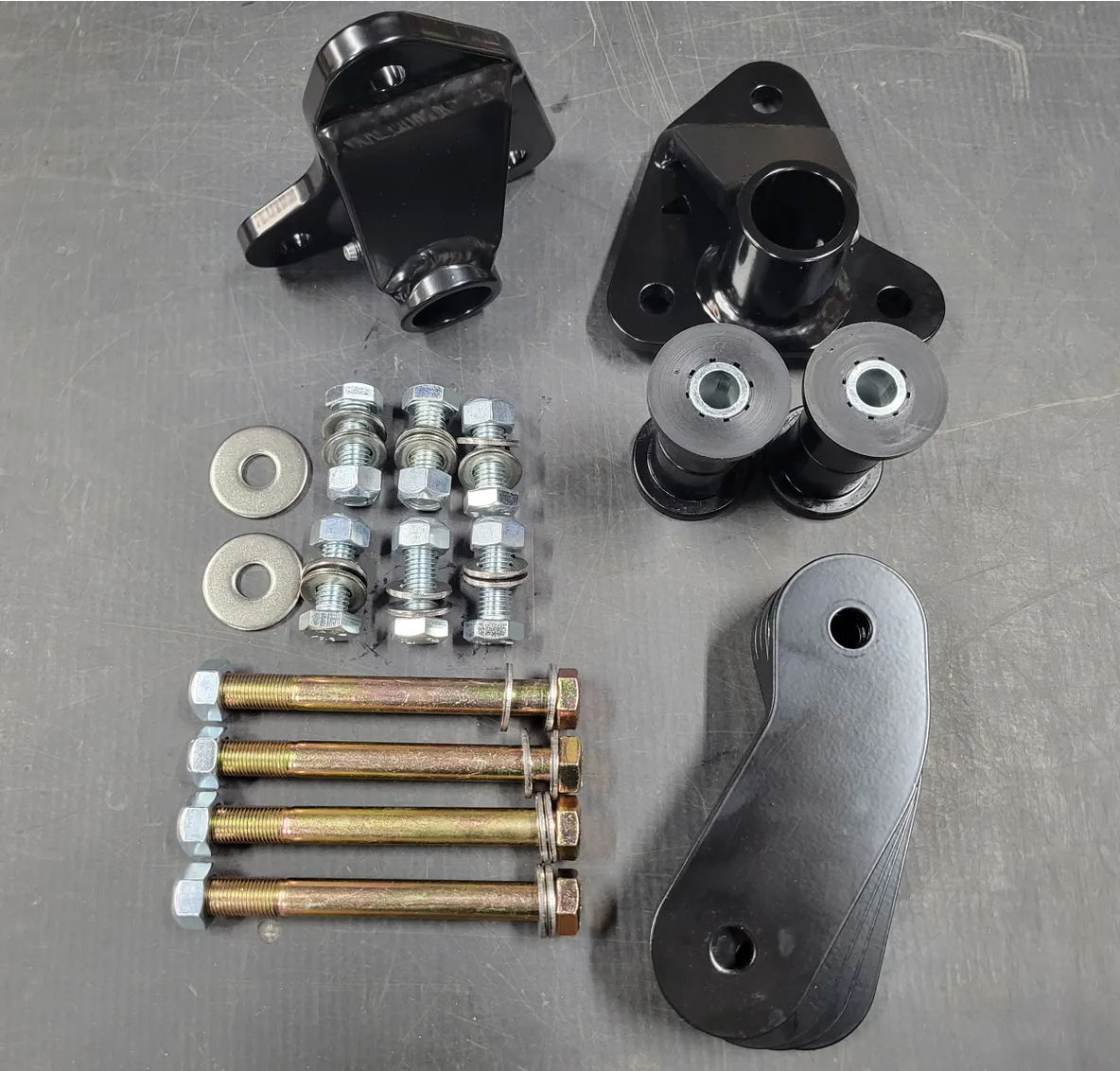

Base Kit Includes:

-Pair of frame shackle mounts (1) LH & (1) RH in 3/8" A36 plate steel.  Grease zerk fitting in DOM tube.  Blasted, primed and Powdercoated black for years of durability.

-Made for 3" wide bushing sleeves for a extra clearance outboard of frame.  1/8" washers supplied for stock outboard spring eye to = 3.00"

-(4) 3/8" thick 4.25" or 5.0" plate shackles with 1/2 or 9/16 or 5/8" holes are optional

-(4) Grade 8 shackle pivot bolts: 1/2", 9/16" or 5/8"  (select size desired, but 1/2" held your truck up for 30 years).

-(6) Grade 8 Frame Bolt options:

  a. 7/16" fit in original holes without drilling (no taking parts off your truck to drill, 7/16" is working great for hundreds of customers)

  b. 1/2" requires drilling, may be difficult to access with drill.

-(4) high quality greaseable poly bushings and (2) tough DOM bolt sleeves (common bushings for future replacement if needed)

-Written instructions provided

Product Fitment Notes

Shipping

FREE Shipping by Priority 2-3 day in 50 States ONLY.

View full details

Customer Reviews

Based on 12 reviews
92%
(11)
8%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Shaun A
Awesome quality

Looks great, packed perfectly

E
Evan C.

I bought this kit and the boomerang shackles for my 92 W250 Cummins truck due to the old shackle bushings being blown out and the spring eye hitting the frame when going over bumps. The kit installed very easily, about and hour, and man was it worth it. The truck rides better with no more creaking and popping when turning/hitting bumps and the front end feels more solid under the truck. I would highly recommend the kit to anyone with one of these trucks.

B
Breakfast T.

Installed these on my 3rd gen Tacoma and could not be happier. Axle wrap is completely gone and rear end feels much more planted. I got a little over an inch of lift on my DCSB 4X4 which is exactly what I wanted. Paired them with the stealth u-bolt flip kit. Bilstein 6112 and 5160's. Ride is much better. Great product and great service!

A
Andy

I used these in combination with the front box hanger, just as easy to install as the front hanger. Very heavy duty and appears to be really durable. The template was straight forward and makes locating all the hole easy, in my opinion it’s a must for a 2 to 4wd conversion!

T
Tyler

I have had these shackle hangers on my 93 cummins for over a year now and they work great. The build quality of these parts is by fat the best.
