1972-1993 Dodge Ram Front Shock Relocation Kit Ramcharger w/ Dana 60 FR axle

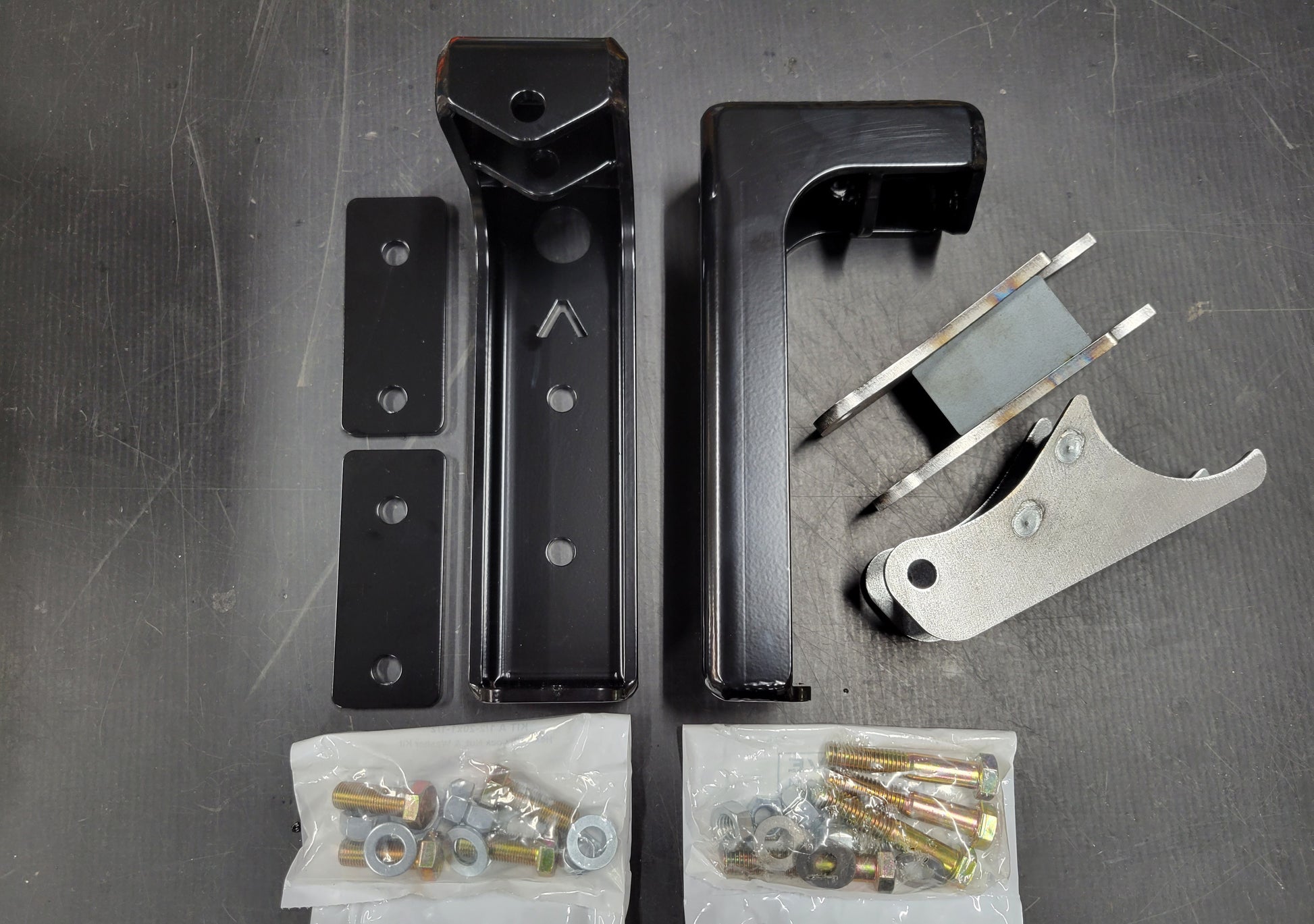

(2) Shock towers w/ double-shear tabs, Bolt-on, 1/4" HSLA steel, primed & powdercoated black
(2) Axle tabs, Weld-on, 1/4" HSLA steel, bare
(2) Frame Backing Plates, 1/4" HSLA steel, primed & powdercoated black
(4) 1/2" Grade 8 Frame bolts
(4) 1/2" Grade 8 Shock bolts
Fits universal shock eye: 1.5" wide w/ 1/2" thru bolt.
Fits collapsed length between: ~15"-19". Allows FULL bump/up travel
Recommended shock: 10.1" travel Fox 2.0" Performance Remote Reservoir
(Res. allows shocks to be Custom Valved for comfort and control!!)
https://accutuneoffroad.com/product/fox-shock-eyelet-ends-2-0-performance-series-remote-reservoir-10-1-travel/
Please email for fitment help
Product Overview
Product Overview
Product Fitment Notes
Product Fitment Notes
| 2005-2023 Tacoma DC/SB | |||
| Leaf Pack | Estimated Lift Amount AG Leafs | Axle-Tube-to-Frame-Bottom | |
| Stock 3/1-stock weight | 0in | 8.25in | |
| Archive MD - 0lbs | 3.25in | 11.5in | |
| Archive MD - 300lbs | 2.5in | 10.75in | |
| Archive MD - 600lbs | 2in | 10.25in | |
| Archive HD - 600lbs | 3in | 11.25in | |
| Archive HD - 1250lbs | 2in | 10.25in | |
| Archive XD - 1250lbs | 3in | 11.25in | |
| Archive XD - 1750lbs | 2.5in | 10.75in | |
|
|||
|
Recommended Shocks (Confirmed Fit & Performance) |
|||
| Shock | Brand | Part Number | |
| Accutune Fox Factory RR 2.5x12 | Fox | 980-02-102 | |
| Accutune Fox Factory RR 2.5x14 | Fox | 980-02-103 | |
| AccuTune Fox Factory RR DSC 2.5x12 | Fox | 980-06-102-SRT | |
| AccuTune Fox Factory RR DSC 2.5x14 | Fox | 980-06-103-SRT | |
| AccuTune King RR 2.5x12 | King | King PR2512-SS | |
| AccuTune King RR 2.5x14 | King | King PR2514-SS | |
| AccuTune King RR 2.5x12 w/ adjuster | King | King PR2512-SS-A | |
| AccuTune King RR 2.5x14 w/ adjuster | King | King PR2514-SS-A | |
| ADS Smooth Body 2.5x12 | ADS | 250-SBR12-W00 | |
| ADS Smooth Body 2.5x12 w/adjuster | ADS | 250-SBR12-WA0 | |
| *If using HD Springs or XD 12in is best | |||
| *For additional options reach out to shock company to confirm with specs below | |||
| Shock Specs Needed | |||
| 2.5" & 3.0" Smooth Body Shock Remote Resi | |||
| Shock Travel | Fittings/Spacers | ||
| 12-14in | Standard rod-end shocks (1.5" wide, 1/2" bolt) | ||
| 2.5" Bypass | |||
| Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order. | |||
| -Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit | |||
| -Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper. | |||
| -We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones. | |||
| Wheel Fitment Needed | |||
| Wheel Backspacing | |||
| 4.75" + 1.25in Spacer or Equivlent Out Board | |||
| Offset Visualizer App | |||
