When setting up your rig, whether it's for off-roading, overlanding, or hauling, it’s crucial to start with the basics: understanding your vehicle's weight limits. This means knowing your Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Ratings (GAWR), and how much your vehicle weighs in stock form. These numbers will help you figure out how much weight you can safely add to your rig without exceeding its limits. Here’s how you can get started.

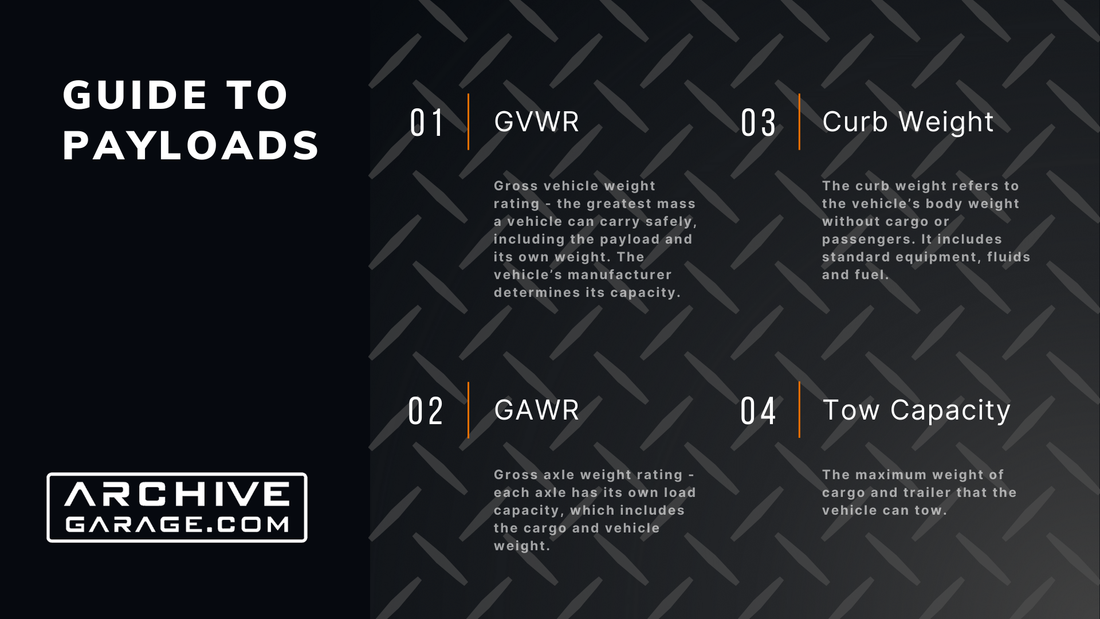

1. Understanding GVWR and GAWR
- GVWR is the maximum total weight your vehicle can handle, including passengers, cargo, and any additional equipment.
- GAWR refers to the maximum weight each axle (front and rear) can support.
You can find these numbers by consulting the sticker in the doorframe of your vehicle, as noted in the photo above. By understanding these limits, you’ll know how much room you have to add gear, modifications, or cargo without damaging your vehicle or compromising safety.
2. Get Your Rig Scaled
Before adding any significant weight to your vehicle, it's vital to know how much your rig weighs in its stock form. Head to a local scale and get an accurate reading. This allows you to calculate your actual payload, which might be different from what the sticker claims. To get your payload, you subtract the stock weight from the GVWR. For example:
- 2022+ Tundra CrewMax 6.5’ has a GVWR of 7,340 lbs. While the payload sticker says 1,355 lbs, the real-world stock weight is closer to 5,700 lbs, meaning your true payload could be around 1,640 lbs.
- If you overload this truck up to 8,000 lbs, that’s about 9% over GVWR—a manageable but potentially risky load.
3. Avoid Overloading Your Rig
Overloading your truck can lead to serious issues, from suspension damage to tire blowouts. Many owners, especially of smaller trucks like the Tacoma, often overload their rigs unknowingly. Let’s look at some examples:
- Tacoma’s GVWR is around 5,600 lbs, and stock weight is about 4,400 lbs. This leaves around 1,100 - 1,200 lbs of payload.
- A Tacoma weighing 7,500 – 8,000 lbs is between 35% and 43% over GVWR. This is well beyond safe limits and enters "break stuff territory."
The same principles apply to other mid-size trucks like the Colorado, Frontier, and Ranger. Always be mindful of how much weight you’re adding, and consider each truck’s stock limitations before overloading.
Even heavy-duty trucks like the 2017-2024 Ford Super Duty F-250 with a GVWR of ~10,000 lbs can be overloaded. A loaded rig weighing 12,000 lbs is 20% over GVWR, which, while more manageable than mid-size trucks, can still lead to mechanical failures or reduced performance.
4. Weight Distribution Matters
Where you put weight in your vehicle is just as important as how much weight you add. Poor weight distribution can cause handling problems, uneven tire wear, and stress on your suspension. Here are some important tips:
- Rock sliders: About 50% of the weight typically shifts to the rear axle. For a set of sliders weighing 150 lbs, that’s an additional 75 lbs on the rear axle.
- Swing-out bumpers: These are even more rear-axle heavy, with around 125% of their weight going to the rear. So, a bumper weighing 300 lbs feels more like 375 lbs to your rear springs and axle.
- Wedge or slide-in campers: Always ask the manufacturer for the Center of Gravity (CoG) location, and place heavier items low and forward in the vehicle. This will help maintain good balance and avoid putting too much stress on the rear axle.
5. Storage Tips: Keep Weight Low and Forward
One of the most important rules in rig setup is to keep heavy items, like water, as low and as far forward as possible, ideally in front of the rear axle. Water is extremely heavy, so placing it in a poor location can throw off your vehicle’s balance. Similarly, avoid overloading roof racks, as this can raise your center of gravity, making your vehicle more prone to tipping on rough terrain.
Conclusion
Setting up your rig is about more than just adding cool gear and equipment. It’s essential to know your vehicle’s limits, understand the importance of weight distribution, and avoid overloading. Always get your rig scaled to know its true weight and stay within GVWR and GAWR limits. By being mindful of these factors, you’ll improve your vehicle’s performance, safety, and longevity, whether you’re hitting the trails or hauling gear across the country.
